DOCK LEVELLERS

A range of heavy-duty dock levellers supplied as modular pod units to bolt on to your warehouse front

OUR MODULAR DOCK LEVELLERS

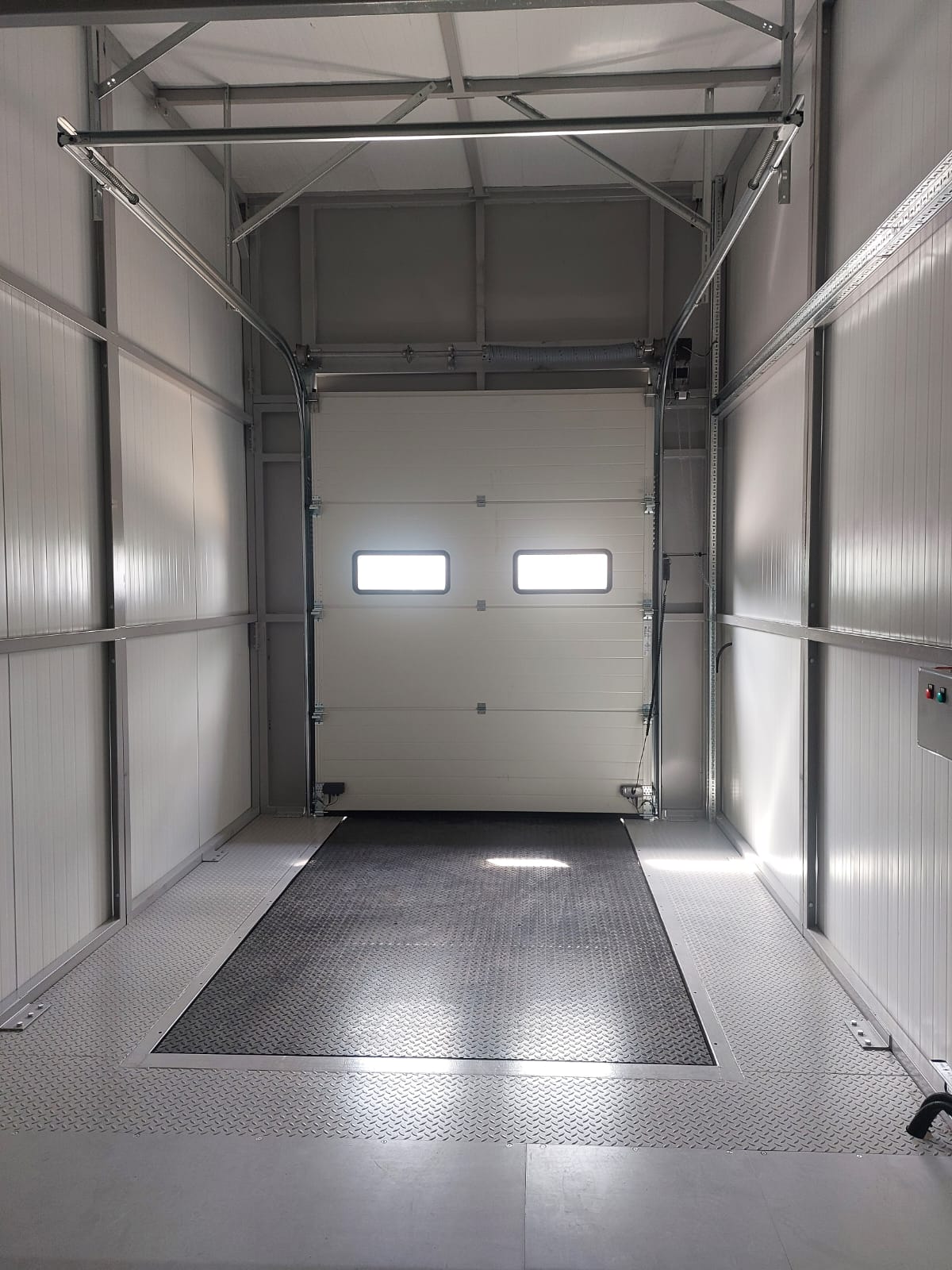

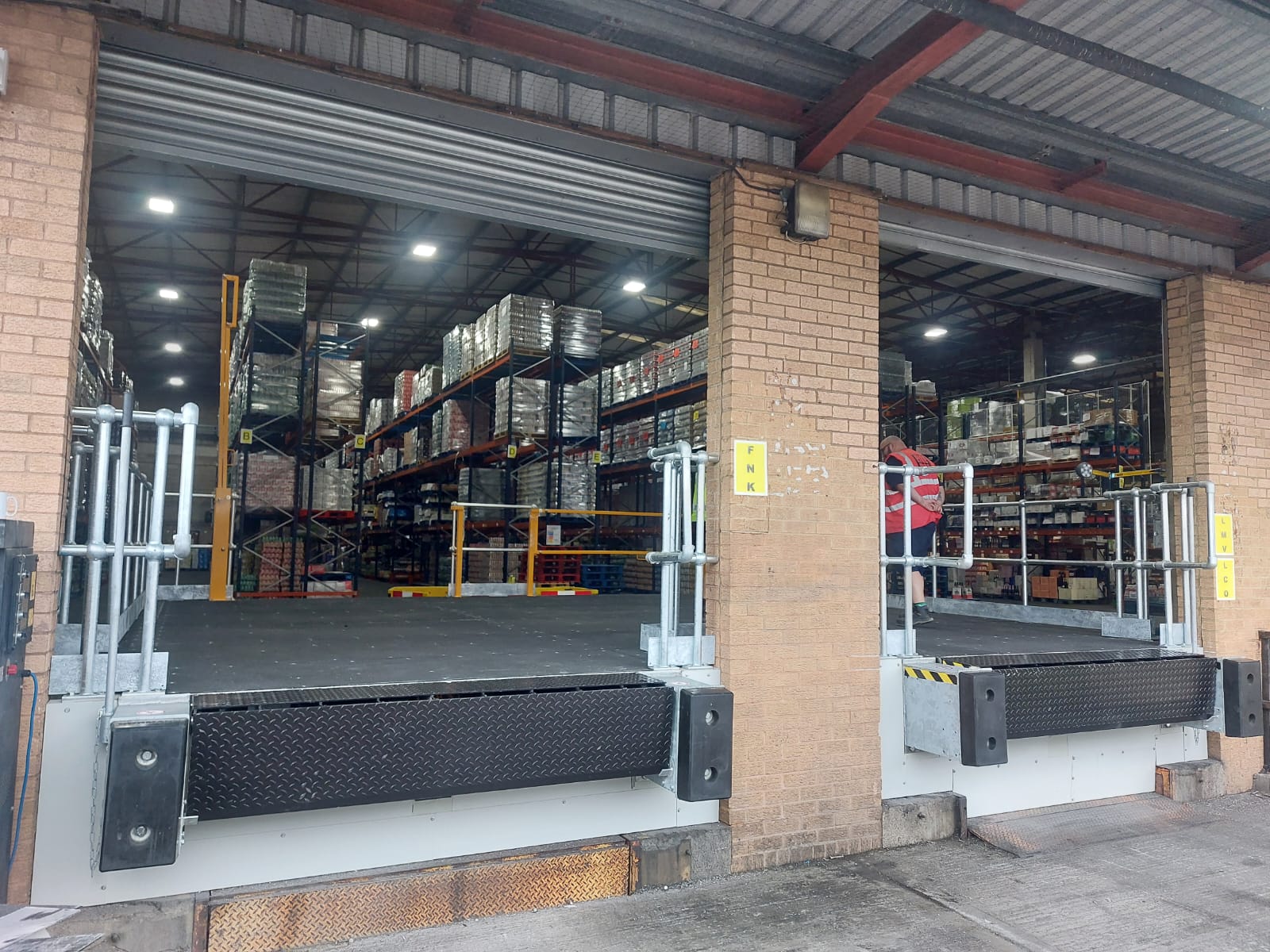

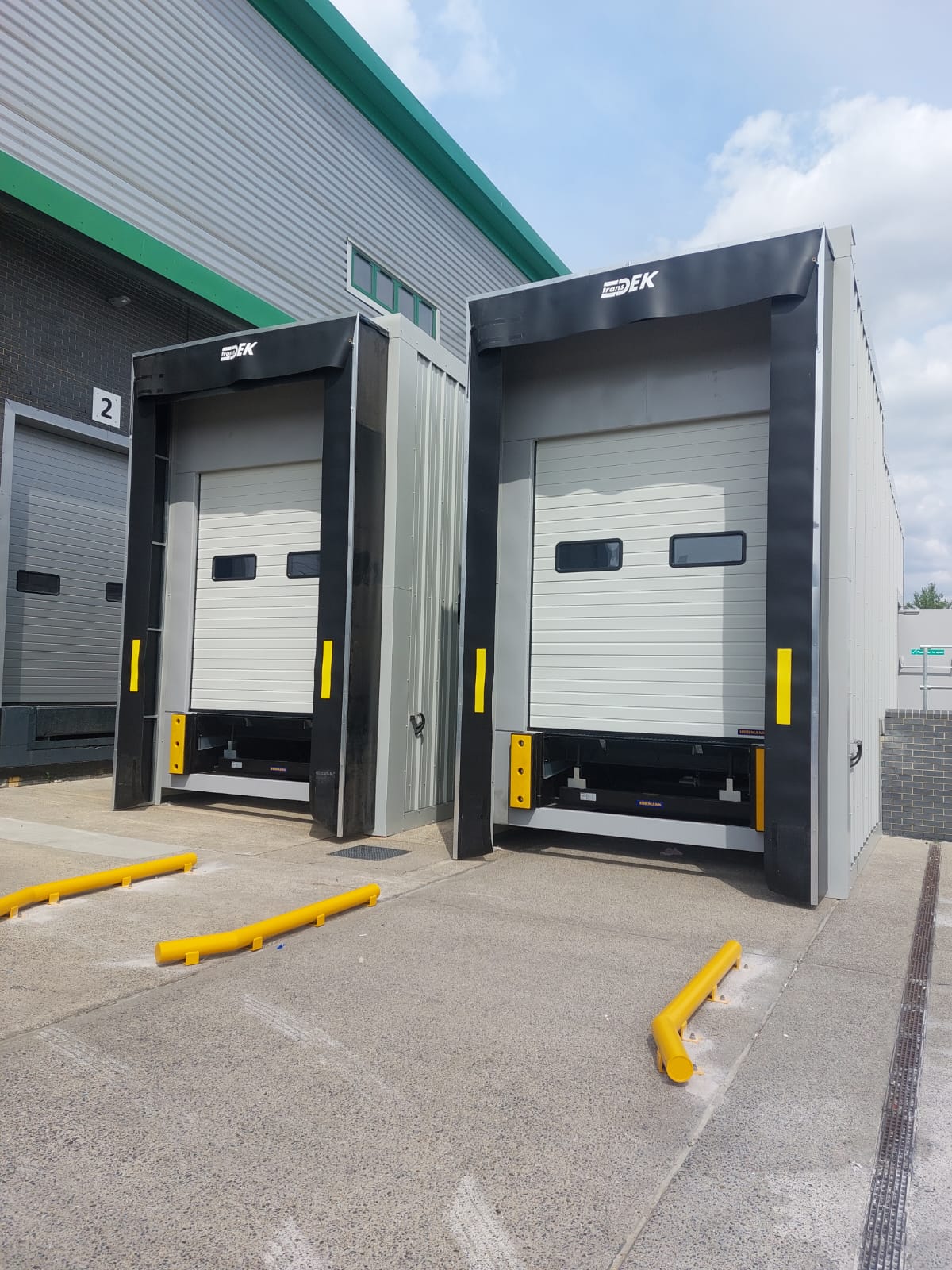

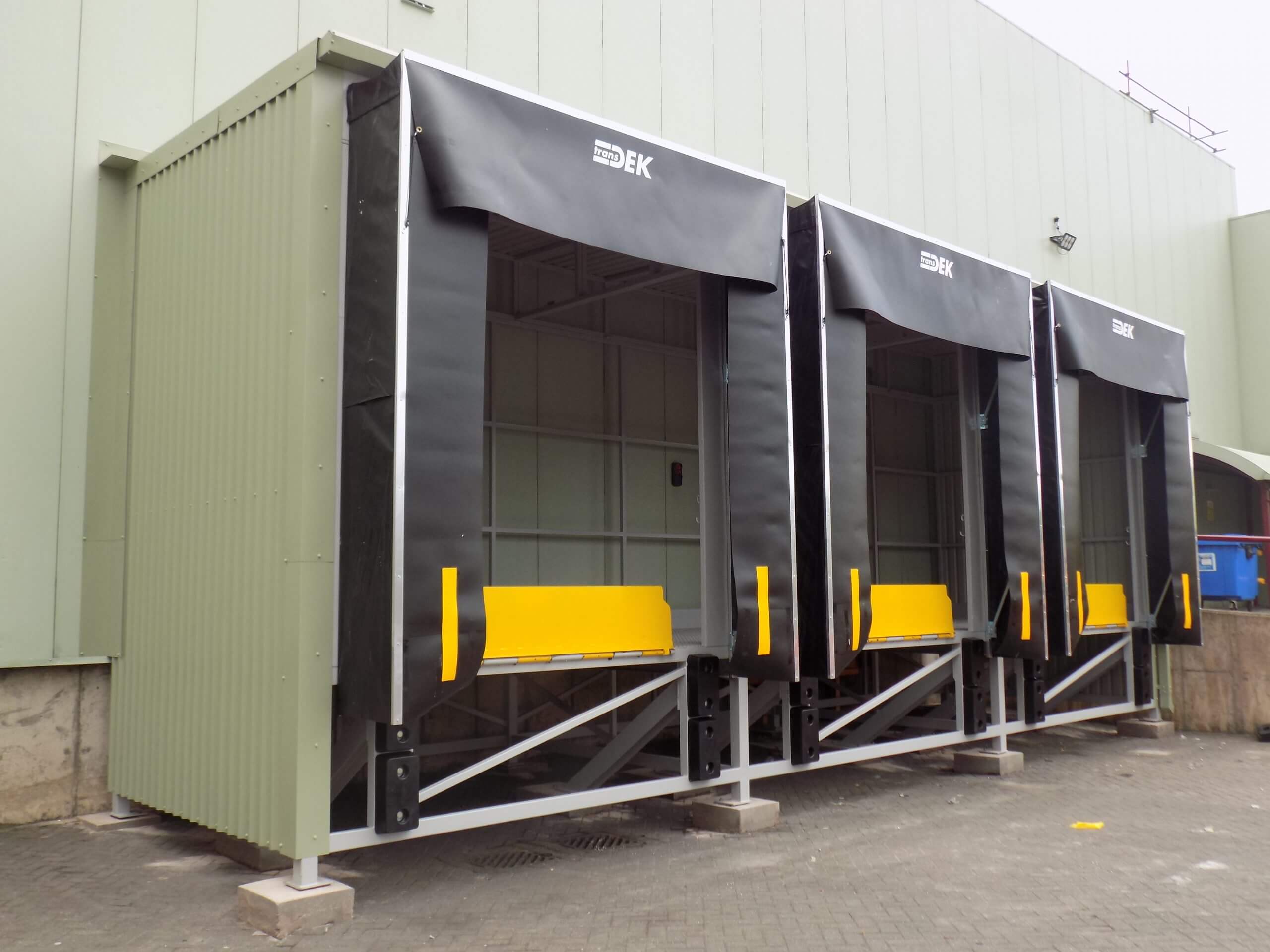

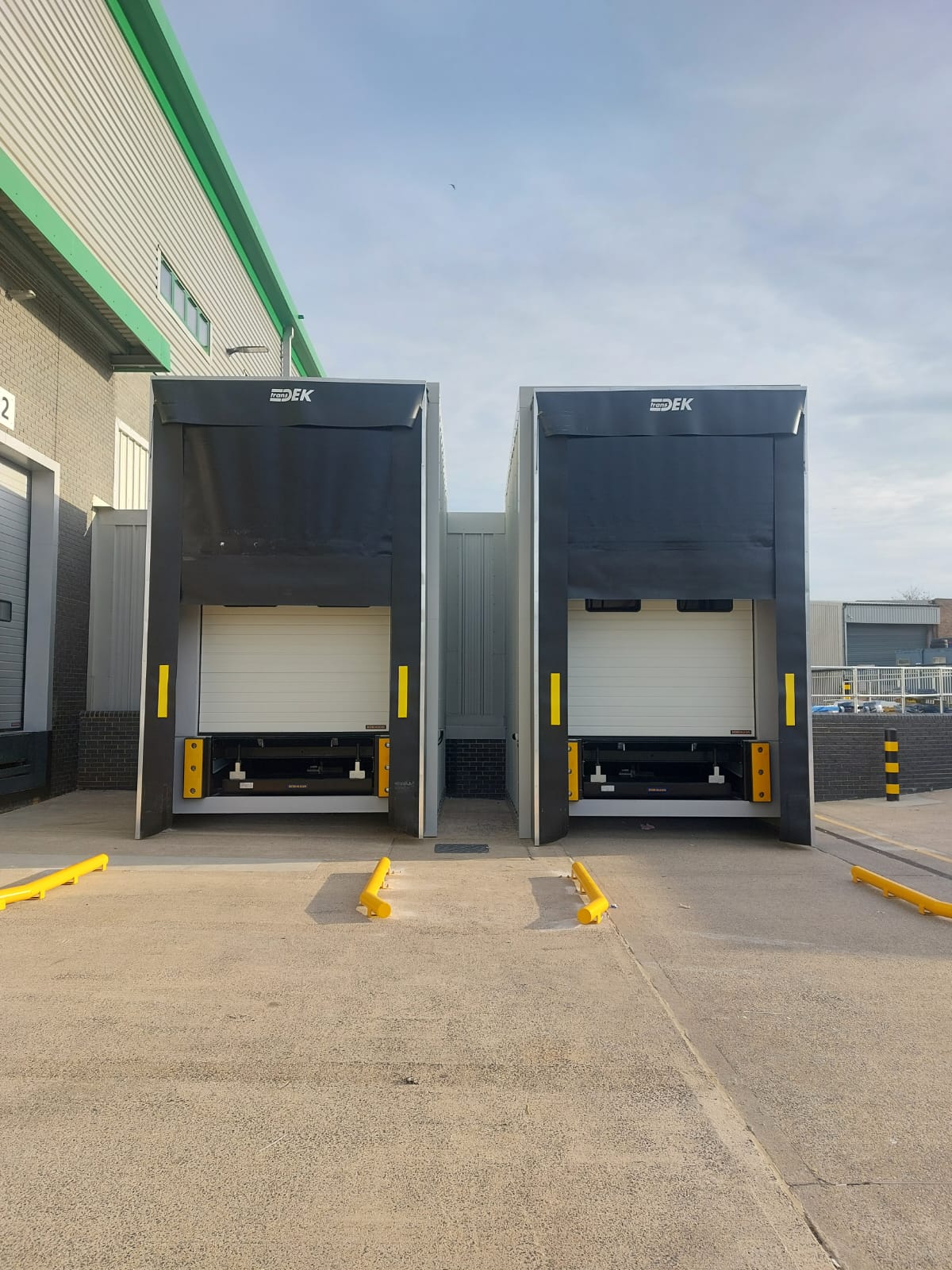

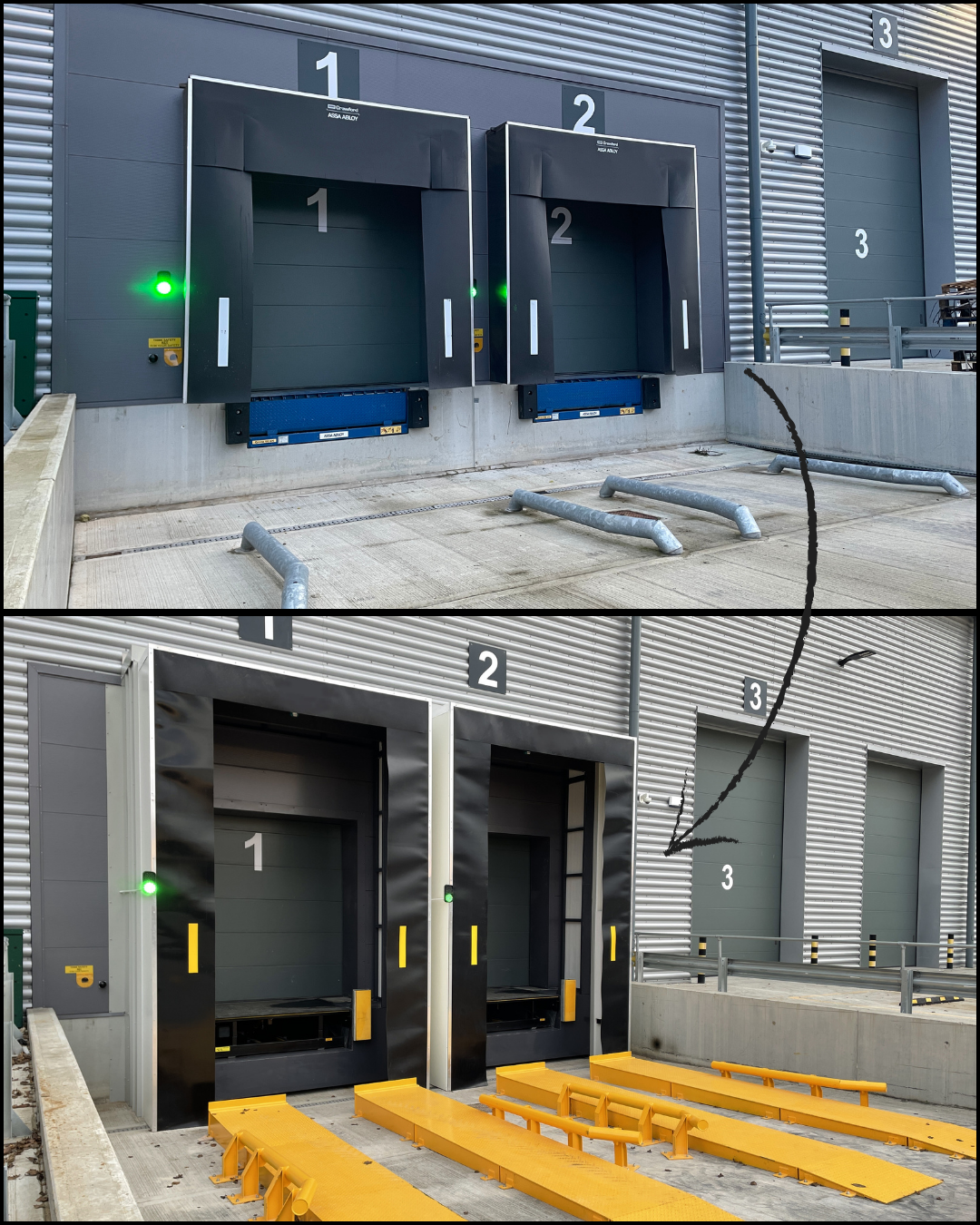

We offer a range of dock leveller pods that can be installed straight on to the front of your warehouse – for the rugged, safe and efficient loading of variable vehicle heights. Each loadhouse is supplied as a plug-and-play unit with options for fully-integrated doors, traffic lights and dock lights.

Fitted in less than half-a-day, our dock leveller loadhouses maximise space availability in your warehouses (compared to inset dock levellers). They are designed in full conformity with EN1398:2006 standards and manufactured to exceptional engineering standards.

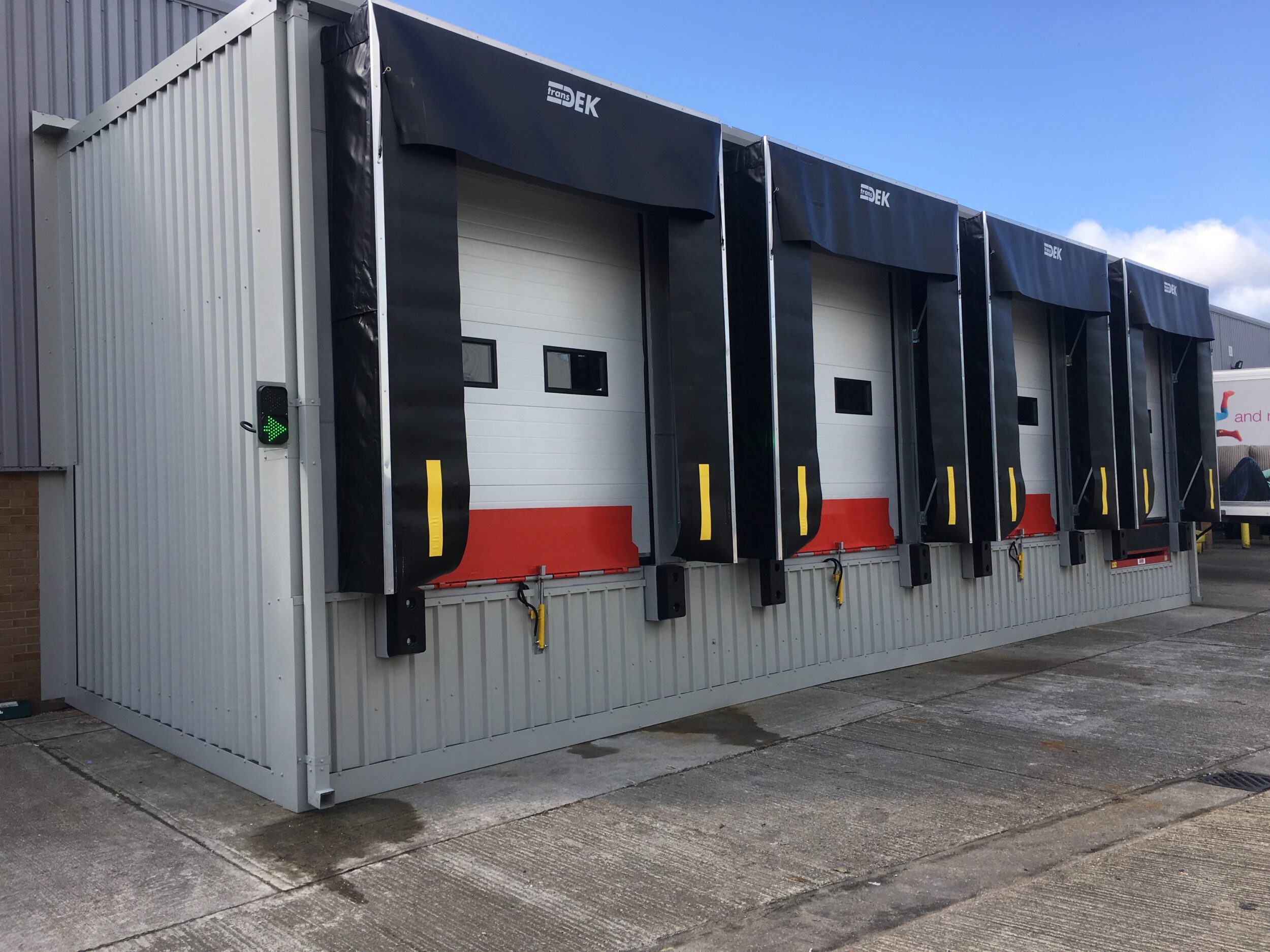

Our dock levellers service a range of goods vehicles, typically up to ±300mm either side of dock height. Platform lengths are designed to suit requirements; standard specification allows for a 6000kg SWL. Where multiple loading bays require loadhouse installations, we can also offer you a multi-pod option that has the benefits of reducing costs and installation times.

ENQUIRE NOW

WHY TRANSDEK’S DOCK LIFTS?

RAPID-INSTALL

Surface-mounted, plug-and-play units; rapid-install ½ day per unit; easily relocated

ENGINEERING STRENGTH

Rugged machines built in the UK to give you a lifetime of reliable, heavy-duty operation

MODULAR

Plug-and-play pods supplied ready for operation – with fully integrated door, loading lamp traffic light options

SAFETY

CE-marked, built to conform to EN1398:2006 and Machinery Directive 2006/42/EC

SPACE-SAVING

Creates additional marshalling and storage space in your warehouse

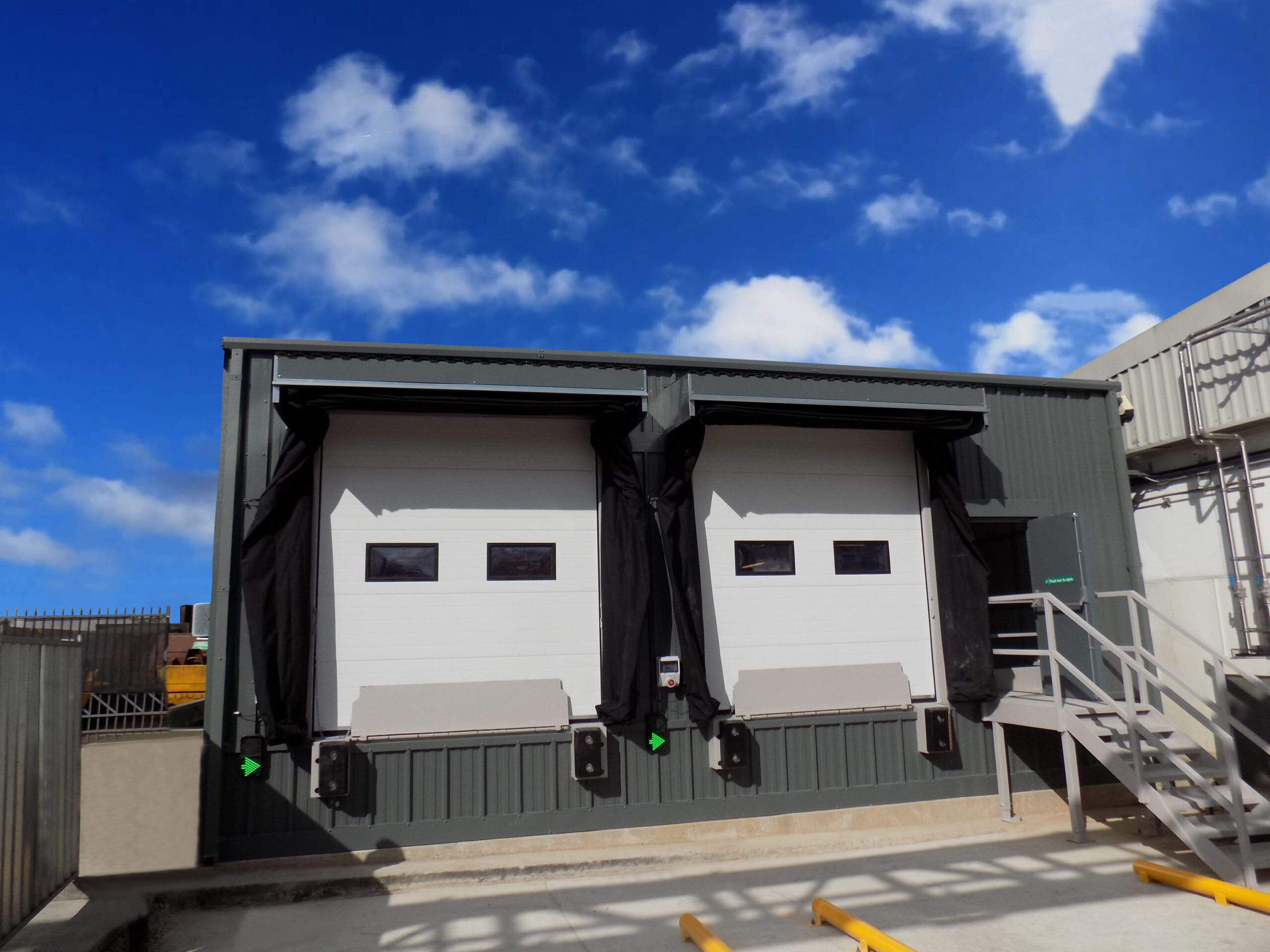

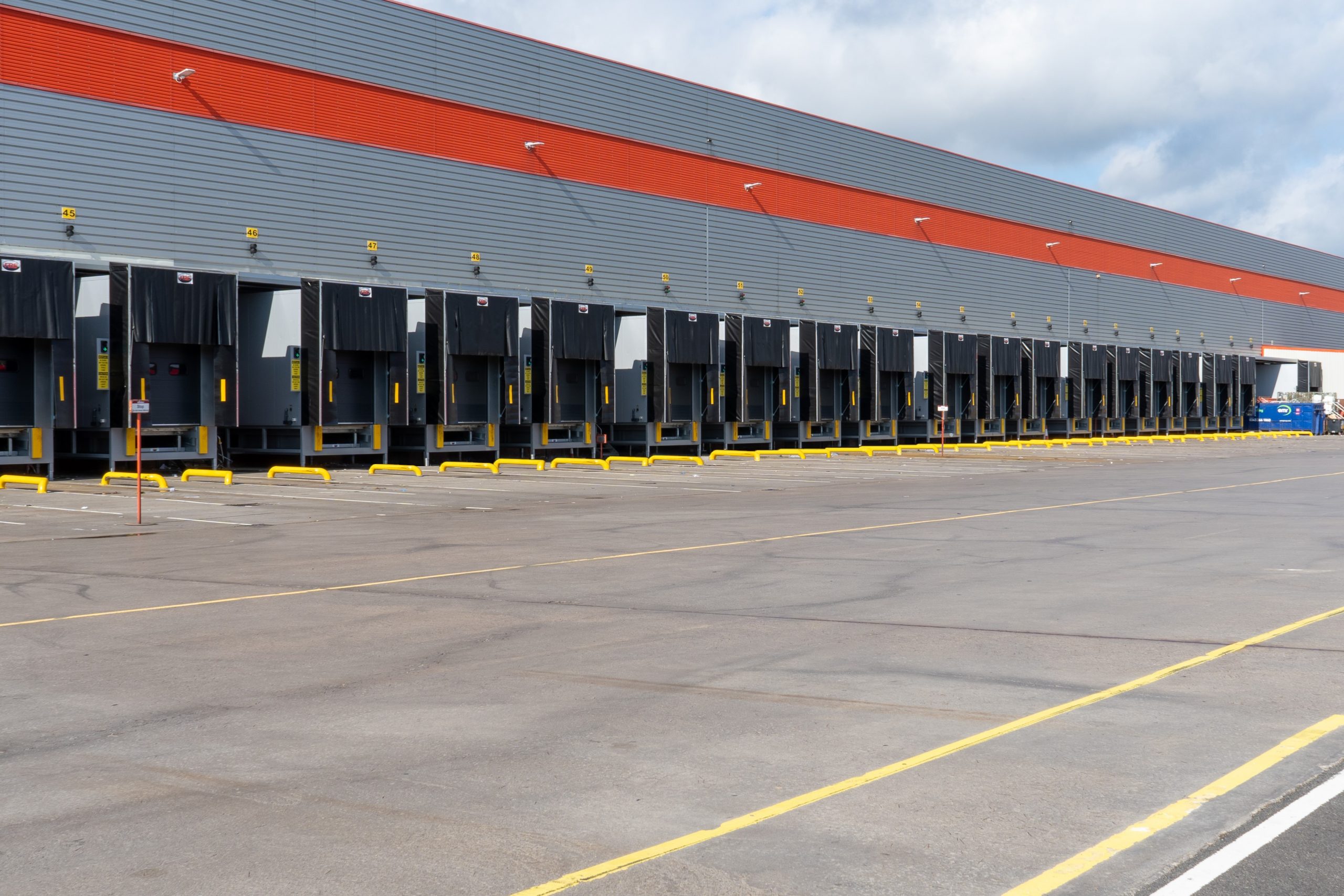

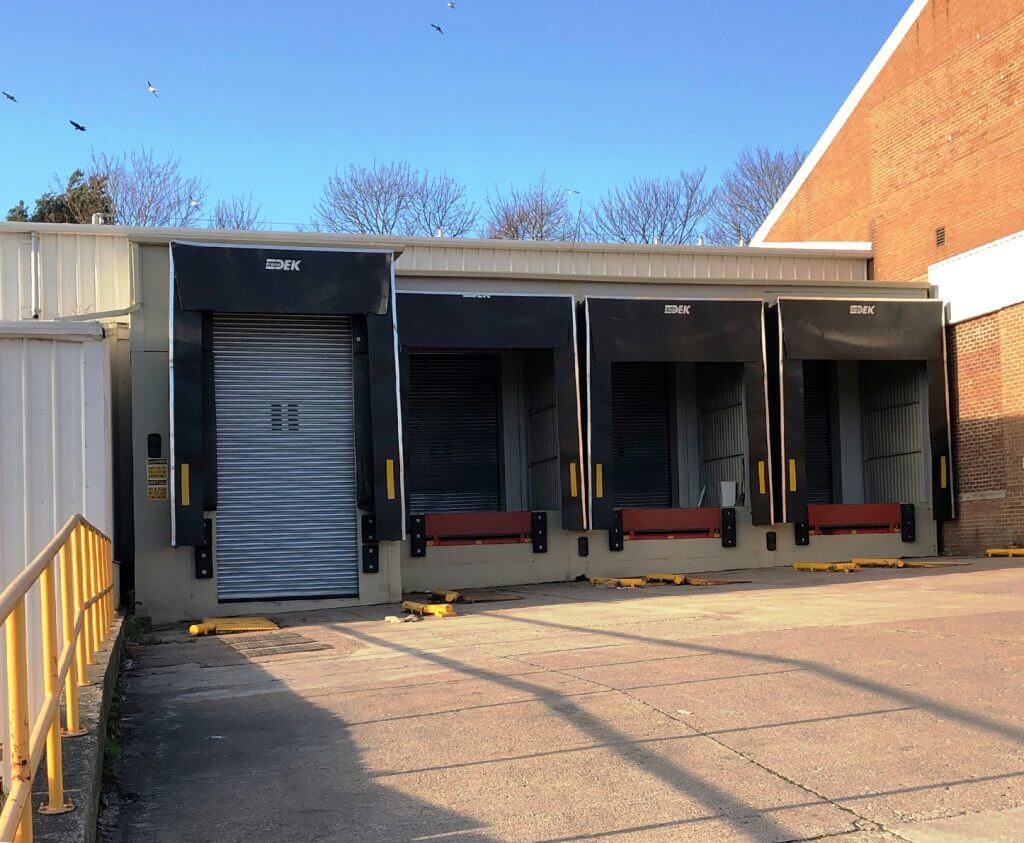

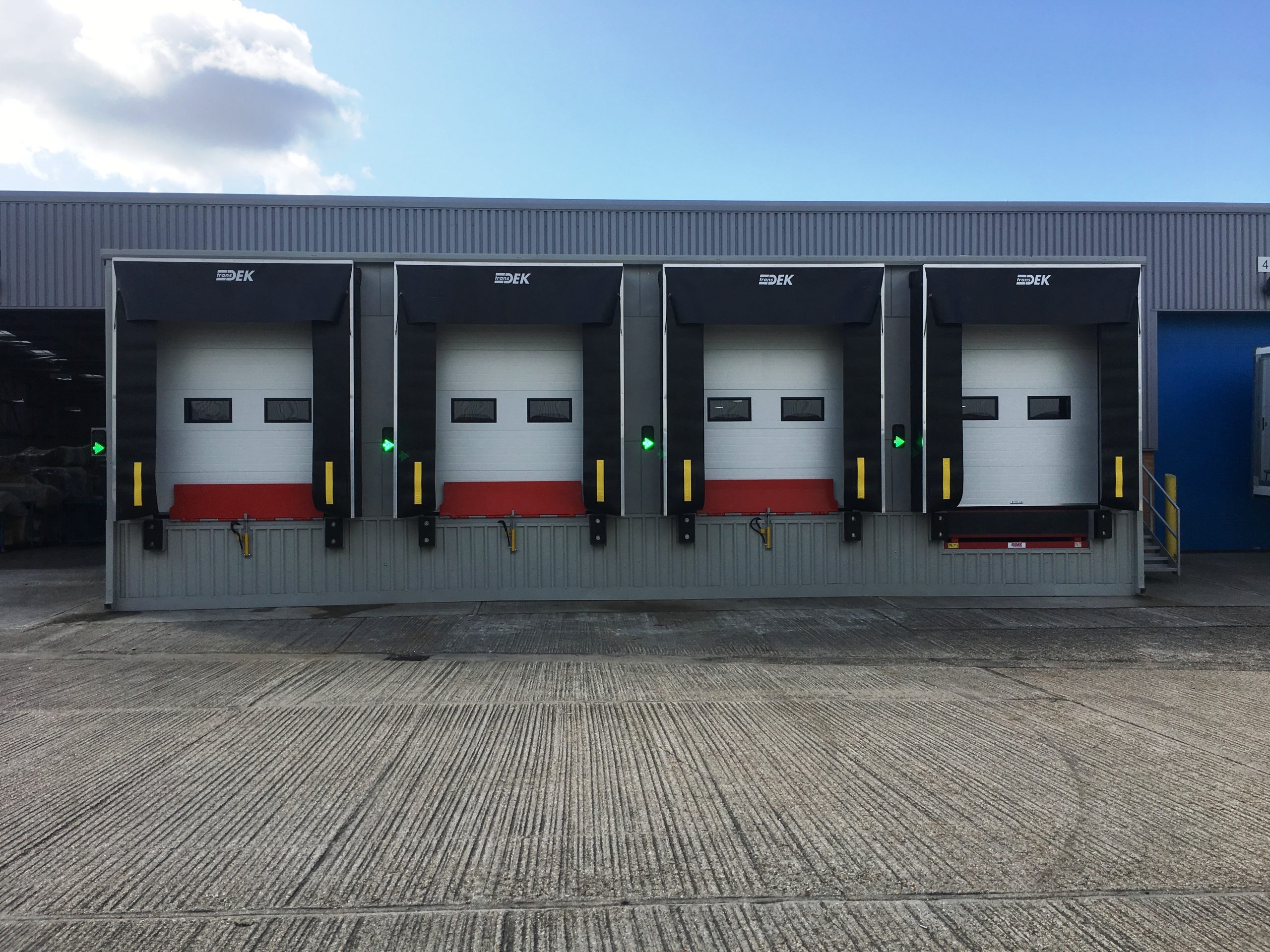

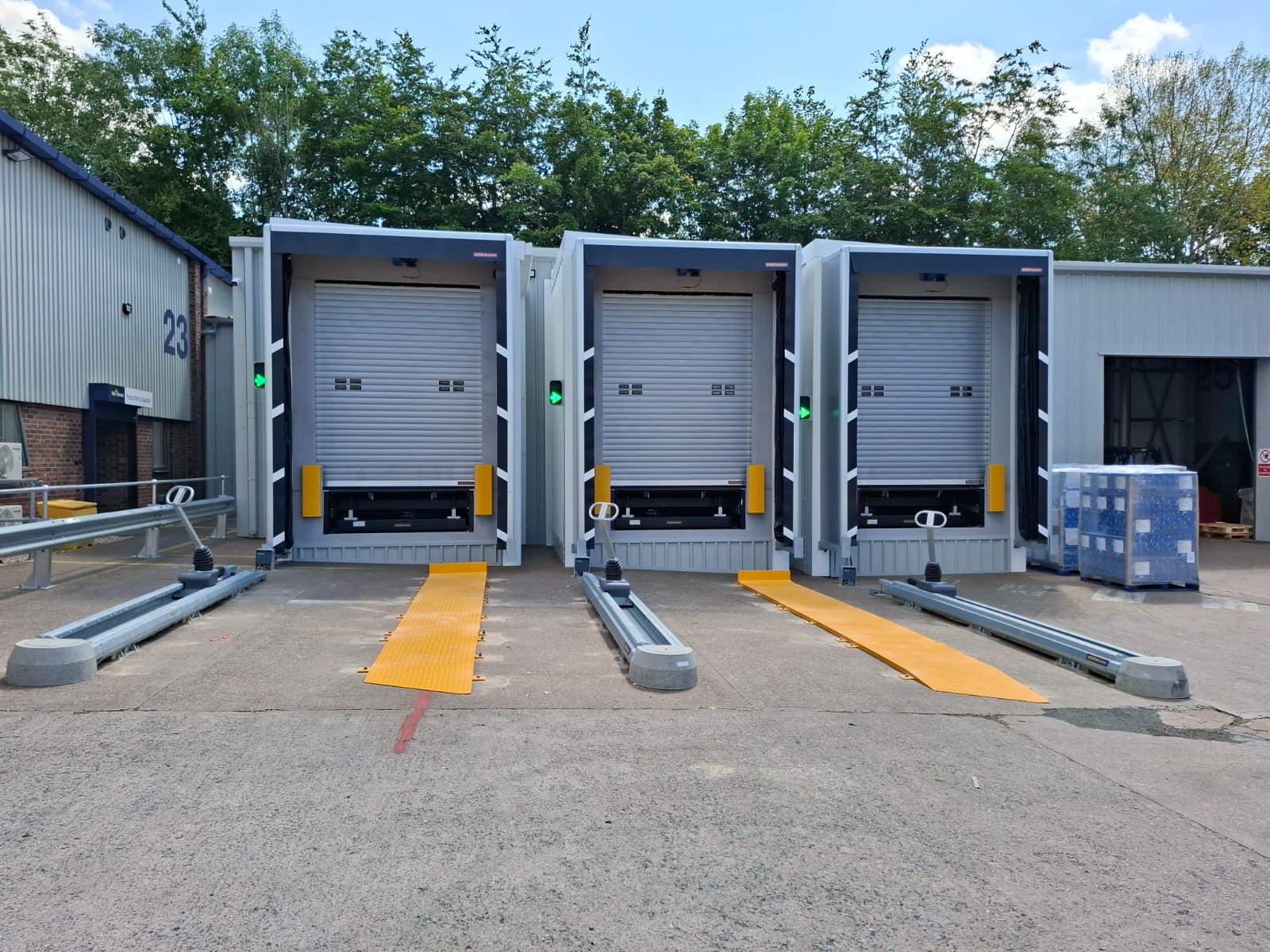

MULTI-DOCK OPTION

Expand loading capacity from single dock to multiple bays

DOCK LEVELLER RANGE

Platform Length

2480mm – 3100mm

Platform Width

1800mm minimum – to suit your requirement

Lip Length

500mm swing-type standard
300mm/500mm/1000mm telescopic-type

SWL Capacity

6000kg

Operating Range

+-300mm either side of dock

Unit Depth

590mm – 610mm variable

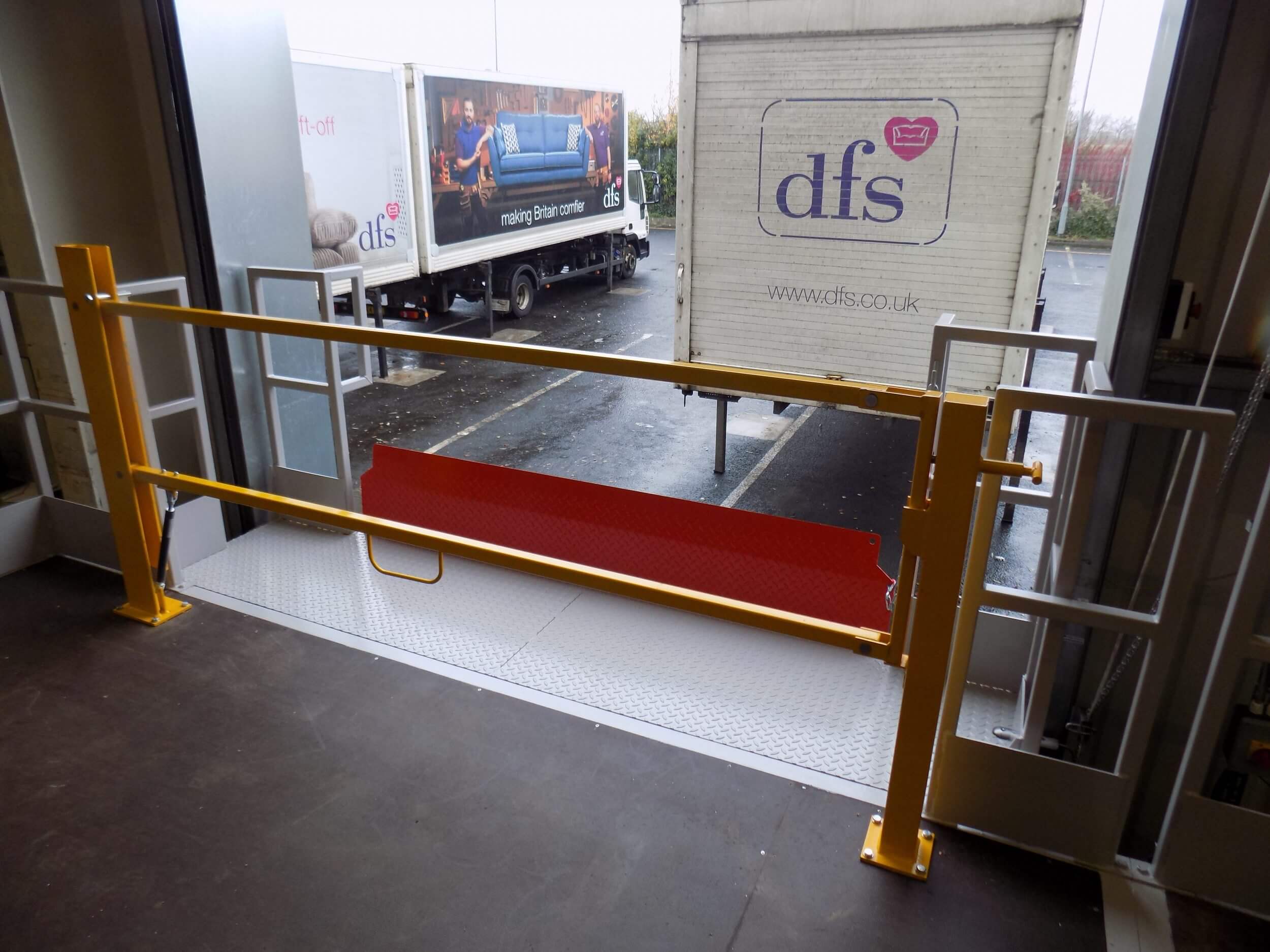

EDGE-OF-DOCK LEVELLER

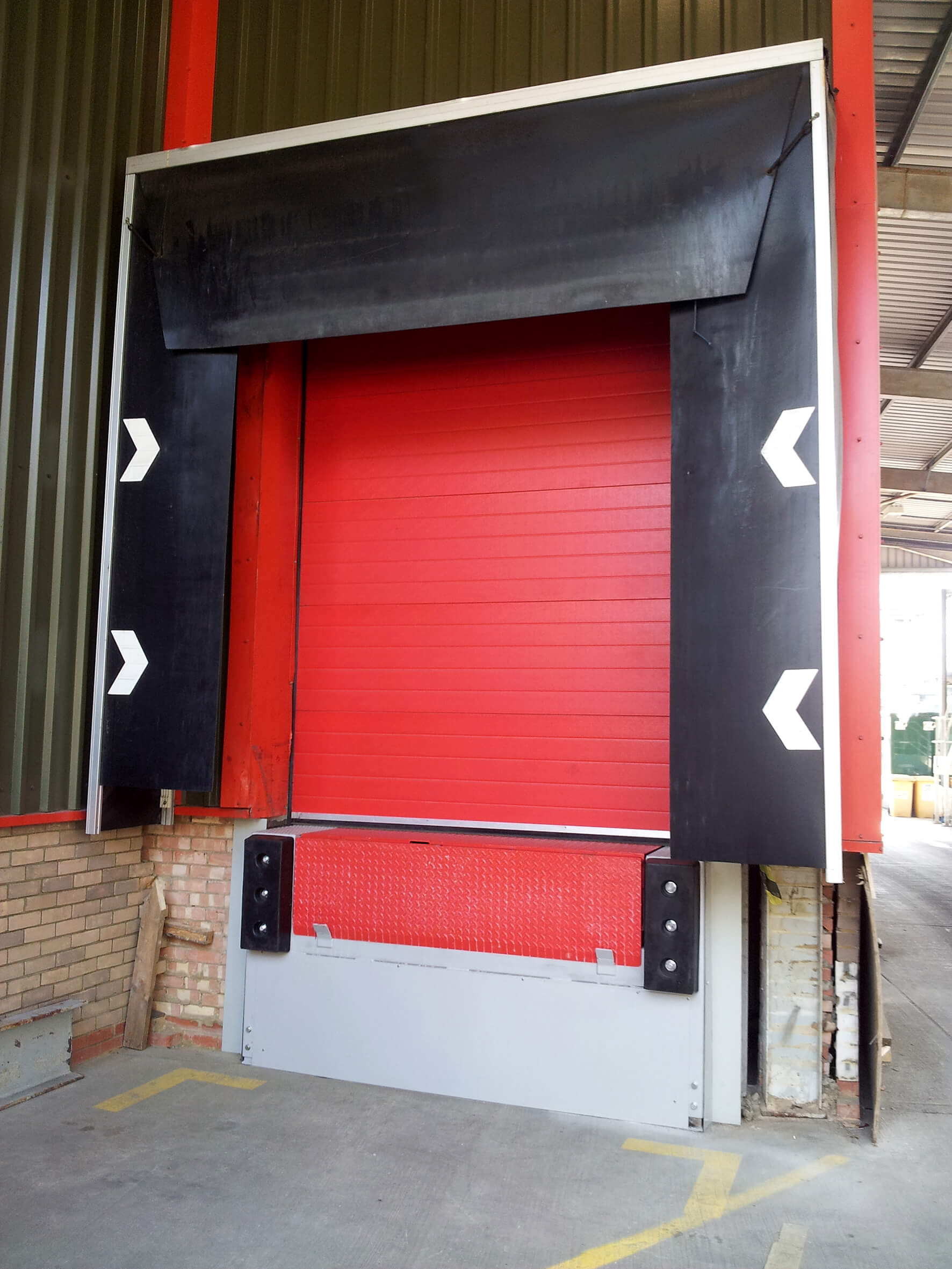

As a cost-effective alternative to full-length dock levellers, we can also offer you edge-of-dock levellers. Hydraulically-operated via a single-push button, the two-section lip ‘unfolds’ across to the deck of a waiting goods vehicle.

Our edge-of-dock levellers are supplied with dock bumpers fitted to either side, which stop vehicles at the correct distance from the dock. The equipment is fitted directly to the face of the loading bay and does not require a cut-out.

The lip is 700mm long when deployed and provides a 6000kg SWL bridge across to variable goods vehicle heights.

TURNKEY PROJECT MANAGEMENT

Alongside our loading bay products, we offer a close working partnership to ensure you get exactly the right solutions to maximise safety and efficiency at each of your bays and sites, and across your entire distribution network.

We provide a one-stop shop that, depending on your loading bay needs, includes: consulting with your loaders, drivers, architects and managers; conducting site surveys and feasibility studies; submitting multiple CAD design options; loading compatibility trials; and customising your products.

Finally, our dedicated project management team will oversee each stage of in-house manufacture and installation, before training your team, commissioning the products and handing over the keys.

Find out More

FINANCE & RENTAL

We are able to provide a range of finance options for our customers, as an alternative to outright capital purchase. This flexibility makes the many benefits of our modular loading bay solutions even more accessible.

Bespoke finance packages can be arranged by our in-house finance team or via your preferred finance partner. We work with all major leasing providers, to offer equipment on:

Hire purchase, finance lease or short/long term operating lease.

CONTACT US

DOCK LEVELLER ANCILLARIES & OPTIONS

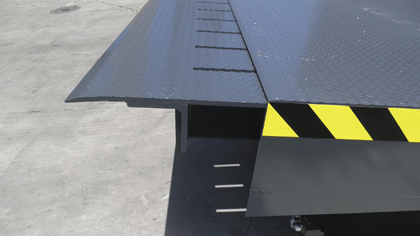

Telescopic Lip

Bridges larger gaps to vehicles

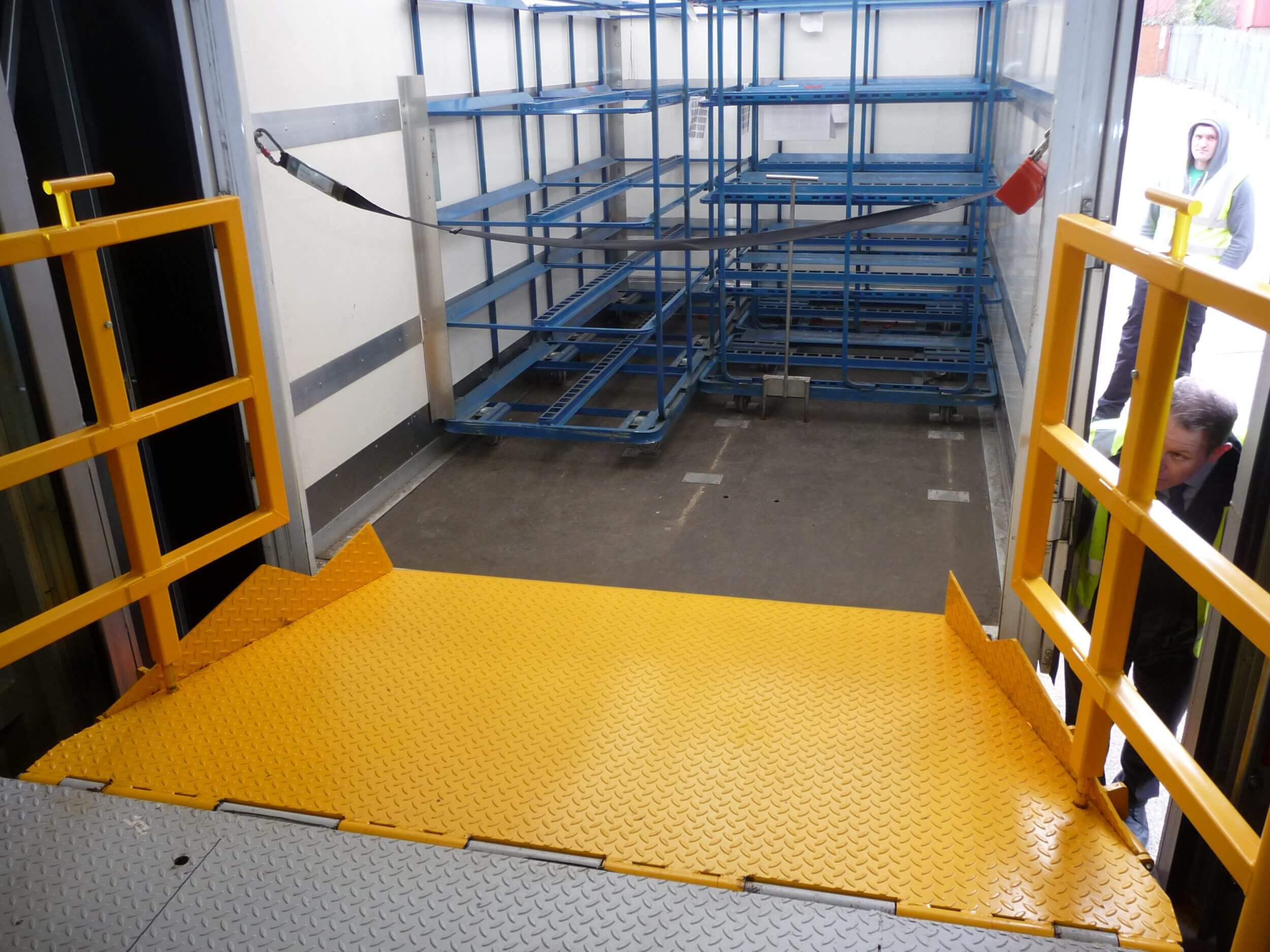

Vandango Bridge Plate

Flexible loading vans-to-artics

Traffic Lights

24V directional LED lights

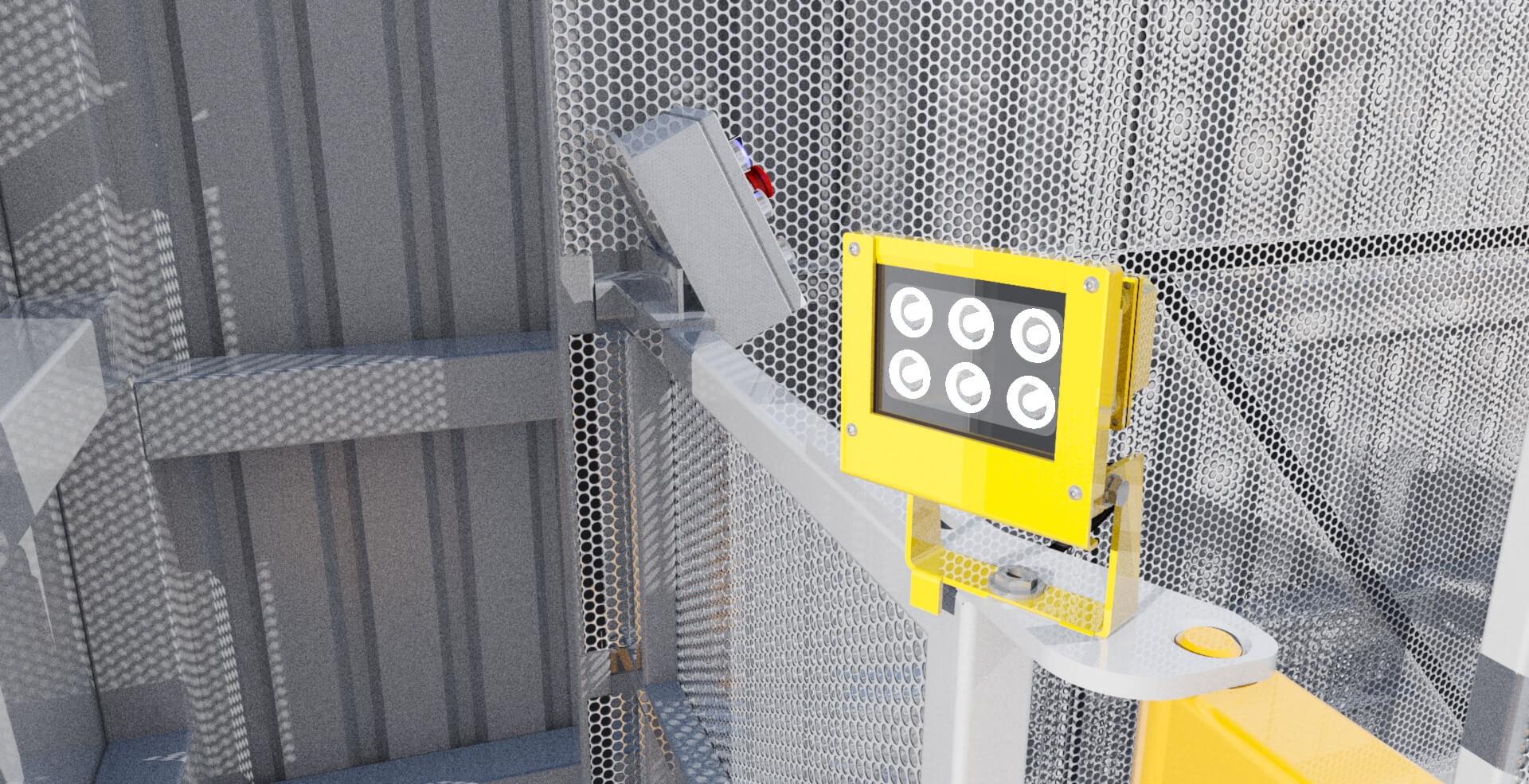

Loading Lamp

24V LED lighting for load area

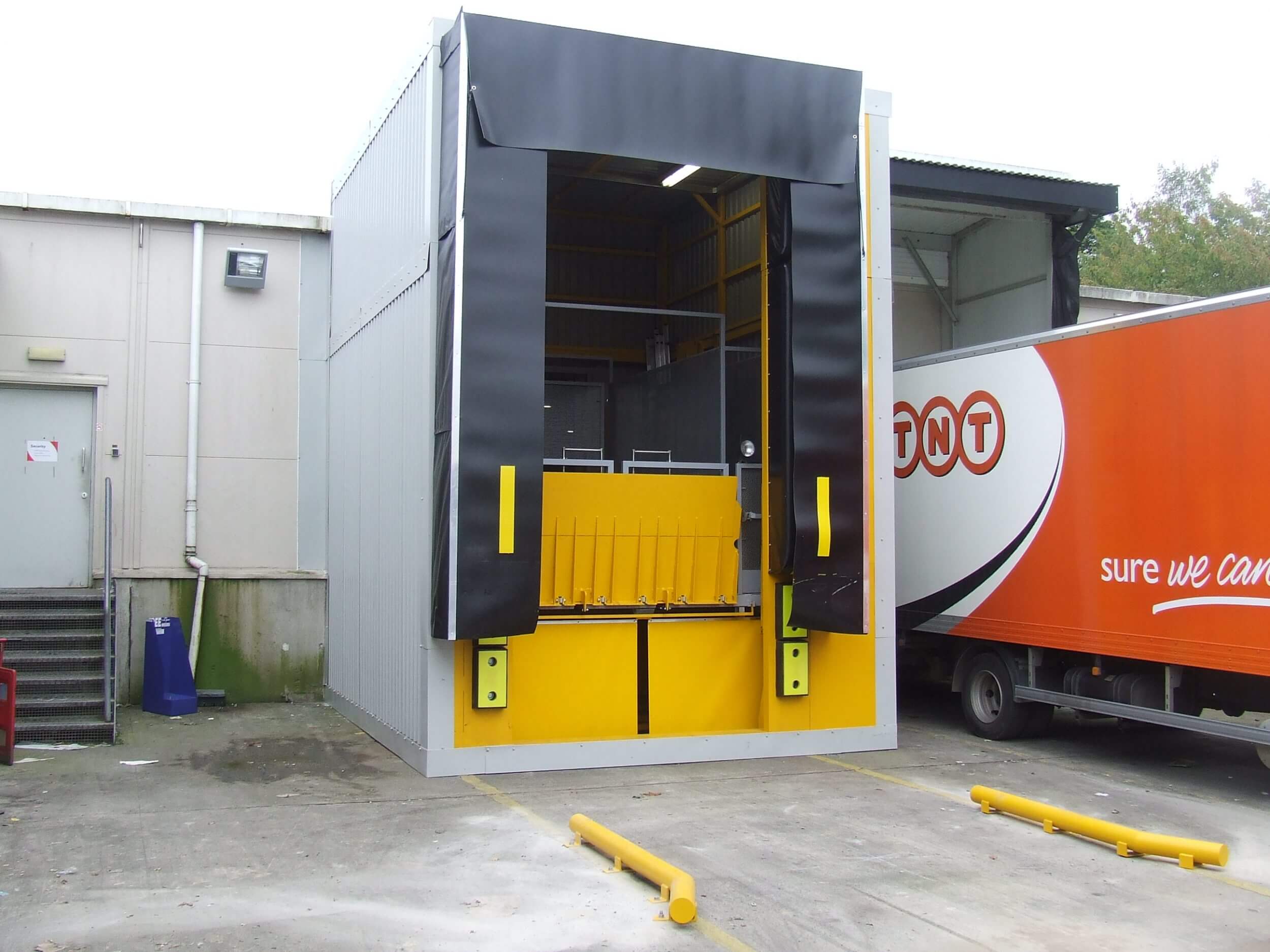

Wheel Guides

Aligns vehicles on dock

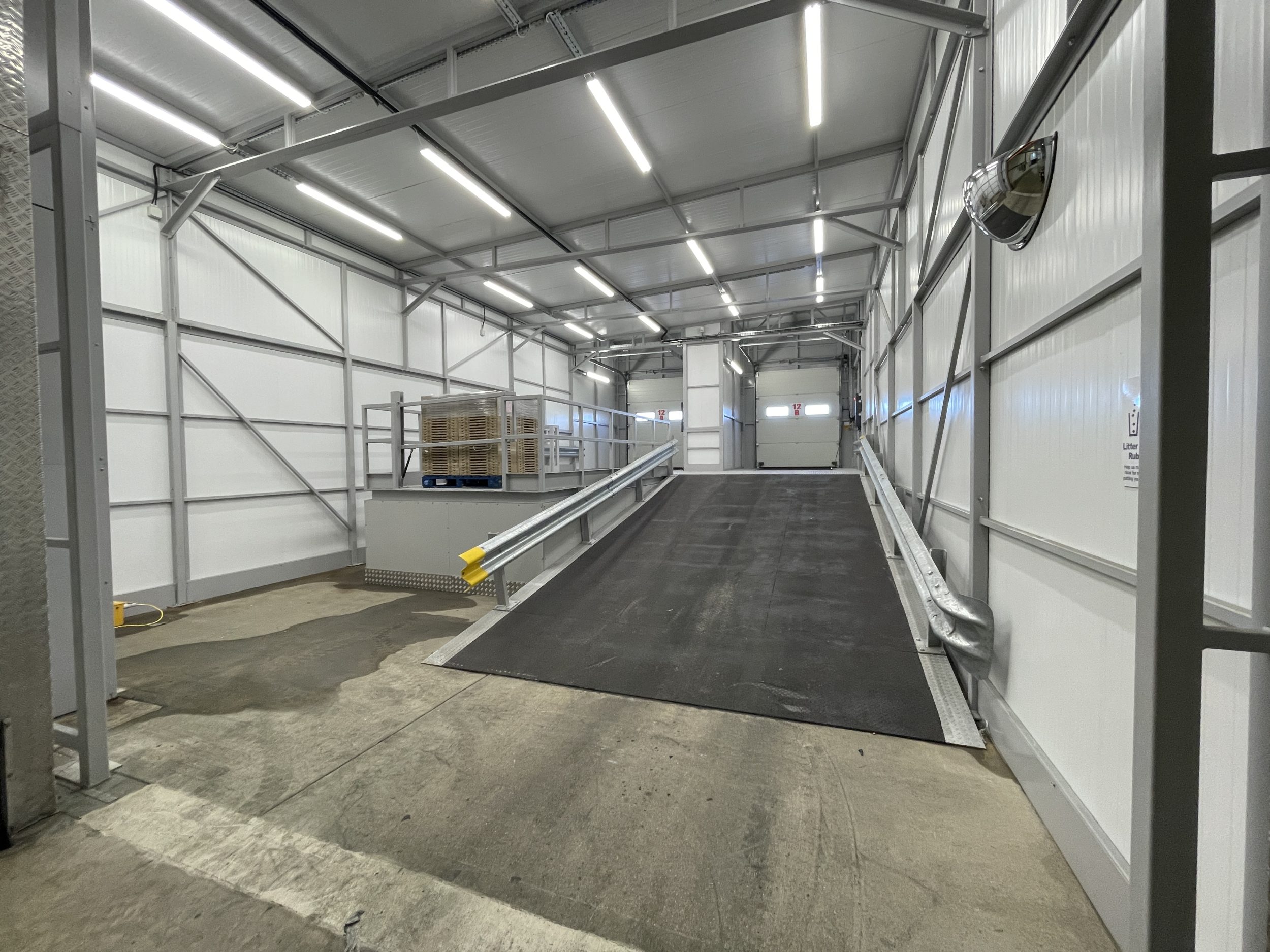

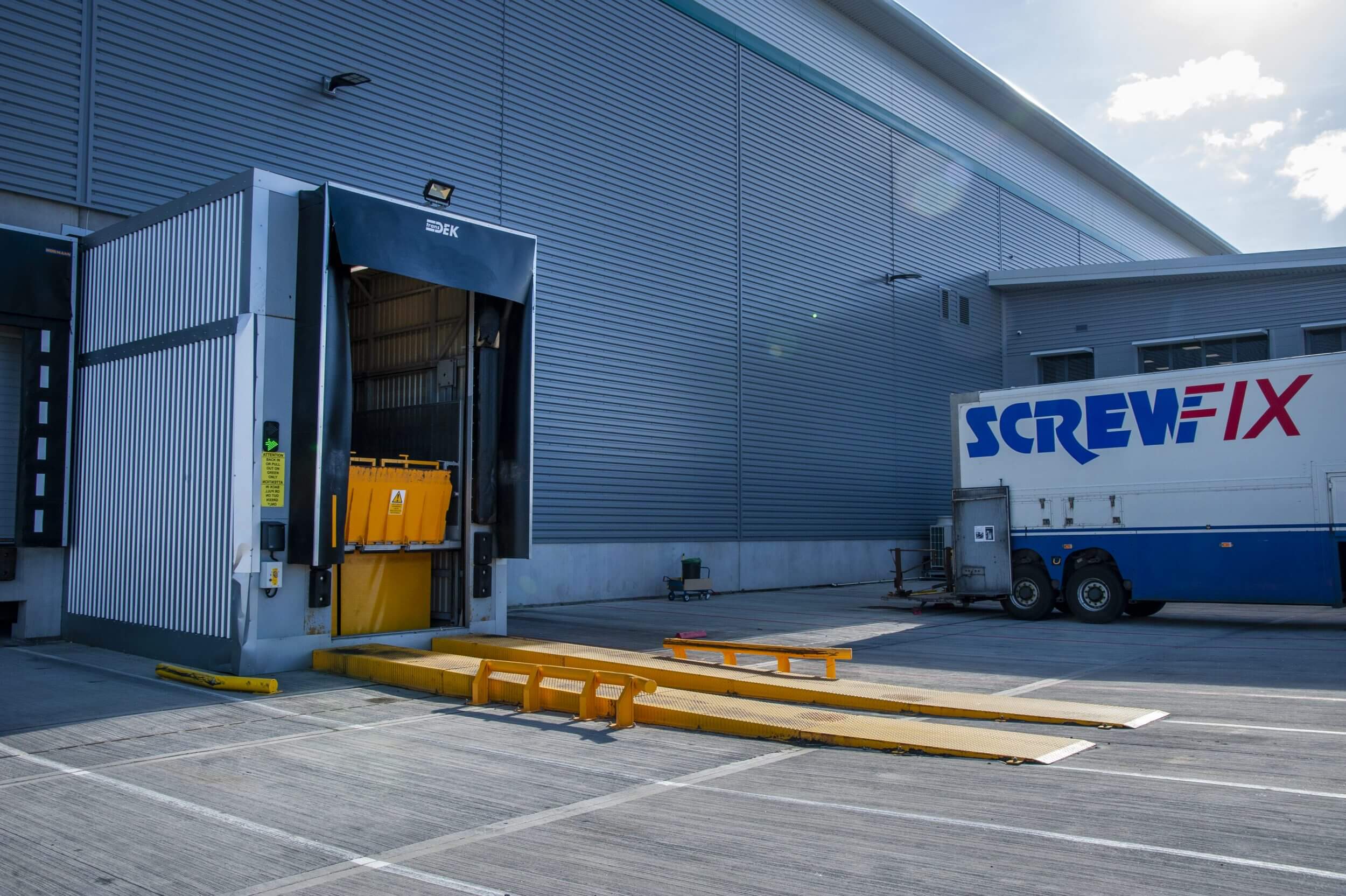

Vehicle Ramps

Accommodates yard gradients

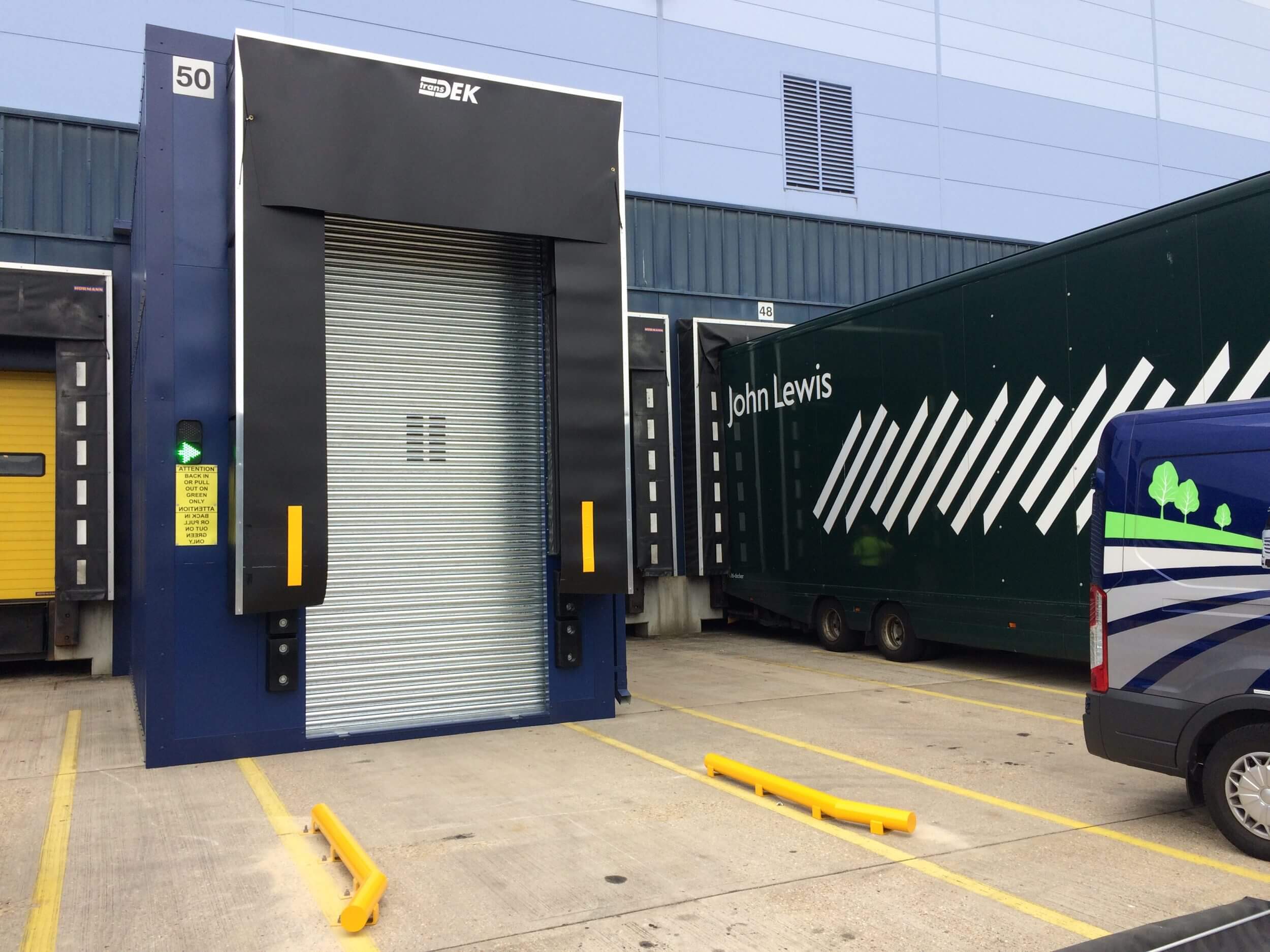

Roller Shutter Door

Cost-effective door option

Composite Panel Door

Insulated door option

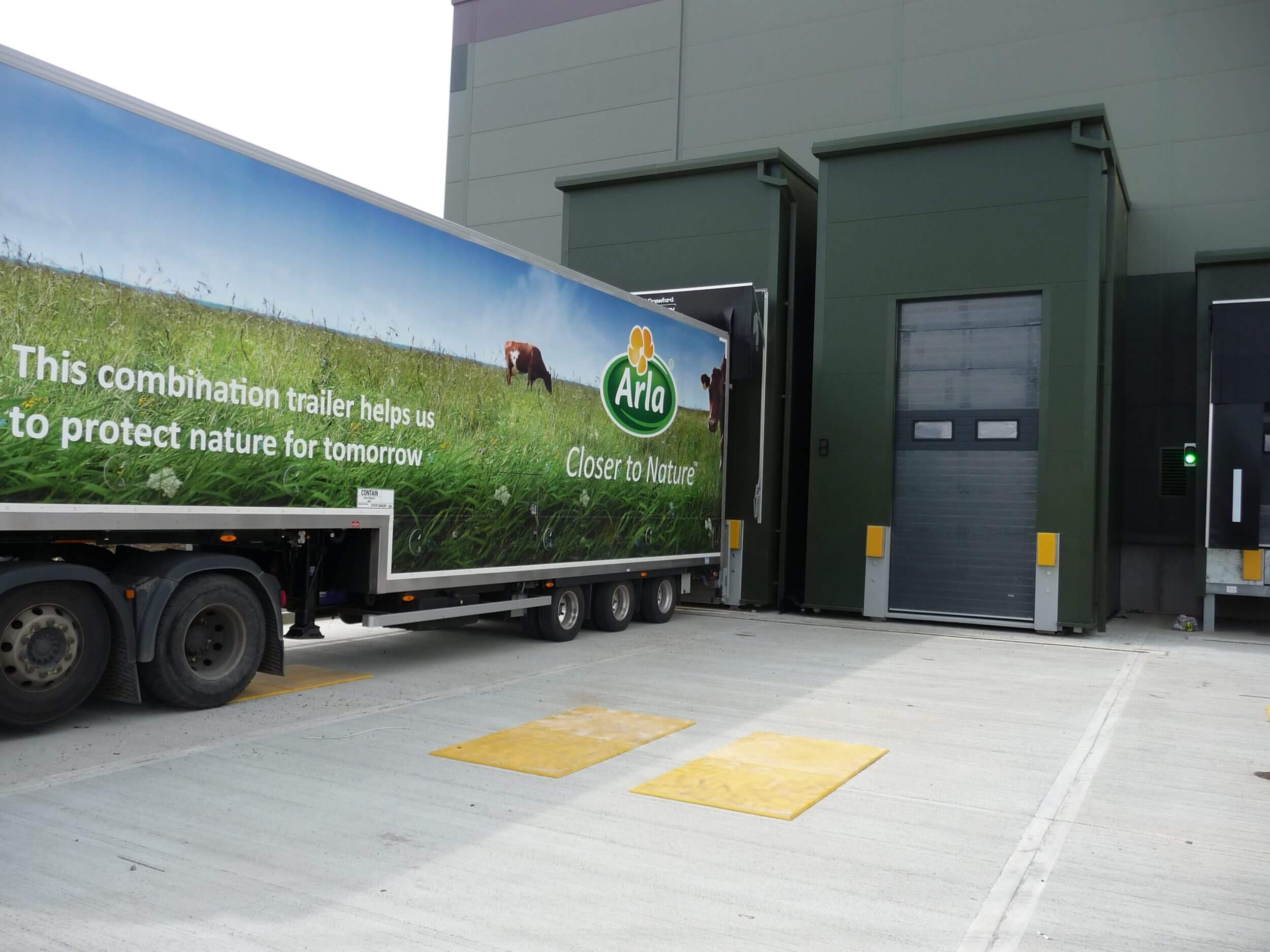

Insulated Cladding

For temp-controlled operations

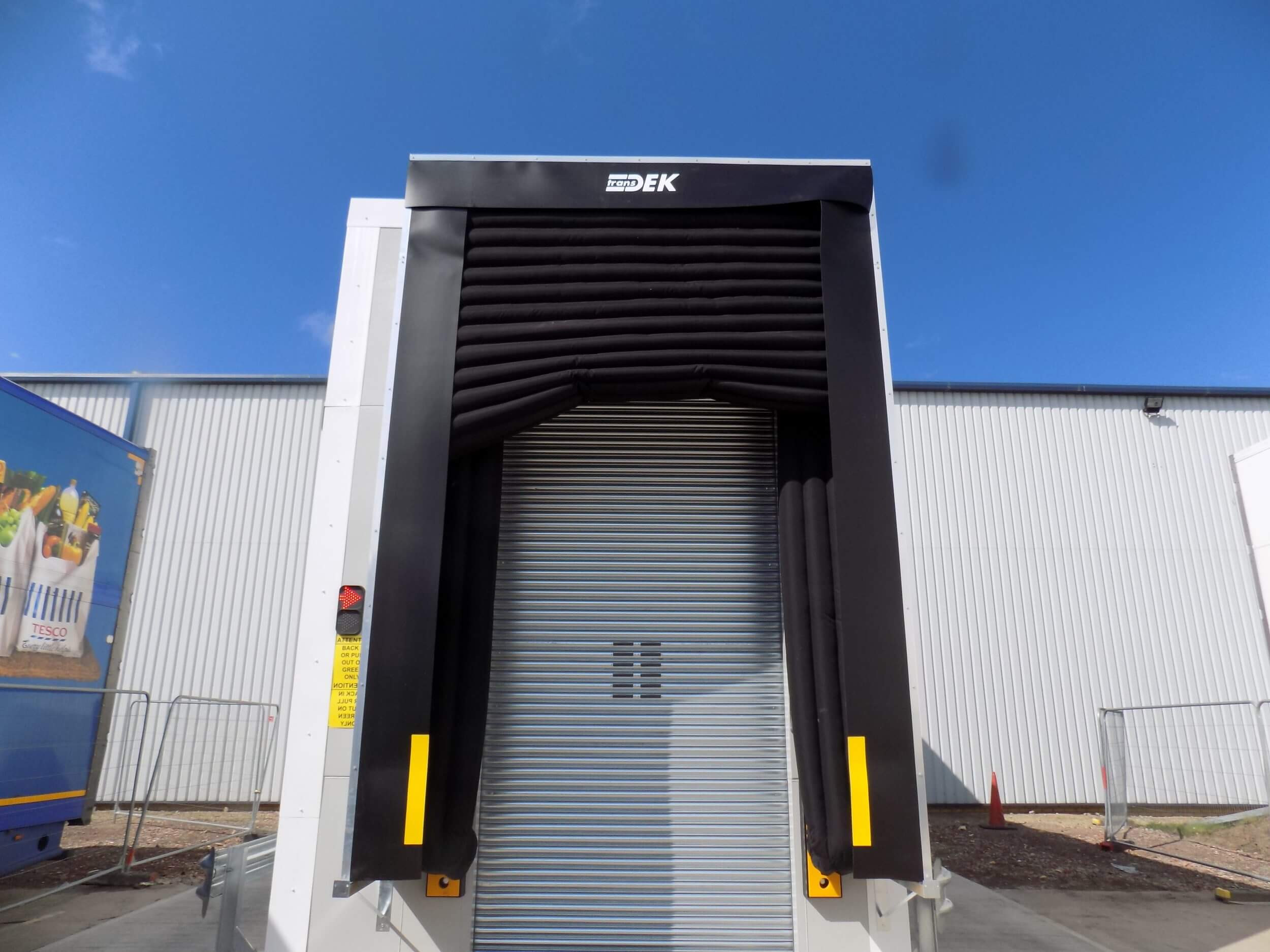

Inflatable Dock Shelter

Increases seal thermal integrity

Critical Spares Package

Supports in-house maintenance

Connect® Dock Management

Bespoke integrated IT software

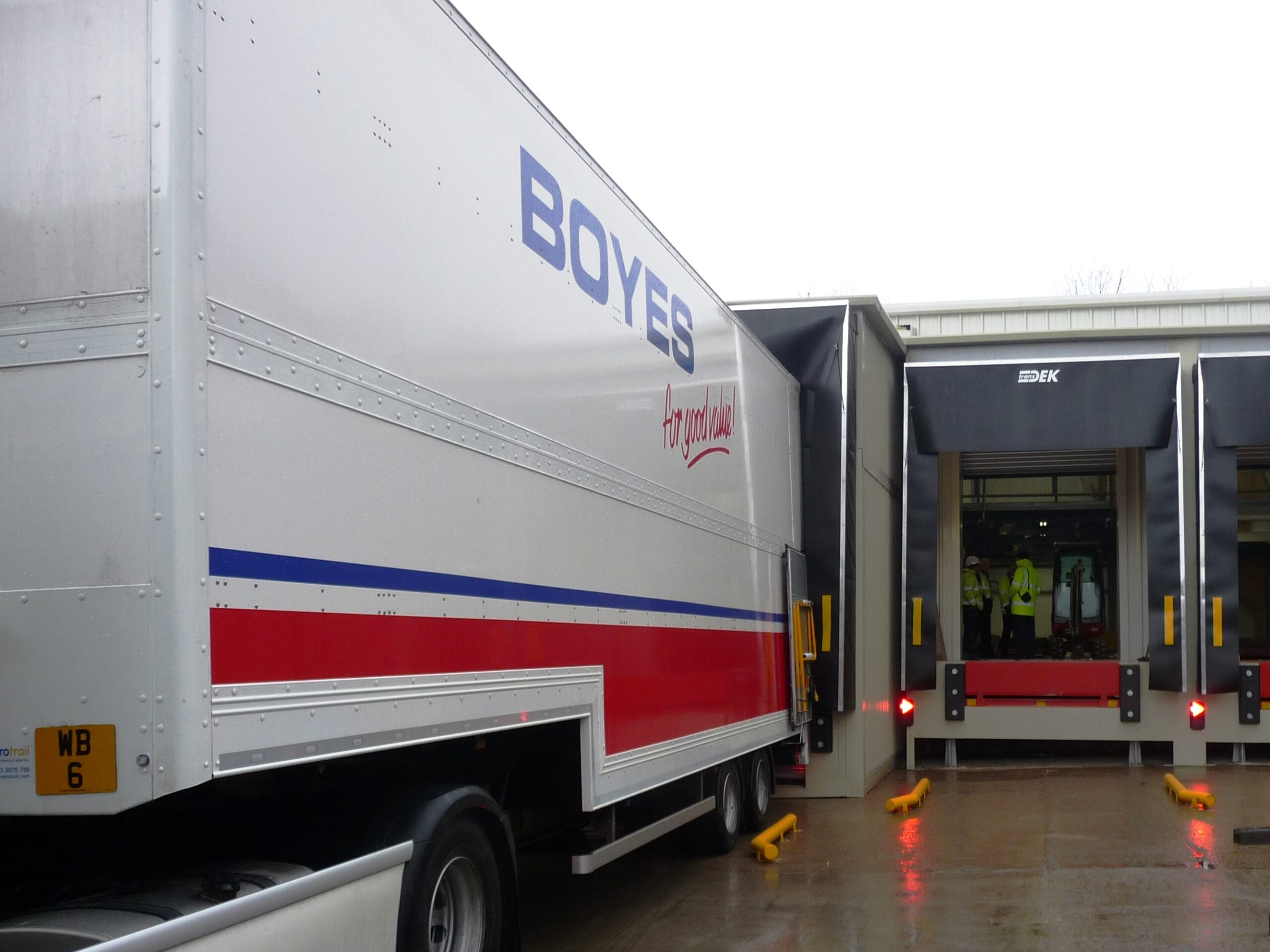

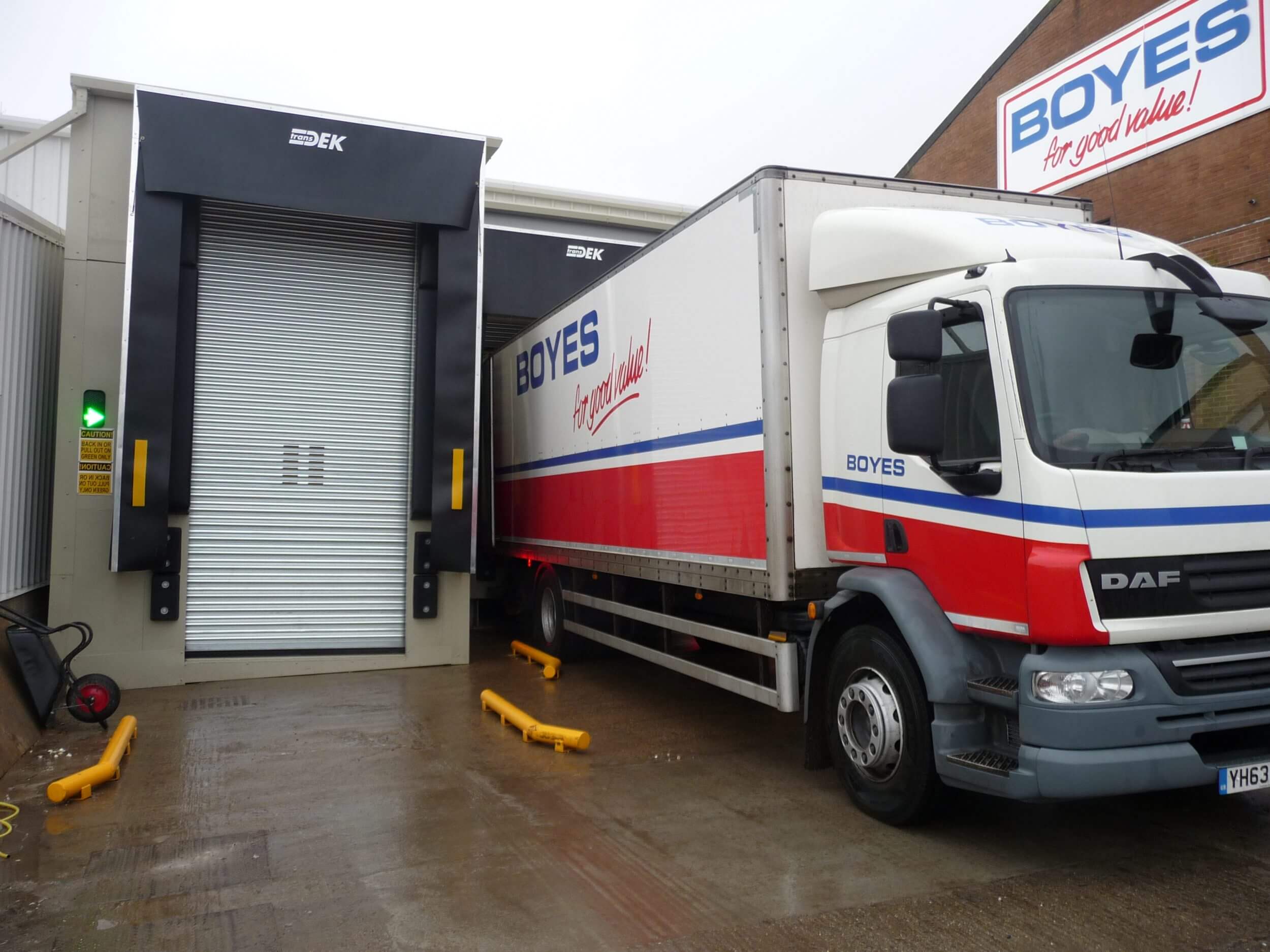

With their engineering and manufacturing expertise, Transdek has now delivered a dedicated solution to support the continued redevelopment of our Havers Hill distribution facility that more than meets our current and future needs.

Maintenance Manager at Boyes

The team at Transdek has been simply excellent. They have provided consistently professional support from start to finish of the project, and have obviously really valued the relationship with Matalan.

Central Operations at Matalan

The bespoke loading bay solution the Transdek technical team has developed and installed meets all our objects and ensures that the movement of goods at the warehouse is extremely efficient and can be handled safely.

Facilities Manager at Ricoh UK

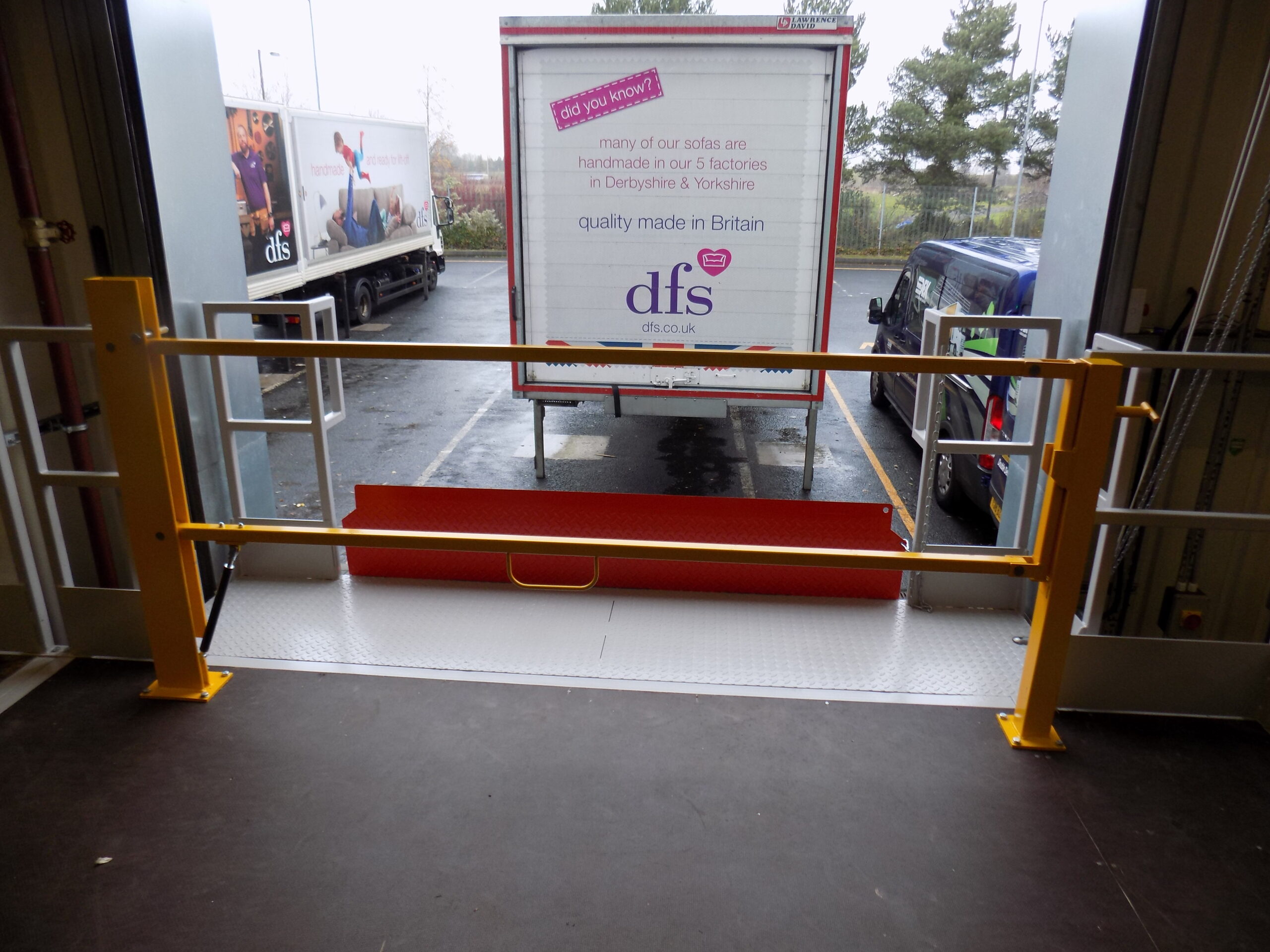

Transdek’s modular loading lobbies and dock levellers have given us multiple benefits. Staff can now wheel our furniture racks straight in to the back of vehicles, which has both reduced manual handling and speeded up loading.
