OUR 4-PALLET V2G LIFT POD

Our 4-Pallet V2G Yard Lift (6-pallet footprint) offers you fast, safe, weather-proof and (optionally) temperature-controlled loading at level-access retail stores, factories and DC’s. Each unit is supplied as a modular, pre-clad pod* that is installed straight on to yard or warehouse floor.

Developed specifically as an advanced, safety-enhanced, cost-effective alternative to surface-mounted scissor lifts, the 4-Pallet V2G gives you twice the lift speed, a 4-pallet capacity (6 pallets without operator), integrated fixed-ramp access, a hydraulic bridge plate and HMI touch-screen controls with a rapid-diagnostic capability*.

The lift will efficiently load all your vehicles – from home delivery vans to double deckers – to/ from ground level, and is fitted with enhanced safety features as standard. Self-levelling ‘feet’* accommodate uneven yard topography to ensure a flexible fit and reliable operation.

Enquire Now Download Brochure

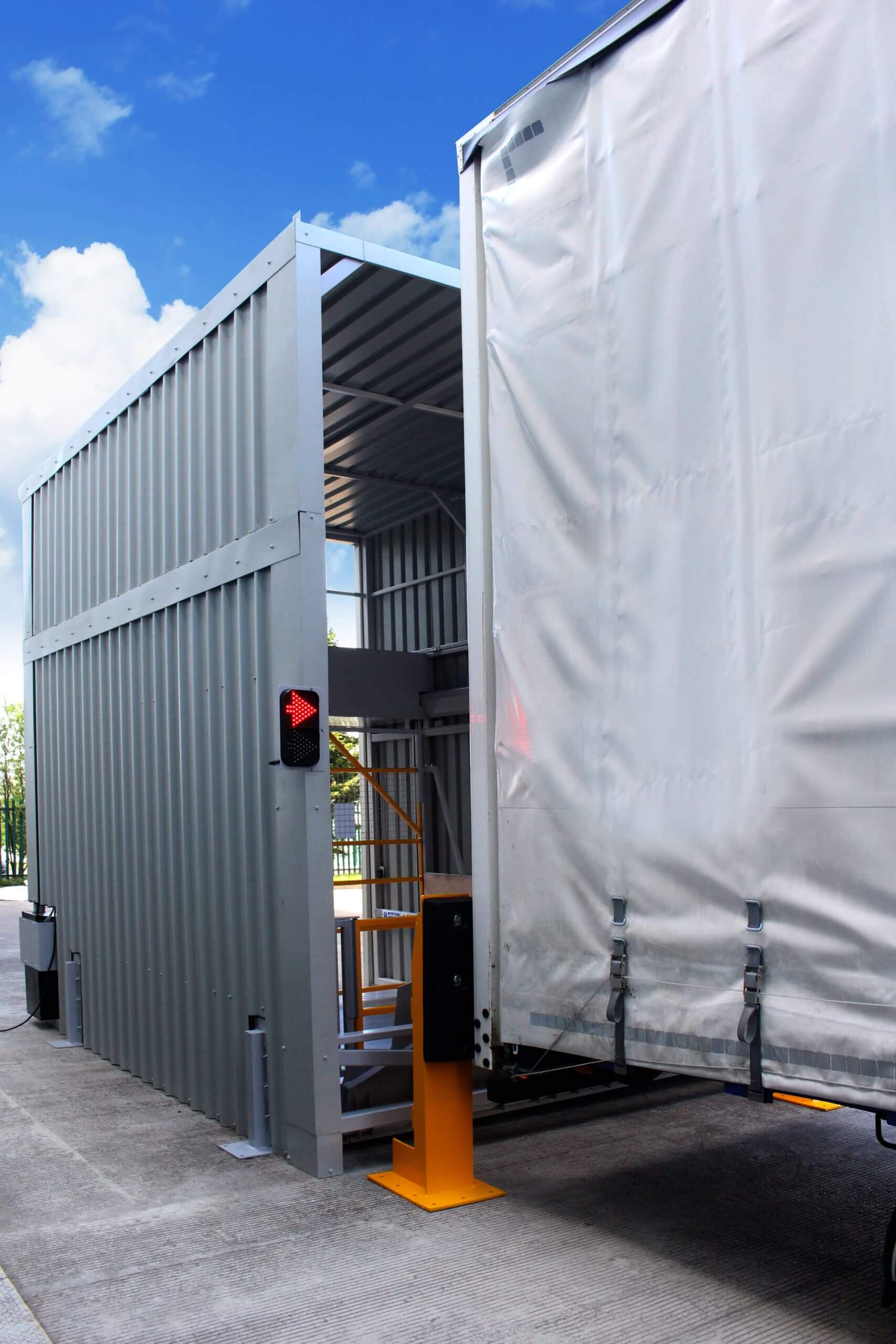

4P V2G INTRO scaled

4-PALLET V2G LIFTS

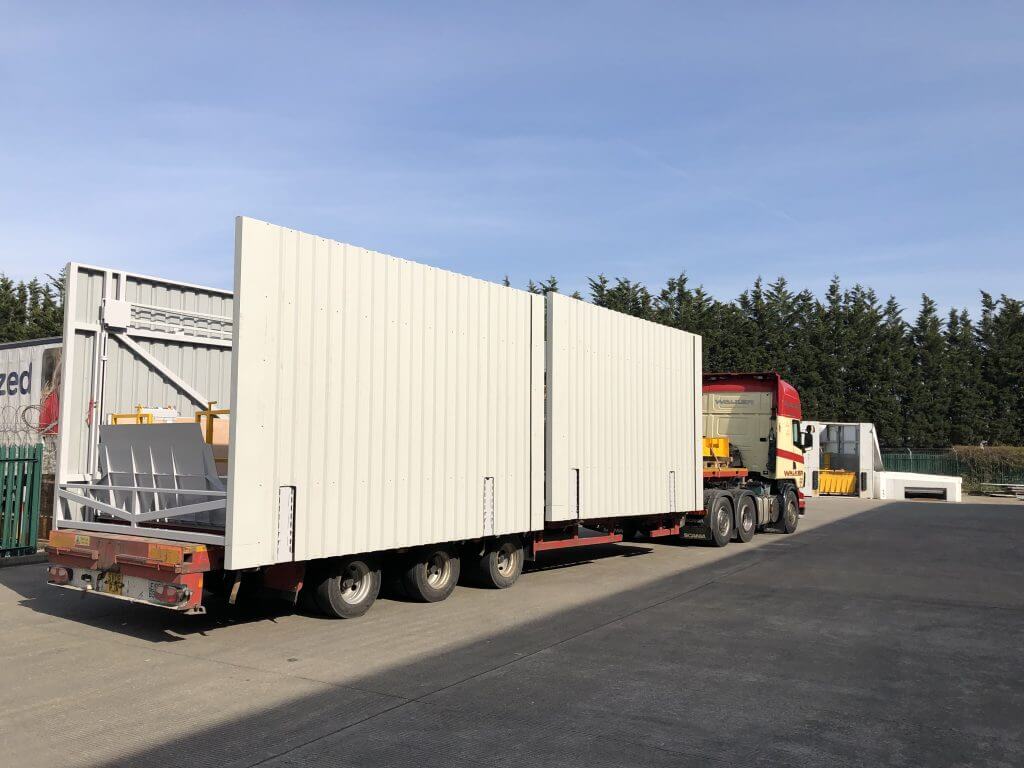

1 Modular scaled

Modular, surface-mounted design*

Delivered as pre-tested, plug-and-play units for rapid installation straight on to the yard or warehouse surface in just ½ day. Self-levelling feet accommodates variable yard gradients and dock heights

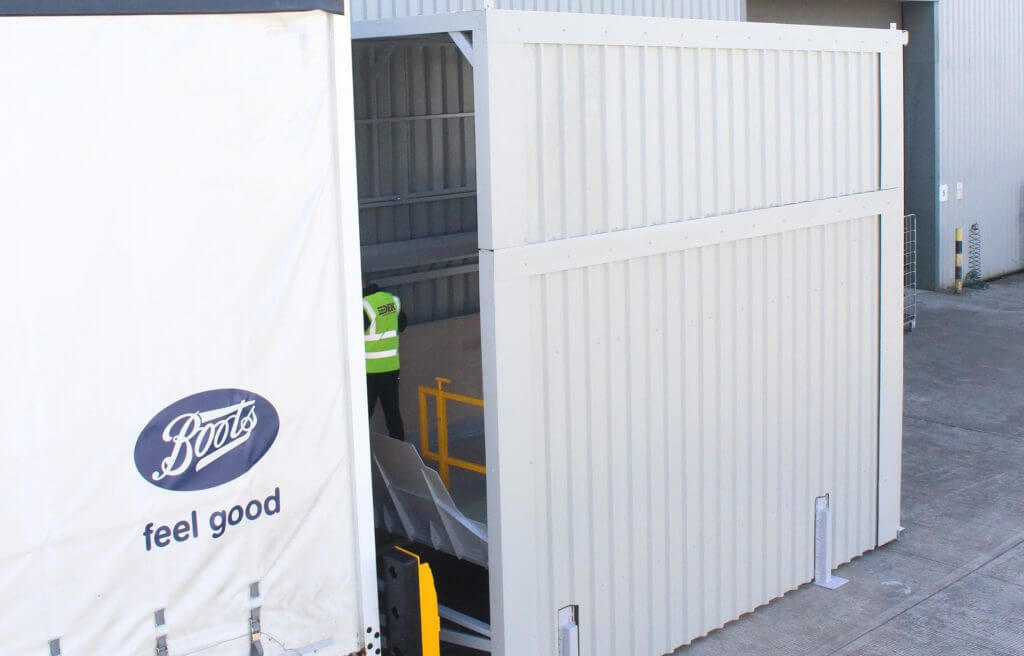

2 Cladding test

Clad, weatherproof loadhouse pod

Provides environmental protection for loaders/drivers and products, as well as increasing anti-theft security

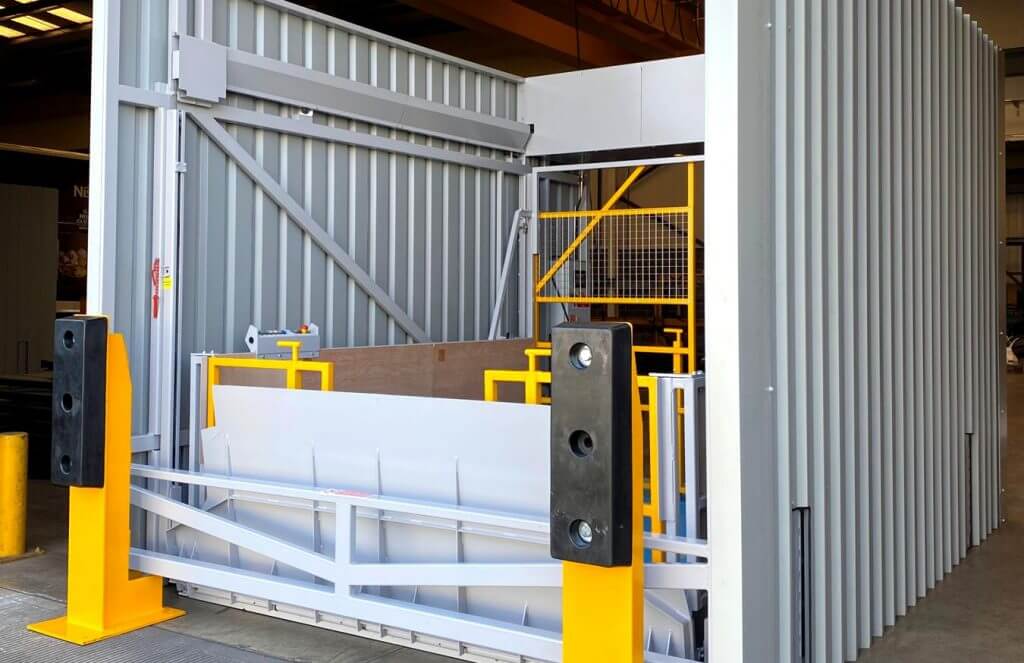

3 Stress engineered test

Structurally-engineered loadhouse

Loadhouse and lift structure engineered for durable, lifetime operation in rugged logistics environments. Optional dock bollards and bumpers minimise potential damage from reversing vehicles

4 Single Ram

Single-ram hydraulics*

Simple, low-maintenance design. Gives raise/lower speed 2 x faster raise/lower than equivalent scissor lifts. Lift stroke compatible with loading all vehicles to/from ground level – from powered double deckers to home delivery vans

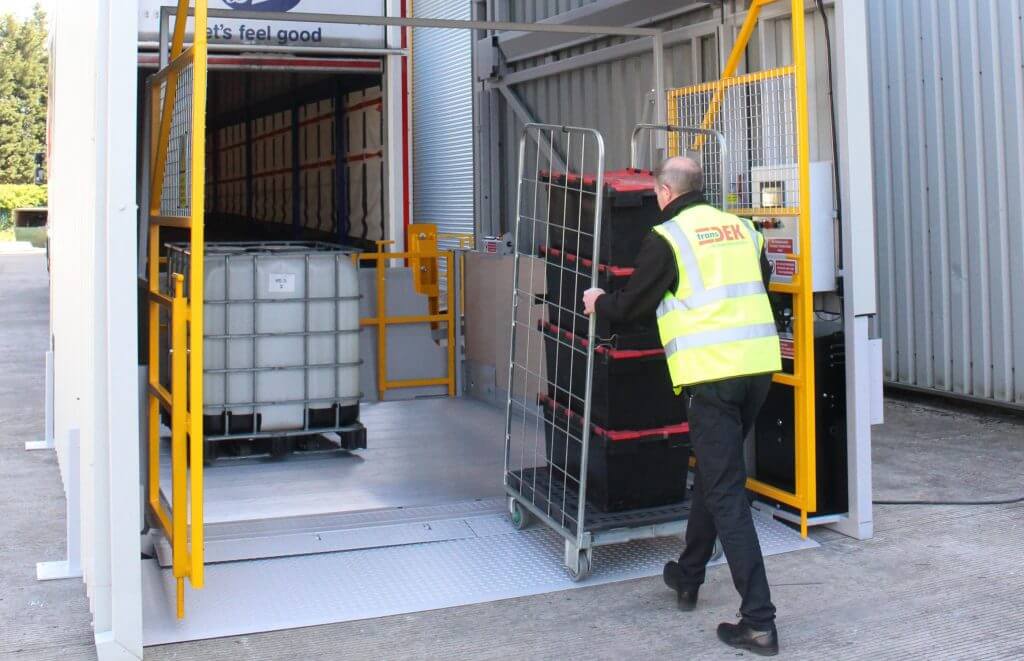

5 Ramp test

Integrated lead-on ramp to slimline lift platform*

The fixed, low-gradient ramp provides easy, ergonomic access from ground level to the 75mm lift platform. This reduces manual handling and speeds up loading

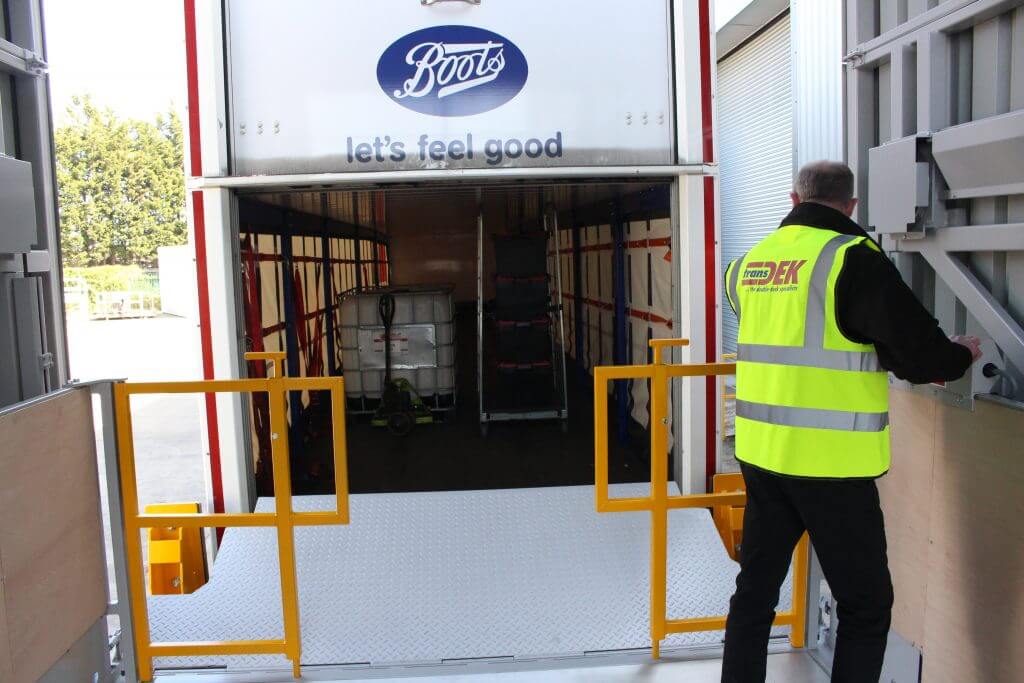

6 Bridge plate scaled

Hydraulically-powered bridge plate

Designed for heavy duty hand pallet truck and/or rollcage operation to ensure the most efficient loading operations. Safety rails to both sides of the bridge plate offer all-round protection for operators

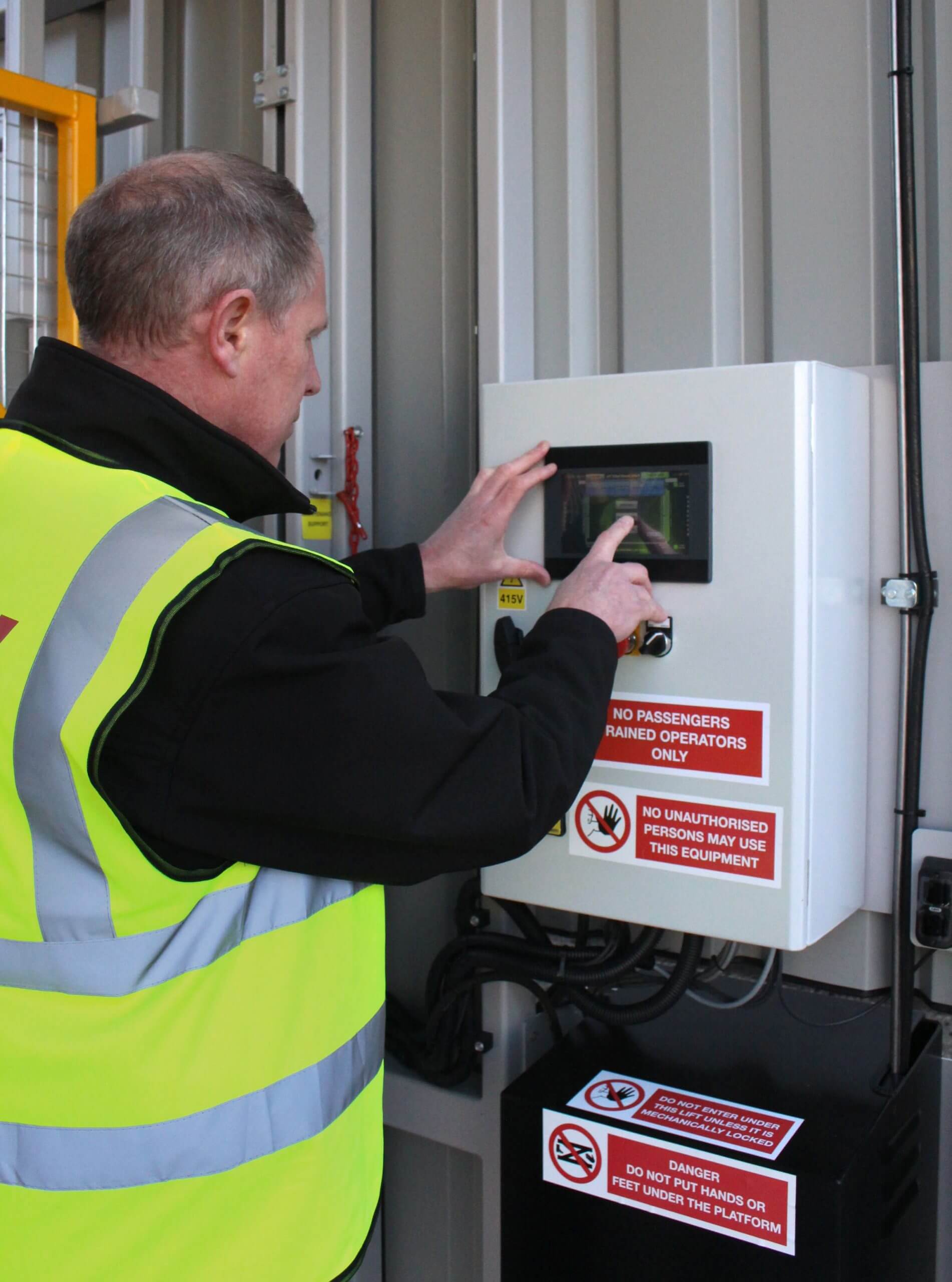

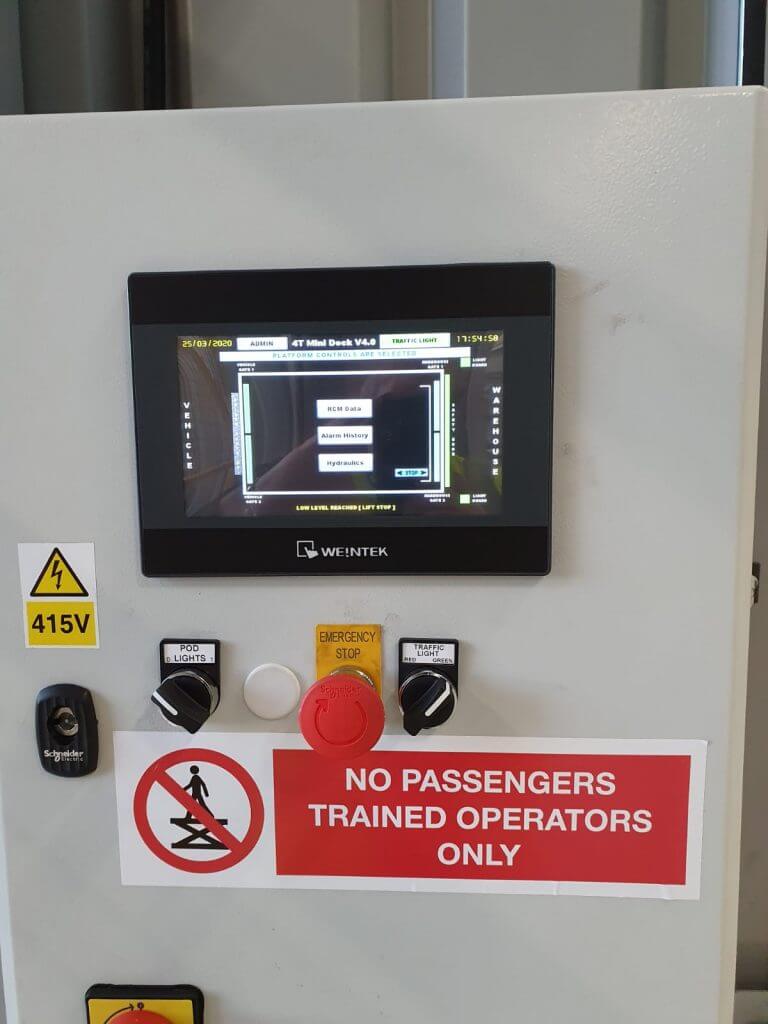

7 HMI screen

HMI touchscreen controls*

Technologically-advanced main control panel provides rapid-diagnostics pictogram for fast, simple self-fix, which minimises downtime. Mobile login option further reduces call-out costs and enables remote troubleshooting

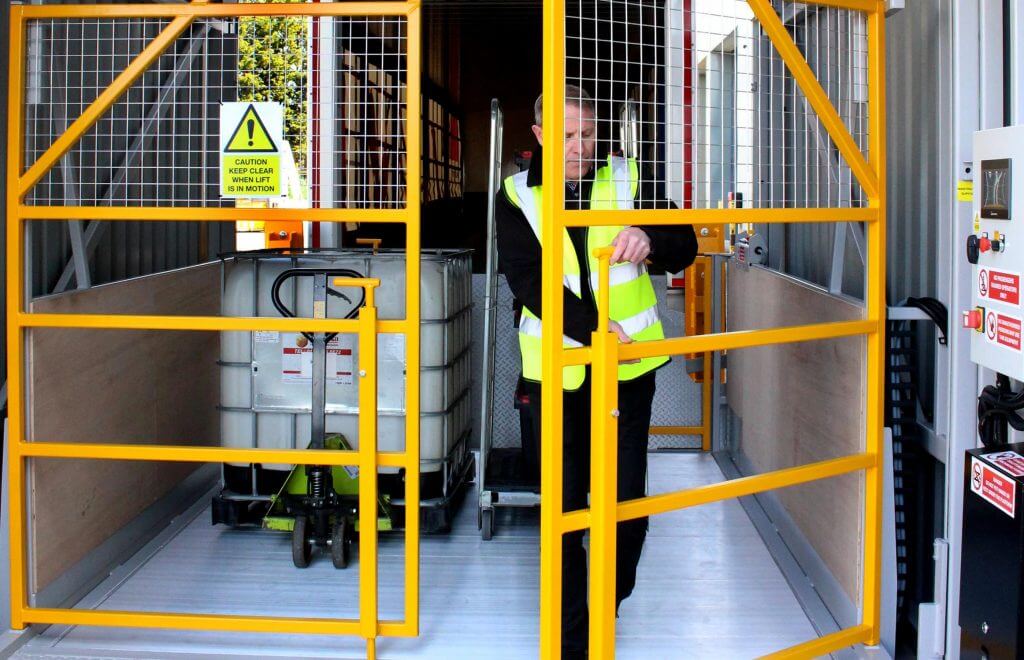

8 Safety test

Interlocked safety systems

Interlocked exclusion zone (light-beam), front/rear material gates (electrically and mechanically), traffic lights, interior lighting and loading lamps.

01 / 08

WHY CHOOSE TRANSDEK’S 4-PALLET V2G YARD LIFTS?

WEATHER-PROOF/ SEALED LOADING

Pre-clad, surface-mounted, modular pods* installed in ½ day; easily moved

SPEED & EFFICIENCY

Lift speed 2x faster than scissor lifts; 4-tonne SWL on raise/lower; loads 4x faster than taillift

SAFETY

Advanced, standard-setting safety features; CE-marked, BS/EN standard and Machinery Directive 2006/42/EC conformity

COMPETITIVE PRICING

Basse price includes: cladding; HMI touch-screen controls; integrated fixed access ramp; light-beam-interlocked exclusion zone

LOADING FLEXIBILITY

Efficient and secure loading of all goods vehicle types to/from ground level

LOW-MAINTENANCE

Single, powerful ram design*; rapid-diagnostic technology*; remote troubleshooting

UNRIVALLED LIKE-FOR-LIKE LOADING SPEED

Our 4-Pallet V2G Yard Lift gives unrivalled like-for-like loading speed, safety and reliability – compared to surface-mounted, pit-free scissor yard lifts. In short, it offers exceptional loading performance, both in the warehouse or on the yard.

Loading on to the slimline lift platform is via a fixed, shallow-gradient steel-durbar access ramp. The 6-pallet lift footprint still carries 4 to 5 pallets (9 roll cages) with an operator and hand pallet truck. And the lift speed itself is twice that of comparable scissor lifts. Overall loading speed for a 13.6-metre artic is c. 15 minutes faster than a surface-mounted scissor lift. The unit’s 4000kg raise-lower lift capacity is 60% higher than the upstroke on a ‘5000kg’ scissor lift.

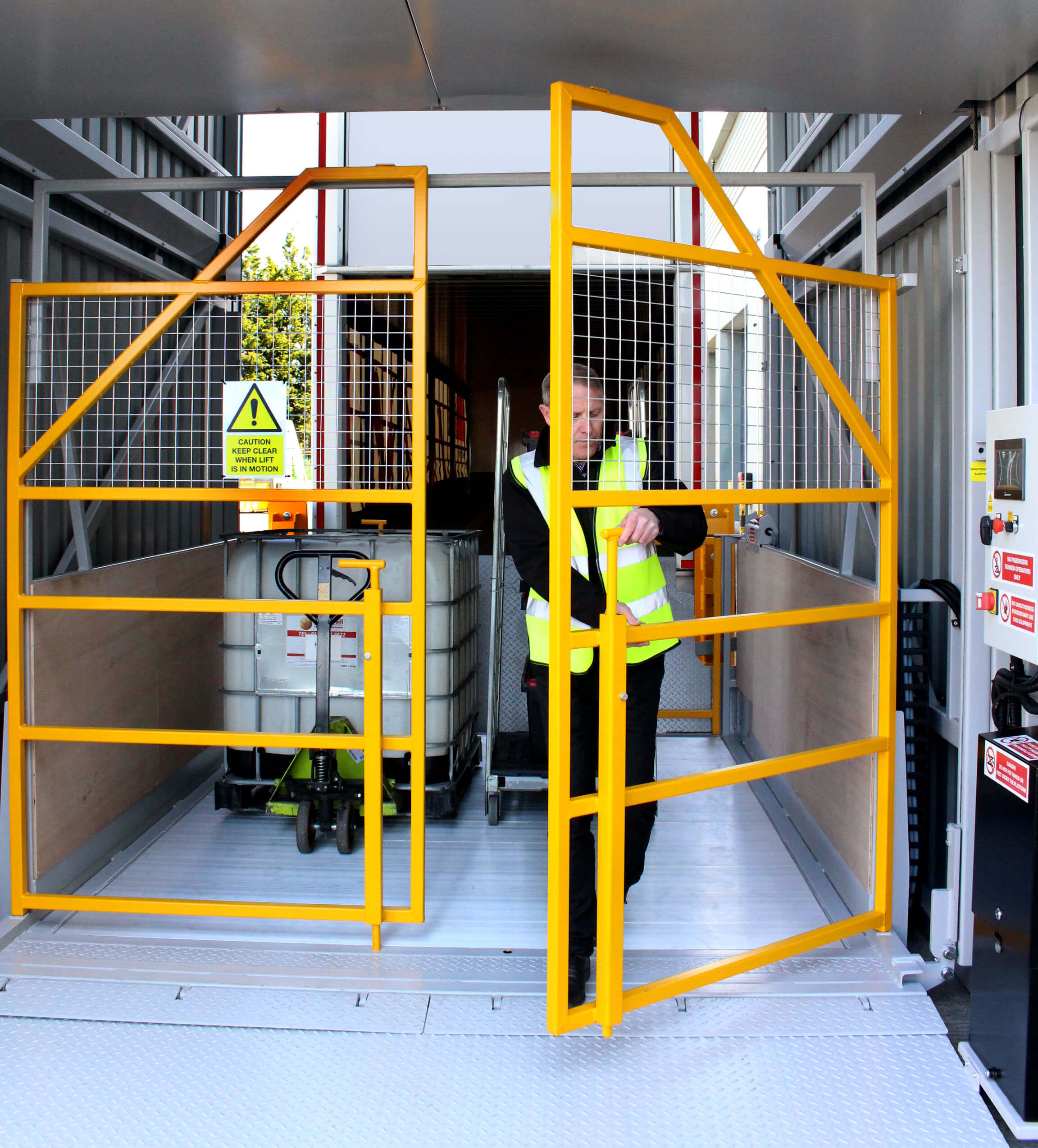

4P V2G SPEED

ENHANCED OPERATOR SAFETY

In terms of added safety features and benefits, the 4-Pallet V2G’s pre-clad superstructure not only protects goods and operators from environmental factors; it also prevents side-access to the lift workings. An interlocked light-beam sensor creates a rear exclusion zone to the lift during operation.

Other standard safety features on the lift include: electrically- and mechanically-interlocked twin safety gate, at front and rear; safety barriers along the sides of the bridge plate during loading; easy-access platform lock-out points for safe maintenance; a safety edge beneath the platform’s exposed perimeter; an under-platform debris blind tension screen; two-hand positive-pressure platform controls; and HMI touch-screen main controls with rapid-diagnostic capability.

ENQUIRE NOW
4P V2G SAFETY scaled

4-PALLET V2G YARD LIFT

External Pod Dimensions (inc. power pack)

3727mm(w) x 4872mm (l) x 3230mm (h) (excl. roof module)
4628mm (h) with roof
4128mm (h) with Euro-spec roof

Platform Footprint

2600mm (w) x 3170mm (l) – (6 pallets)

Load Capacity

4 industry pallets plus operator and hand pallet truck (or roll cage equivalent)

Lifting Capacity

4000kg UDL raise/lower

Lift Range

Ground to 1600mm

Lift Speed

80mm/s raise/lower

FINANCE & RENTAL

We provide a range of finance options for our customers, with the aim to optimise funding flexibility and cost effectiveness, making loading bay investment even more affordable and attractive.

Bespoke finance packages can be arranged by our in-house finance team or via your preferred finance partner. We work with all major leasing providers to offer equipment on: hire purchase, finance lease or operating lease.

Short term rental options are also available for the smooth and flexible integration of both loading systems and trailers.

Enquire Now
finance

4-PALLET V2G ANCILLARIES & OPTIONS

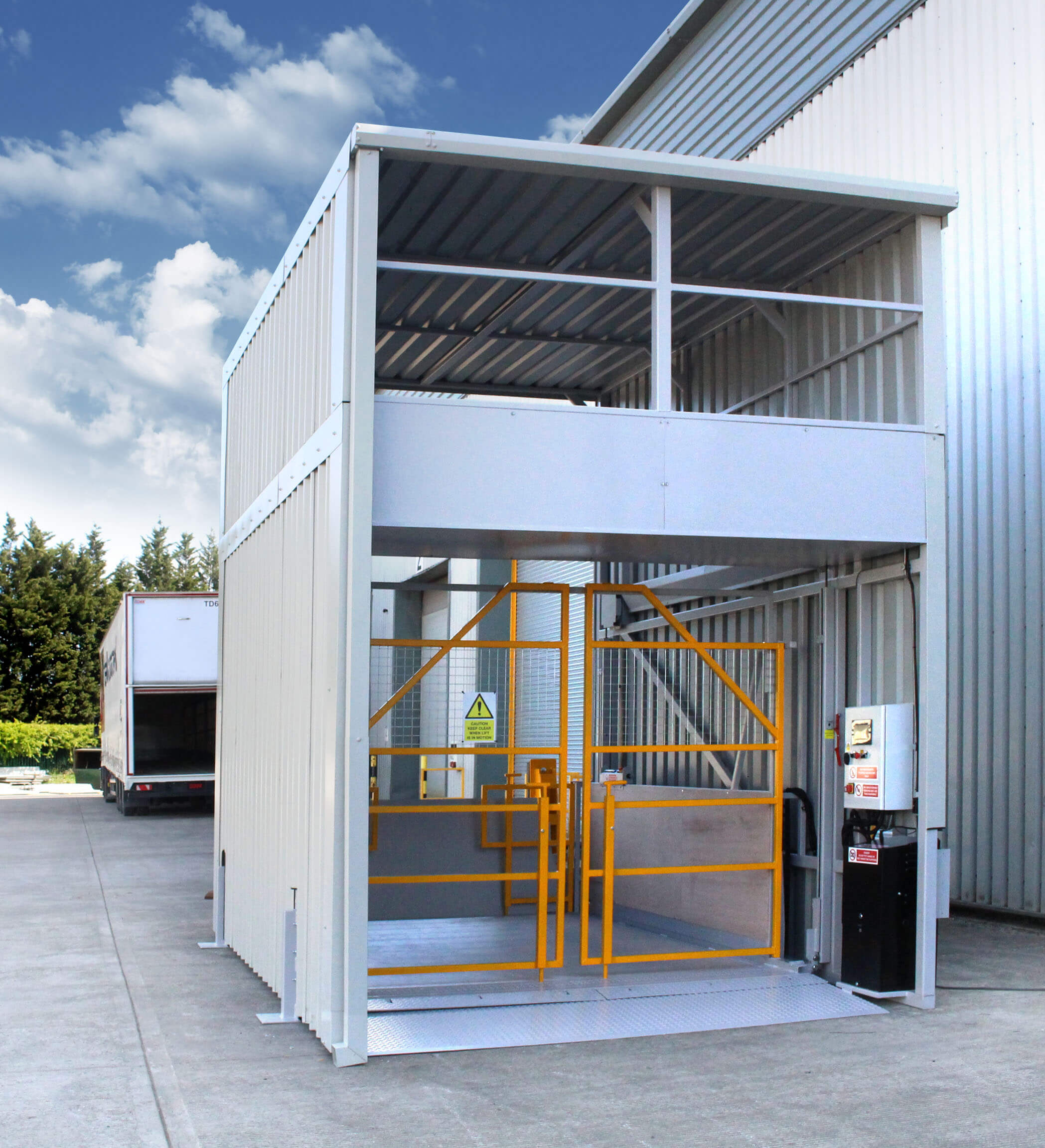

roof module

Roof Module

Weather-proof for exterior use

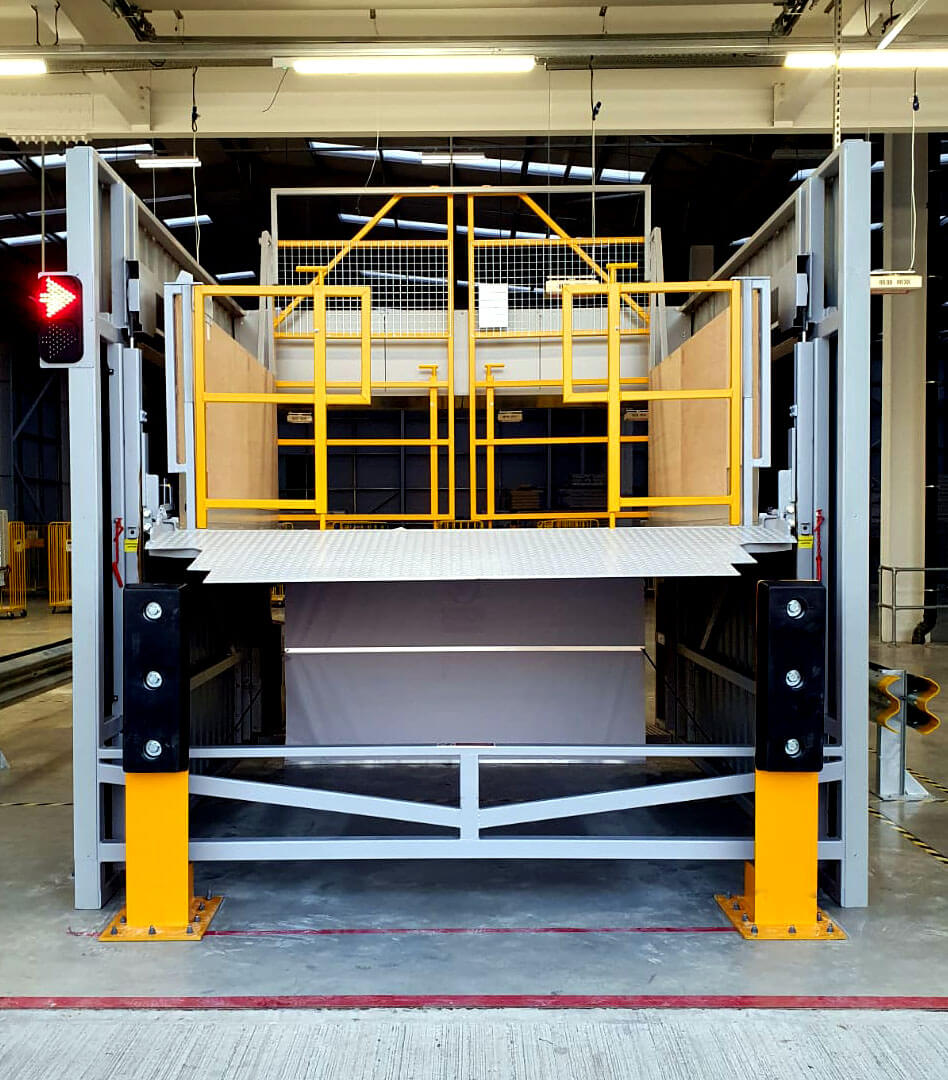

vehicle bumpers 1

Vehicle Bumpers

Anti-collision dock bollards

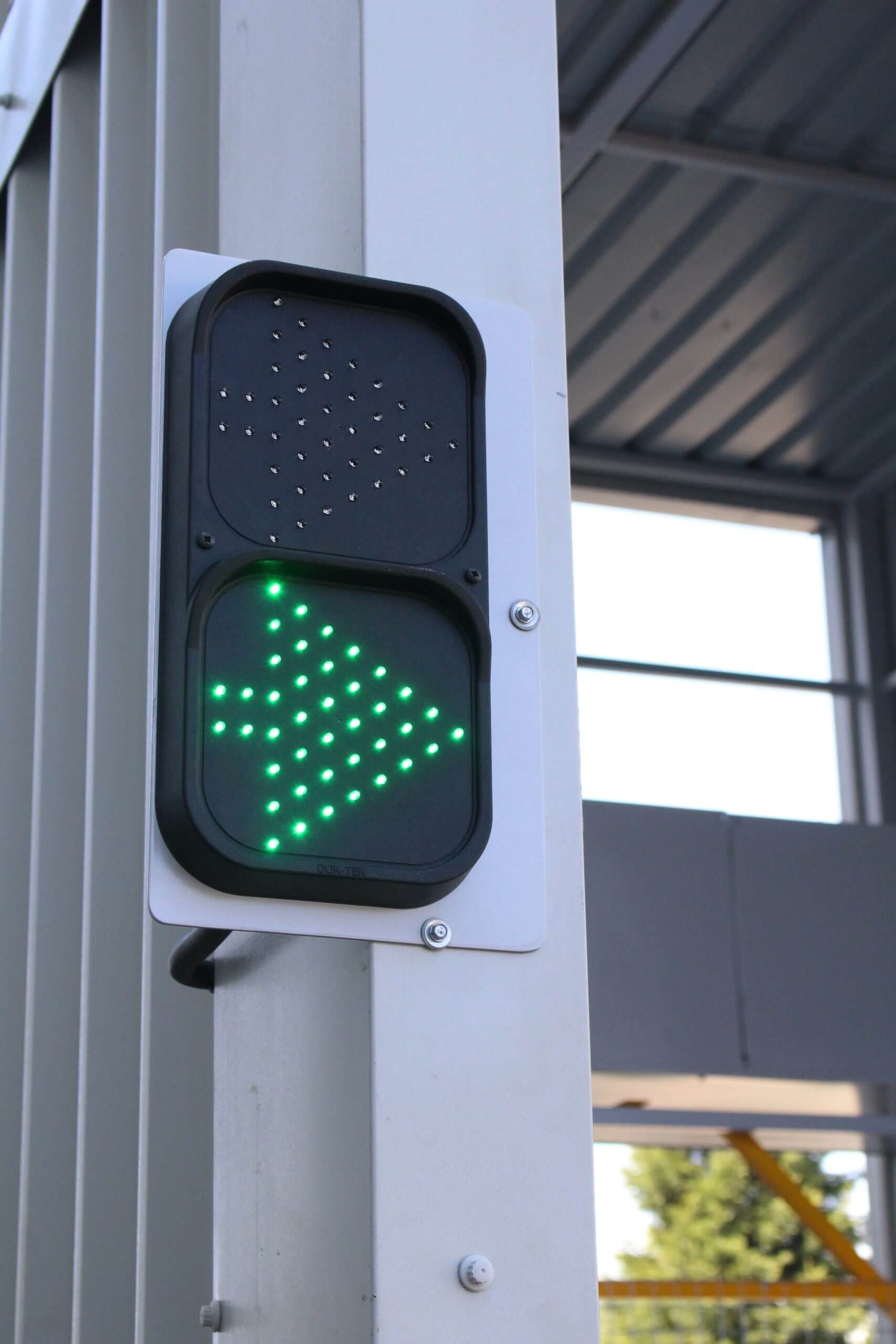

Traffic light 2 scaled

Loading Lamp

24V LED lighting for load area

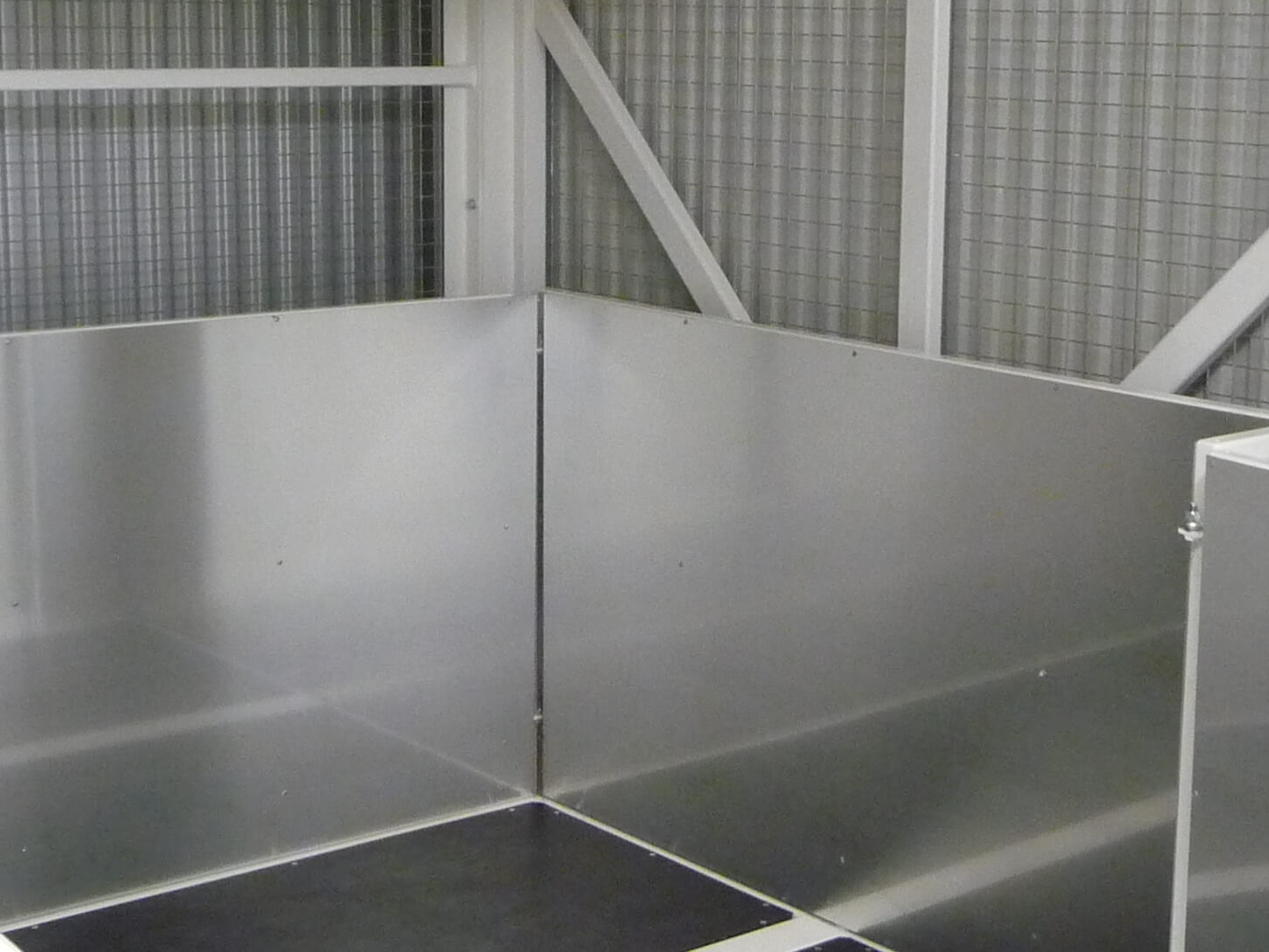

alu lining 1

Aluminium Lining

2mm lining beneath handrails
mesh sides scaled

Mesh Sides

50mm x 50mm 10-gauge

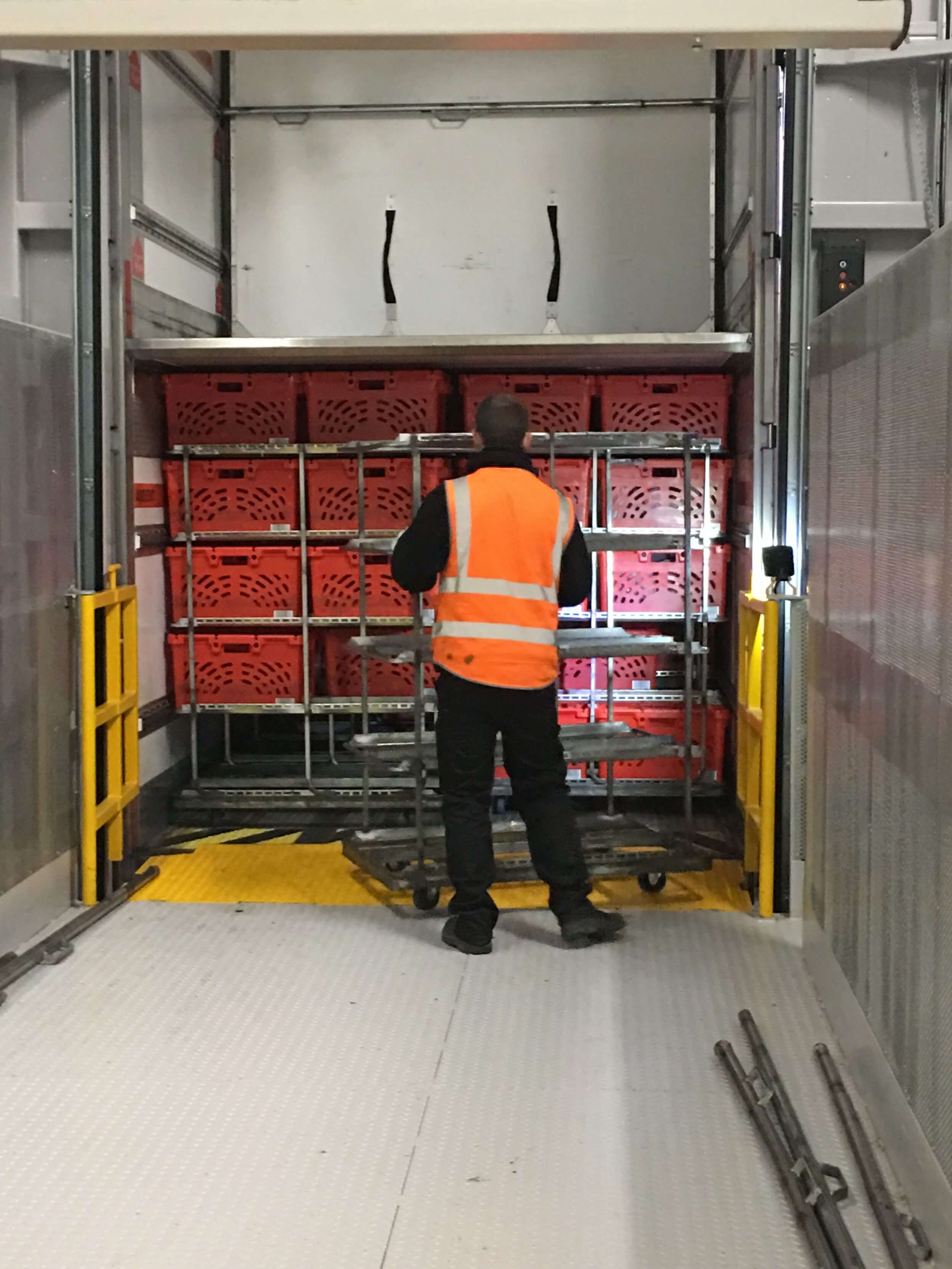

steel durbar 1 scaled

Steel Durbar Platform

Heavy-duty operations
Wheel Guides 3 scaled

Wheel Guides

Aligns vehicles on dock

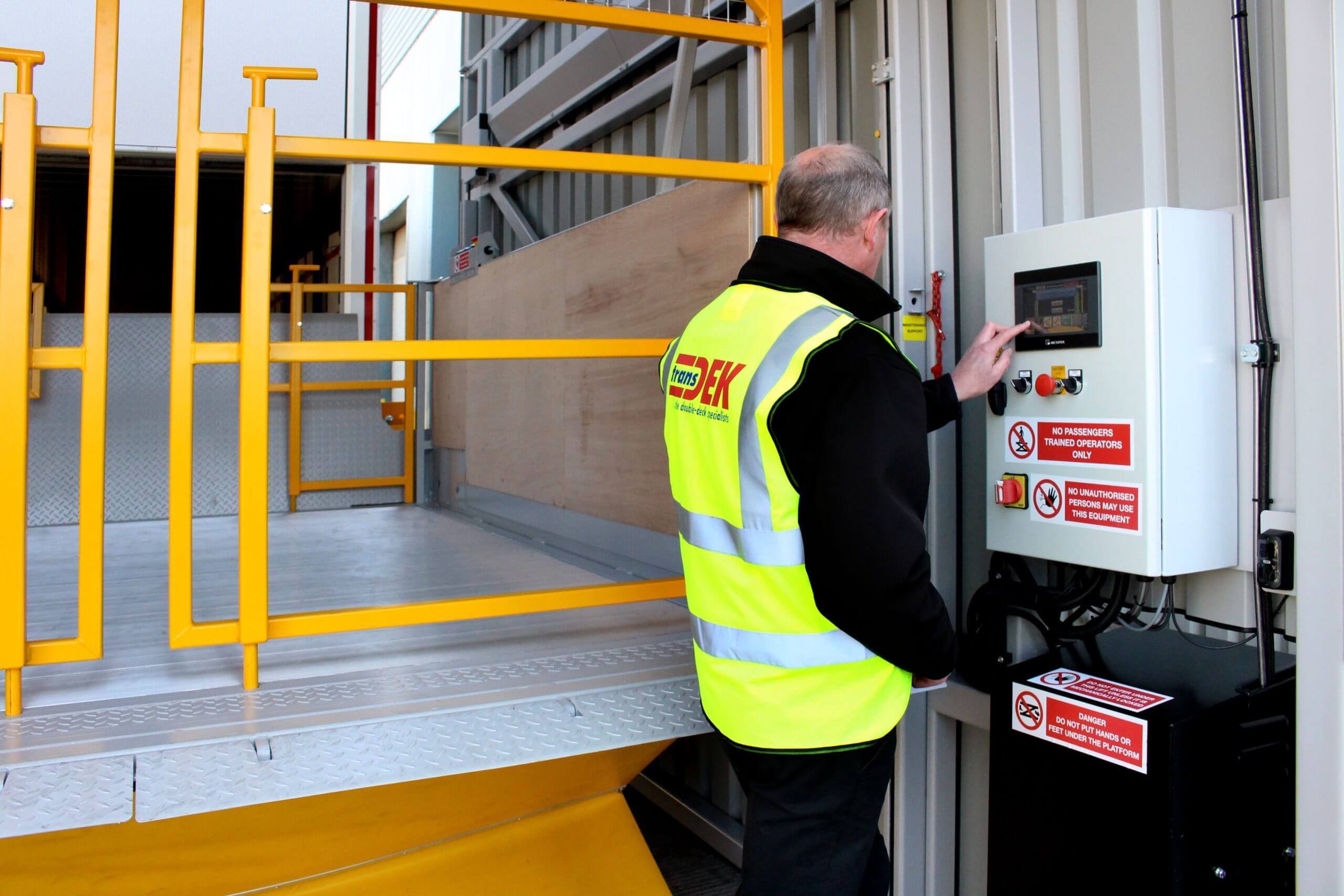

4P V2G testimonial background scaled
