VEHICLE DOCK LIFTS

Modular, surface-mounted vehicle docks lifts to un/load vehicles from raised docks

DOCK LIFTS HERO scaled
DFS
Tesco logo
amazon
Yodel Logo 1 scaled
Blakemore Logistics29 thumb
Greggs Logo
Boots
Xpo logo
littlewoods logo 1
ricoh
John Lewis
hypnos beds
ocado
AG Barr
Matches Fashion
Steinhoff
totes logo
Noble Foods

OUR VEHICLE DOCK LIFT RANGE

Our range of modular, surface-mounted vehicle dock lifts offer unrivalled efficiency, safety and flexibility when loading or unloading goods to/from vehicles to raised docks.

CE-marked and built in conformity with the Machinery Directive and all relevant BS/EN standards, our dock lifts are designed with your operational safety and speed as a priority.

The added versatility of this model also allows products to be moved from raised docks to yard/ground level when vehicles are not docked.

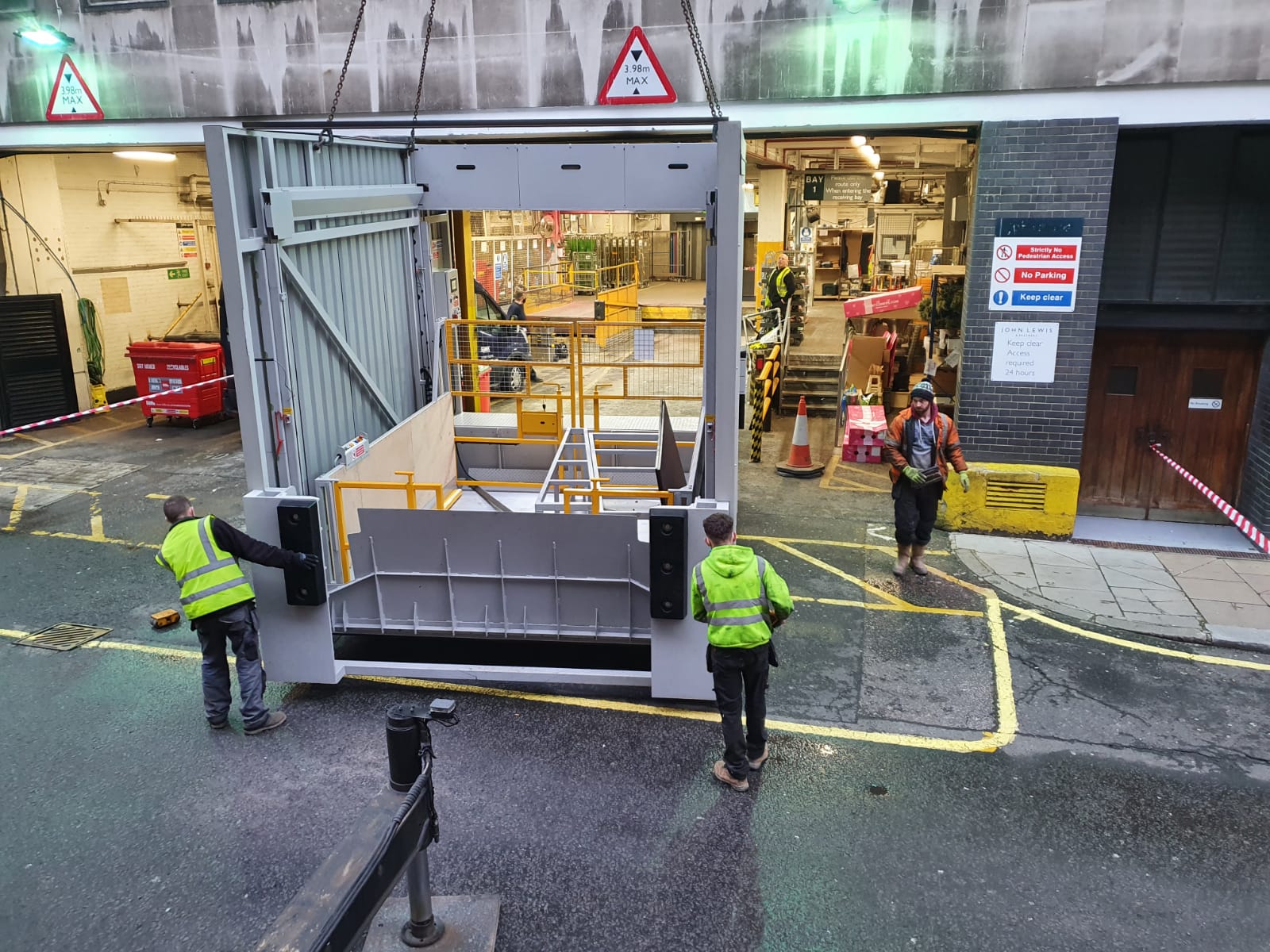

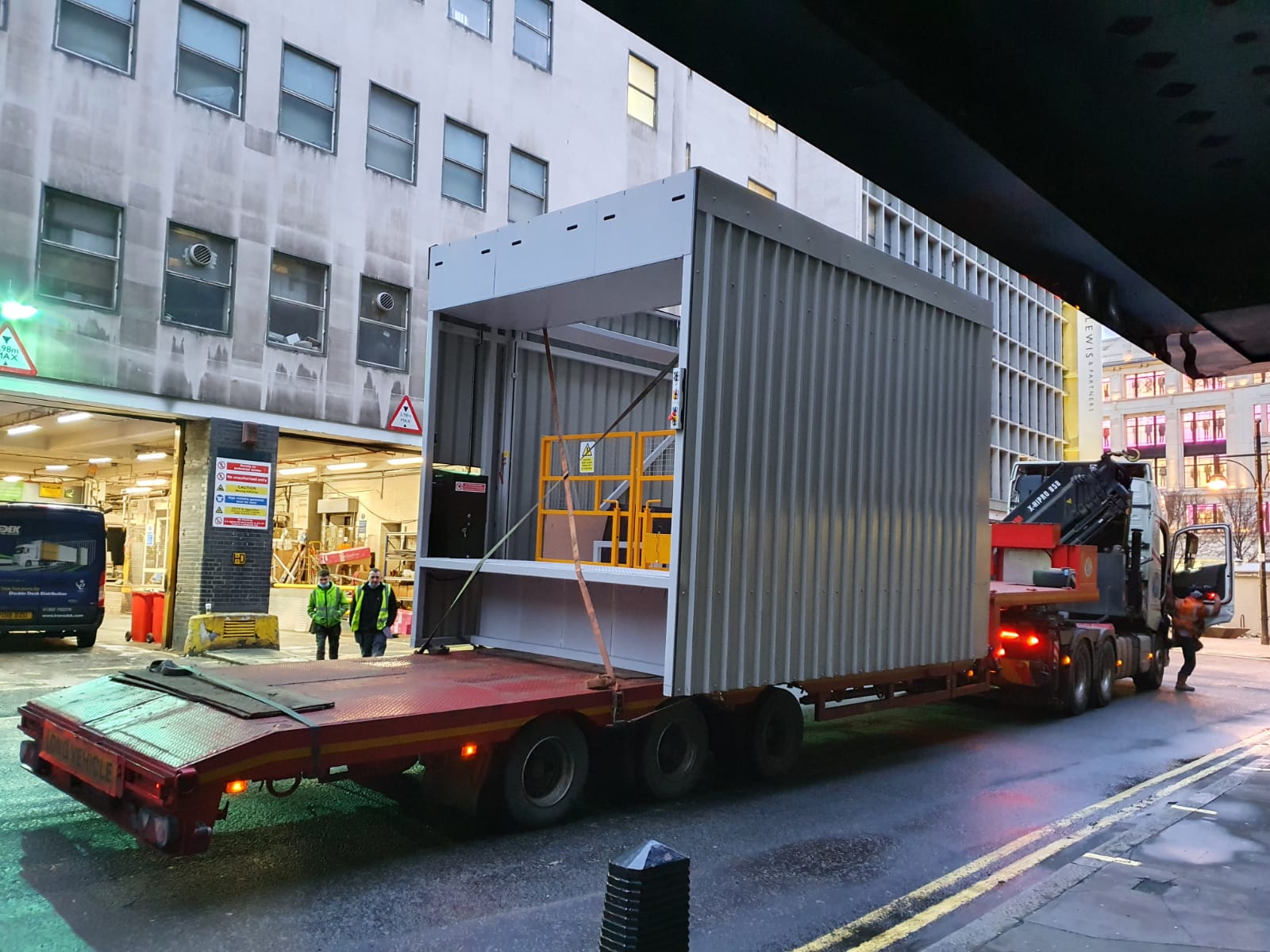

Delivered and installed in just one day, our vehicle dock lifts are surface-mounted allowing them to be installed straight onto the floor slab without the need for civil works and can be quickly re-located should future requirements change.

Enquire Now Download Brochure
transdek lift

VEHICLE DOCK LIFT SIZES

2 PALLET DOCK LIFT

External Pod Dimensions

3727mm (w) x 2872mm (l) x 3230mm (h)-excluding lid module

Platform Footprint

2600mm (w) x 1170mm (l)

Load Capacity

2 x 1200mm x 1000mm pallets (excluding operator) or 1 x 1200mm x 1000mm pallets (plus an operator and hand pallet truck)

Lifting Capacity

2250kg UDL

Lift Range

Warehouse level into to trailer bed heights between ground level and 1600mm

Lift Speed

80mm/s raise/lower

4 PALLET DOCK LIFT

External Pod Dimensions

3727mm (w) x 3872mm (l) x 3230mm (h)-excluding lid module

Platform Footprint

2600mm (w) x 2170mm (l)

Load Capacity

4 x 1200mm x 1000mm pallets (excluding operator) or 2 x 1200mm x 1000mm pallets (plus an operator and hand pallet truck)

Lifting Capacity

3000kg UDL

Lift Range

Warehouse level into to trailer bed heights between ground level and 1600mm

Lift Speed

80mm/s raise/lower

6 PALLET DOCK LIFT

External Pod Dimensions

3727mm (w) x 4872mm (l) x 3230mm (h)-excluding lid module

Platform Footprint

2600mm (w) x 3170mm (l)

Load Capacity

6 x 1200mm x 1000mm pallets (excluding operator) or 4 x 1200mm x 1000mm pallets (plus an operator and hand pallet truck)

Lifting Capacity

4000kg UDL

Lift Range

Warehouse level into to trailer bed heights between ground level and 1600mm

Lift Speed

80mm/s raise/lower

Vehicle Dock Lifts

1 Modular 2 scaled

Modular, surface-mounted design*

Delivered as pre-tested, plug-and-play units for rapid installation straight on to the yard or warehouse surface in just ½ day. Self-levelling feet accommodates variable yard gradients and dock heights

Vehicle Dock Lift

Structurally-engineered superstructure

Lift platform and hydraulics mechanisms mounted in a structurally-engineered chassis superstructure designed for reliable lifetime operation in rugged logistics environments. Optional dock bollards and bumpers in vehicle-loading applications

4 Single Ram

Single-ram hydraulics*

Simple, low-maintenance design. Gives raise/lower speed 2 x faster raise/lower than equivalent scissor lifts. Lift stroke provides ground to 1600mm range

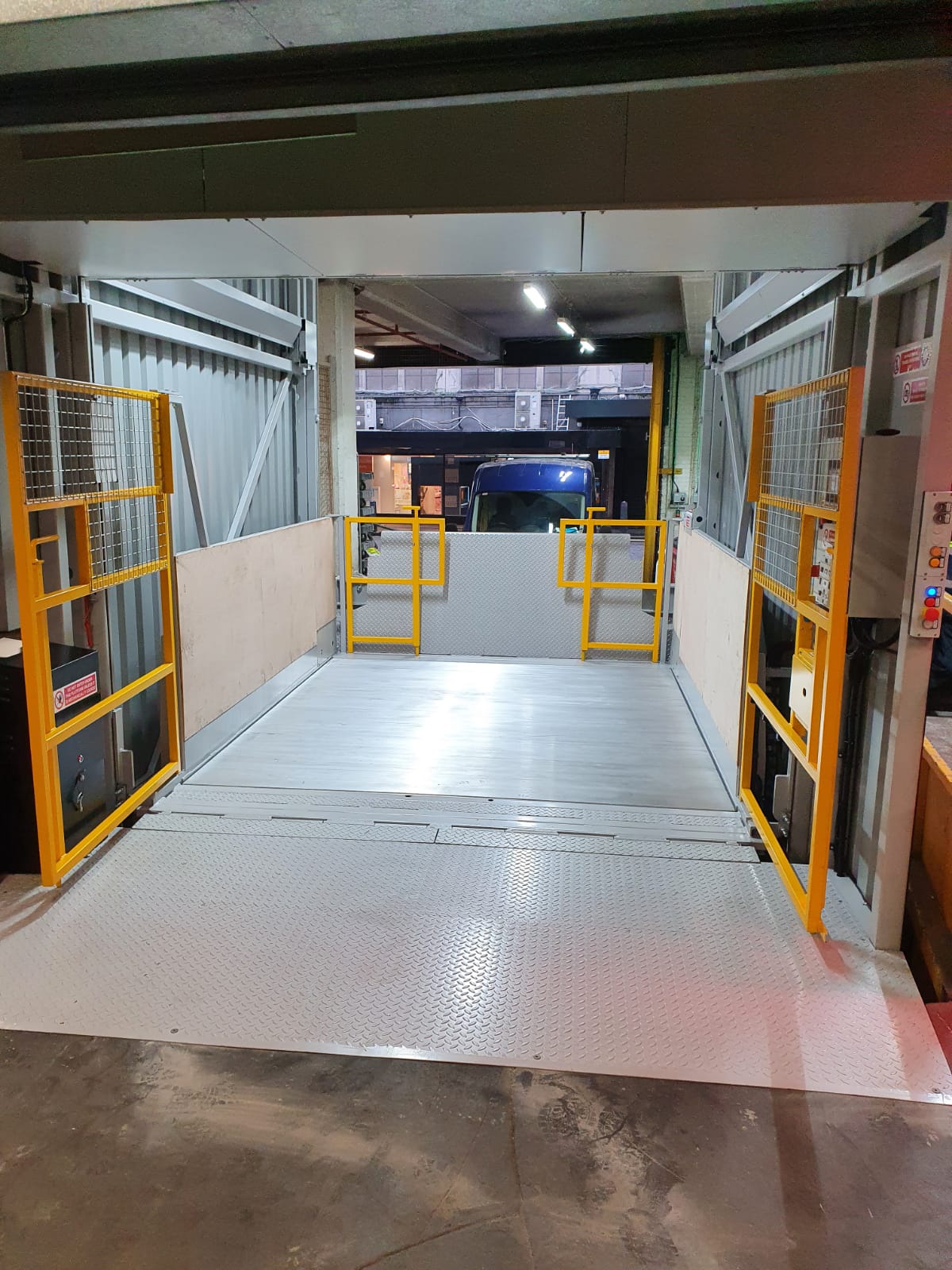

4 Integrated ramp scaled

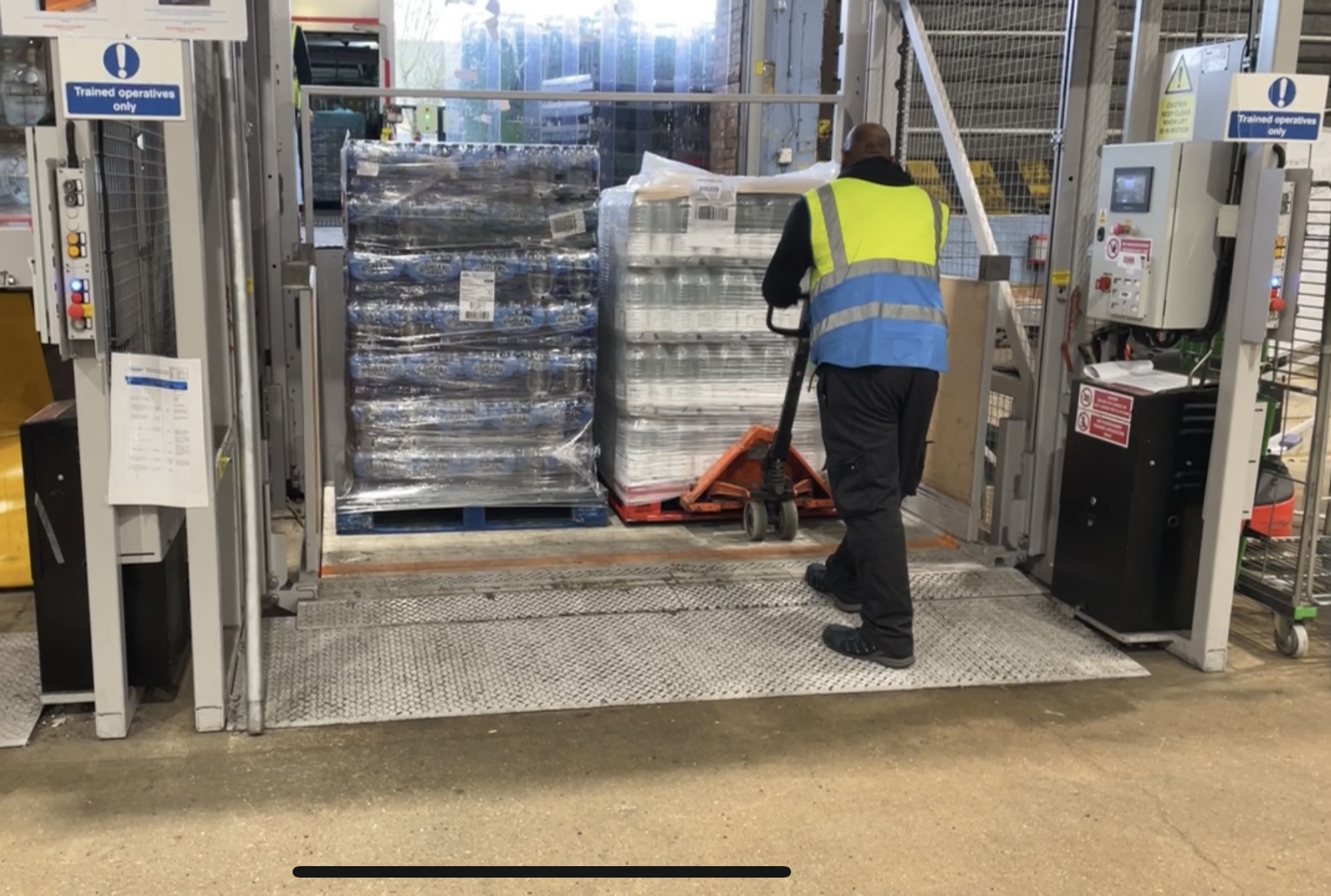

Integrated lead-on ramp to slimline lift platform*

The fixed, low-gradient ramp provides easy, ergonomic access from ground level to the 75mm lift platform. This reduces manual handling and speeds up loading

5 Bridge plate

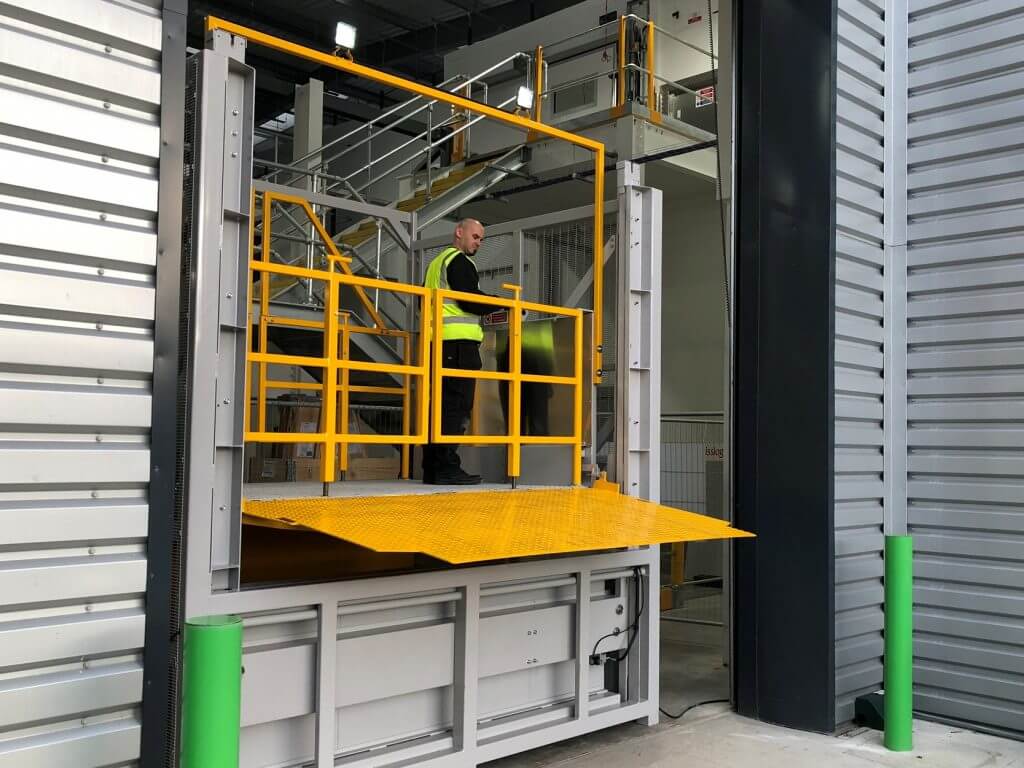

Auto-bridging plate

Hinges at pre-configured height to automatically bridge on to raised docking/warehouse area or in to vehicles. Auto-retracts as the lift platform lowers

6 Surround safety scaled

Automatic, surround fall-prevention system

Lift platforms fitted with mesh-clad 1100mm-high side rails. Dock-side ‘goalpost’ crossbar automatically prevents falls from raised areas on to lowered lift platform. Rear safety bars serve as mechanical interlock to prevent falls as platform raises

7 Interlocked safety scaled

Interlocked safety systems

Electrically interlocked: safety-edge at front of lift platform; emergency stop buttons; two-hand positive-pressure platform controls; optional traffic lights, light beam exclusion zone and safety gates

01 / 07

VEHICLE DOCK LIFT ANCILLARIES & OPTIONS

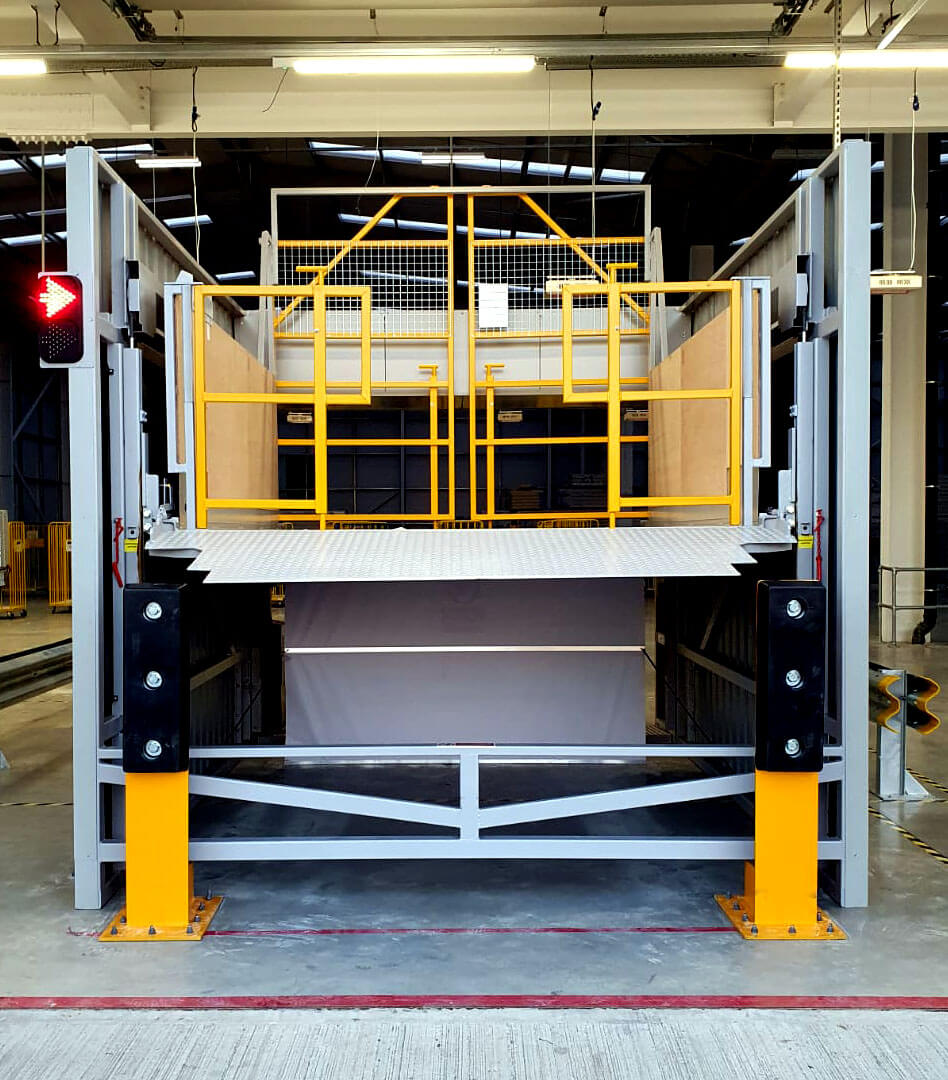

vehicle bumpers

Vehicle Bumpers

Anti-collision dock bollards
Traffic light 1 scaled

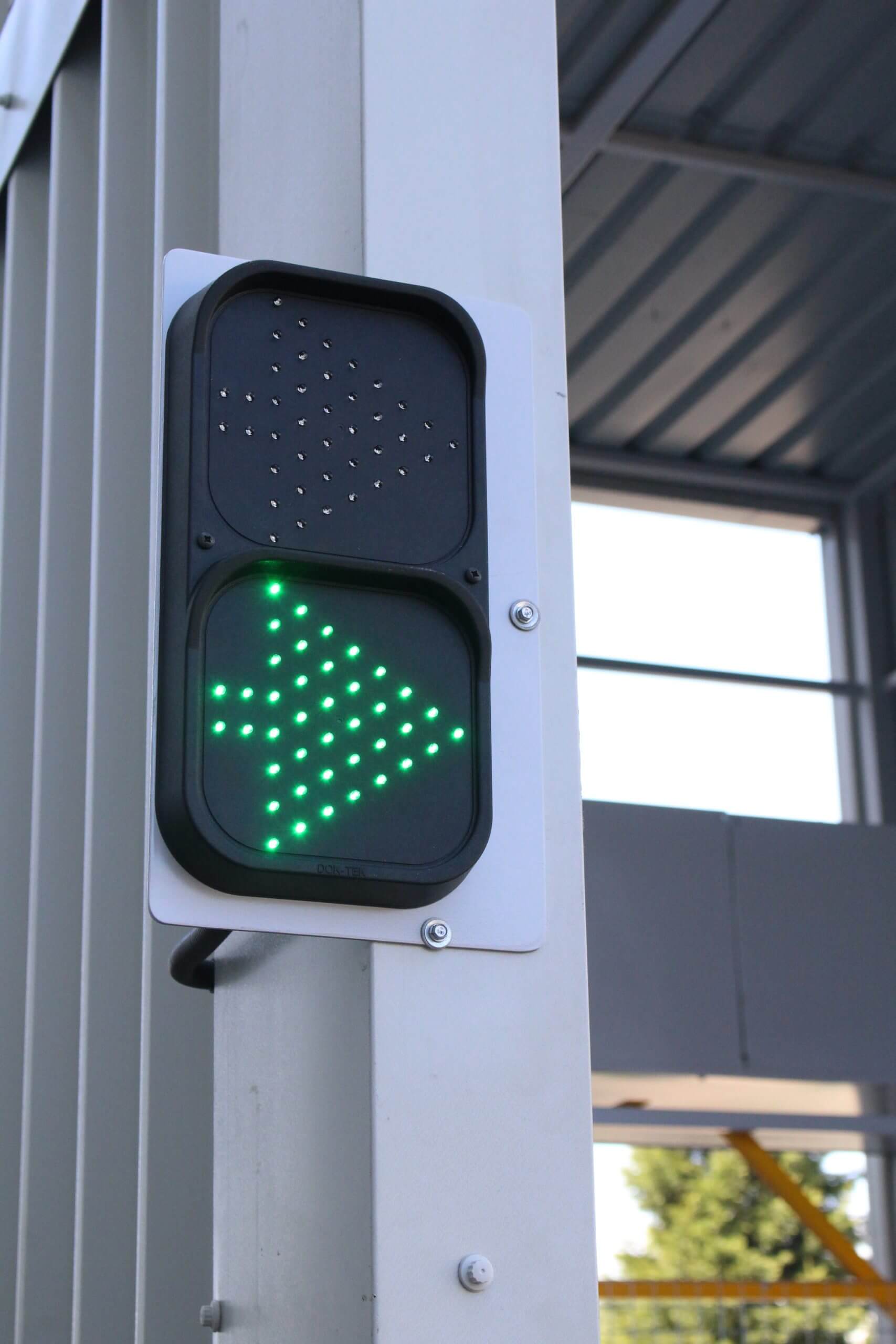

Traffic Lights

24V directional LED lights
Loading Lamp 1

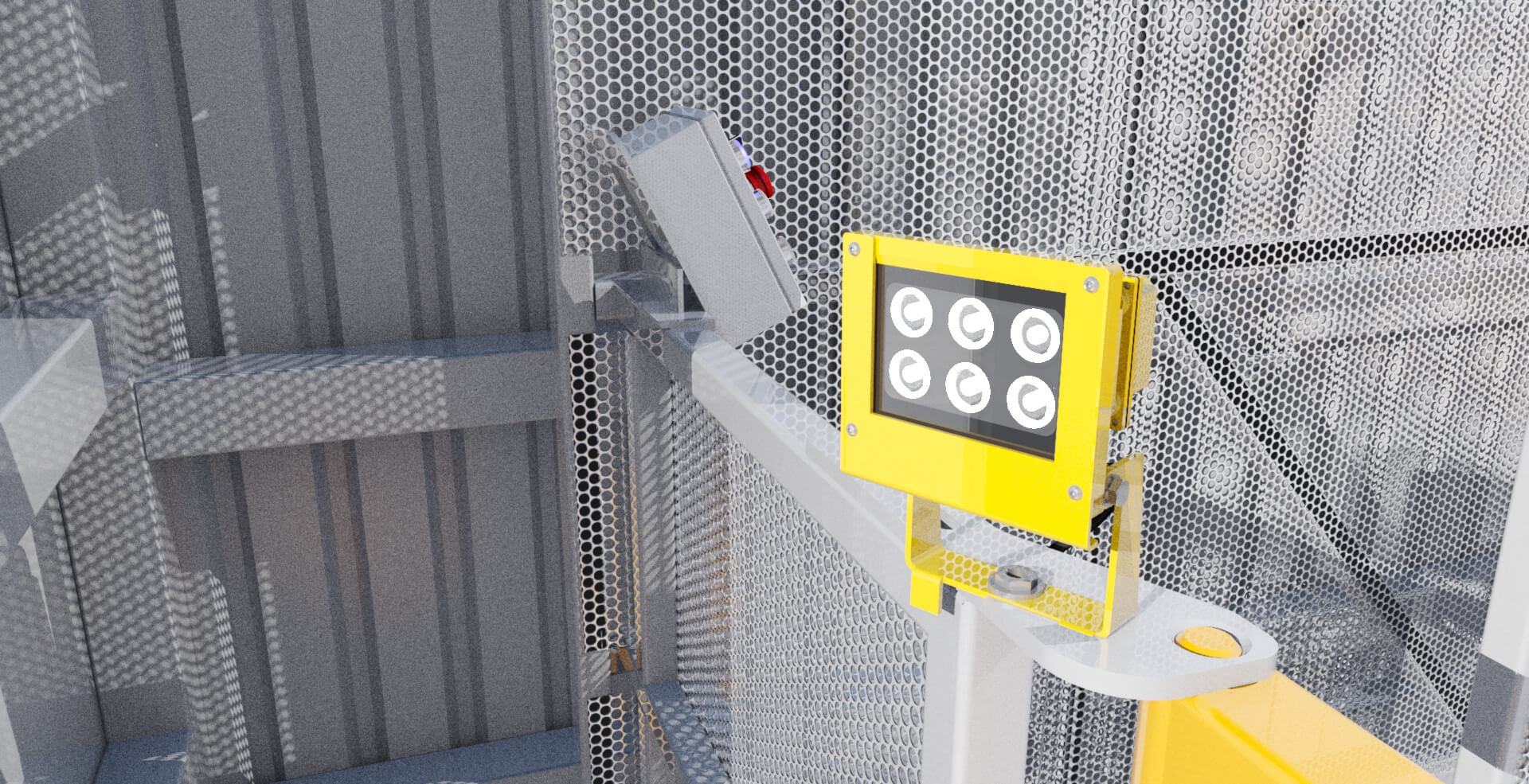

Loading Lamp

24V LED lighting for load area

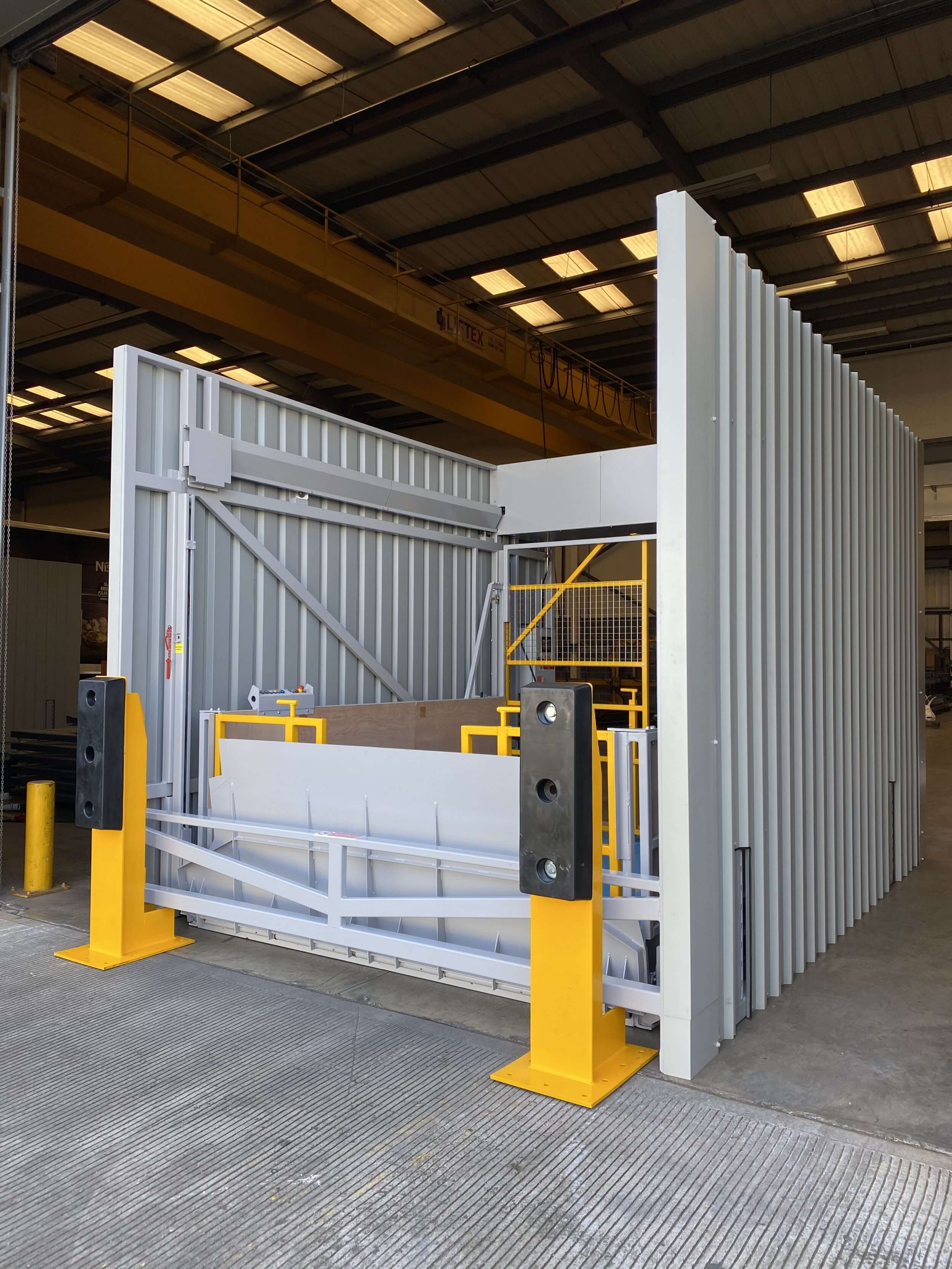

CLADDING scaled

Clad Sides

For external applications
Wheel guides

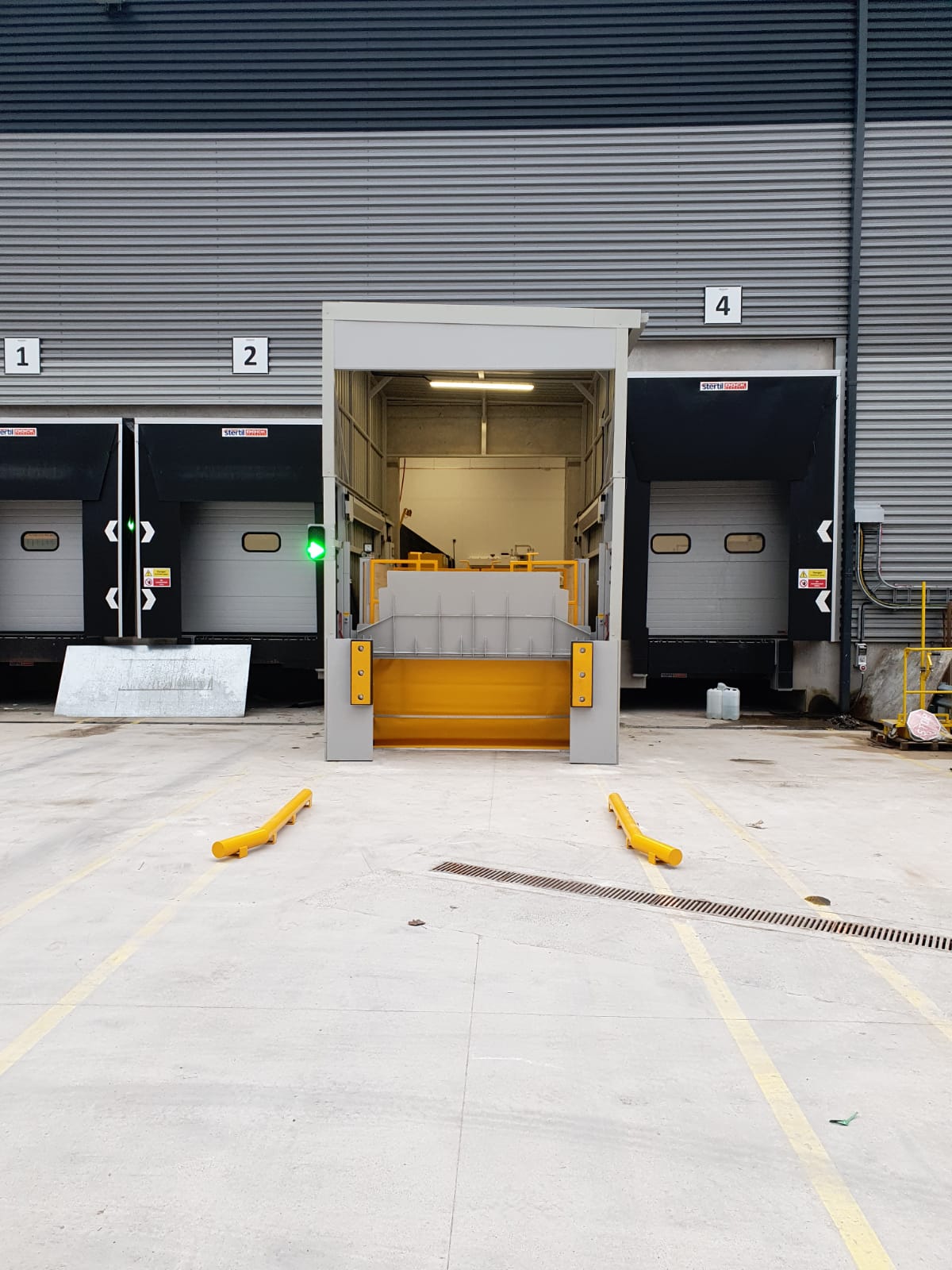

Wheel Guides

Aligns vehicles on dock

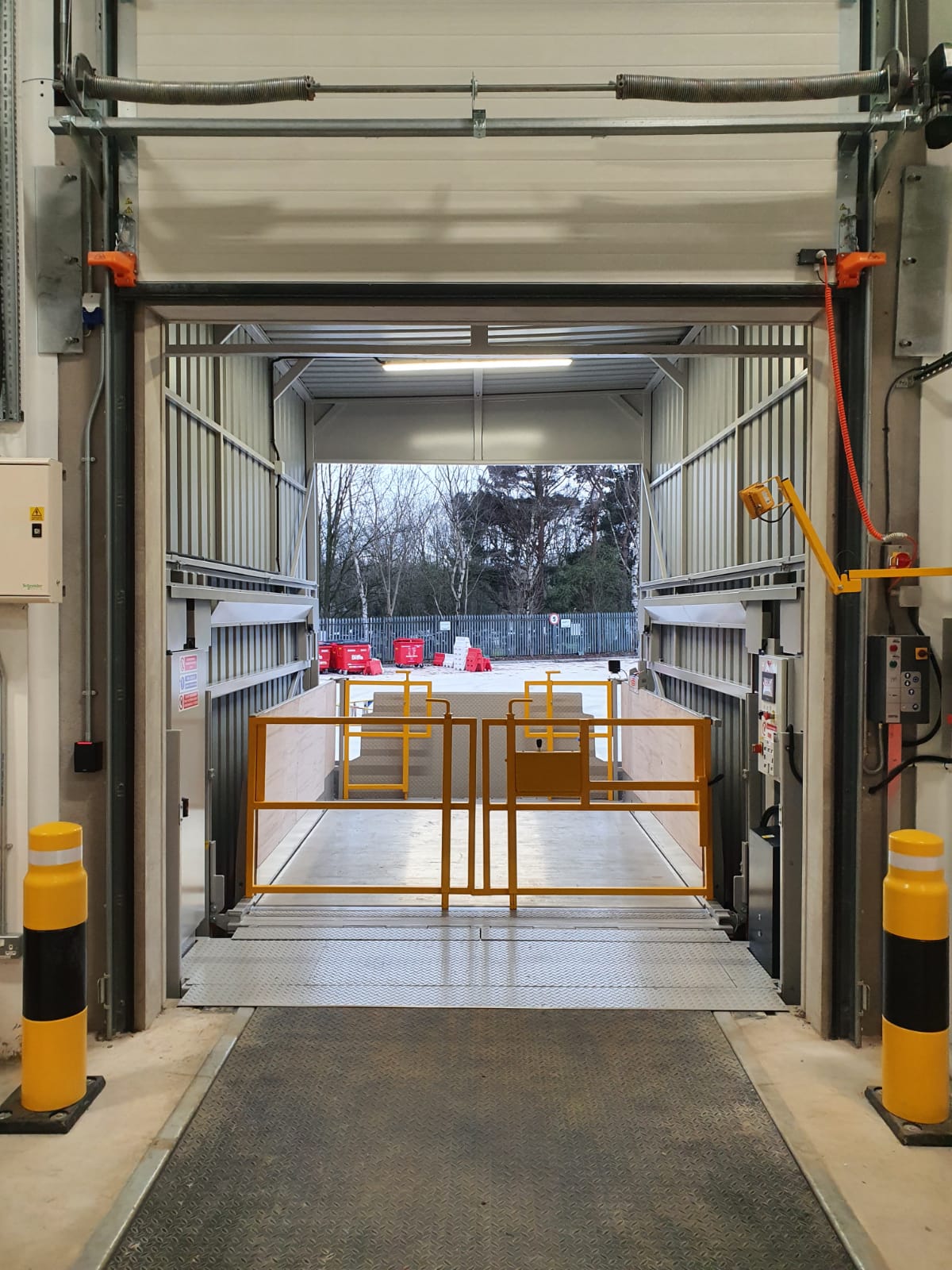

6 1 1

Safety Gates

For use with travelling operator
PVC blinds

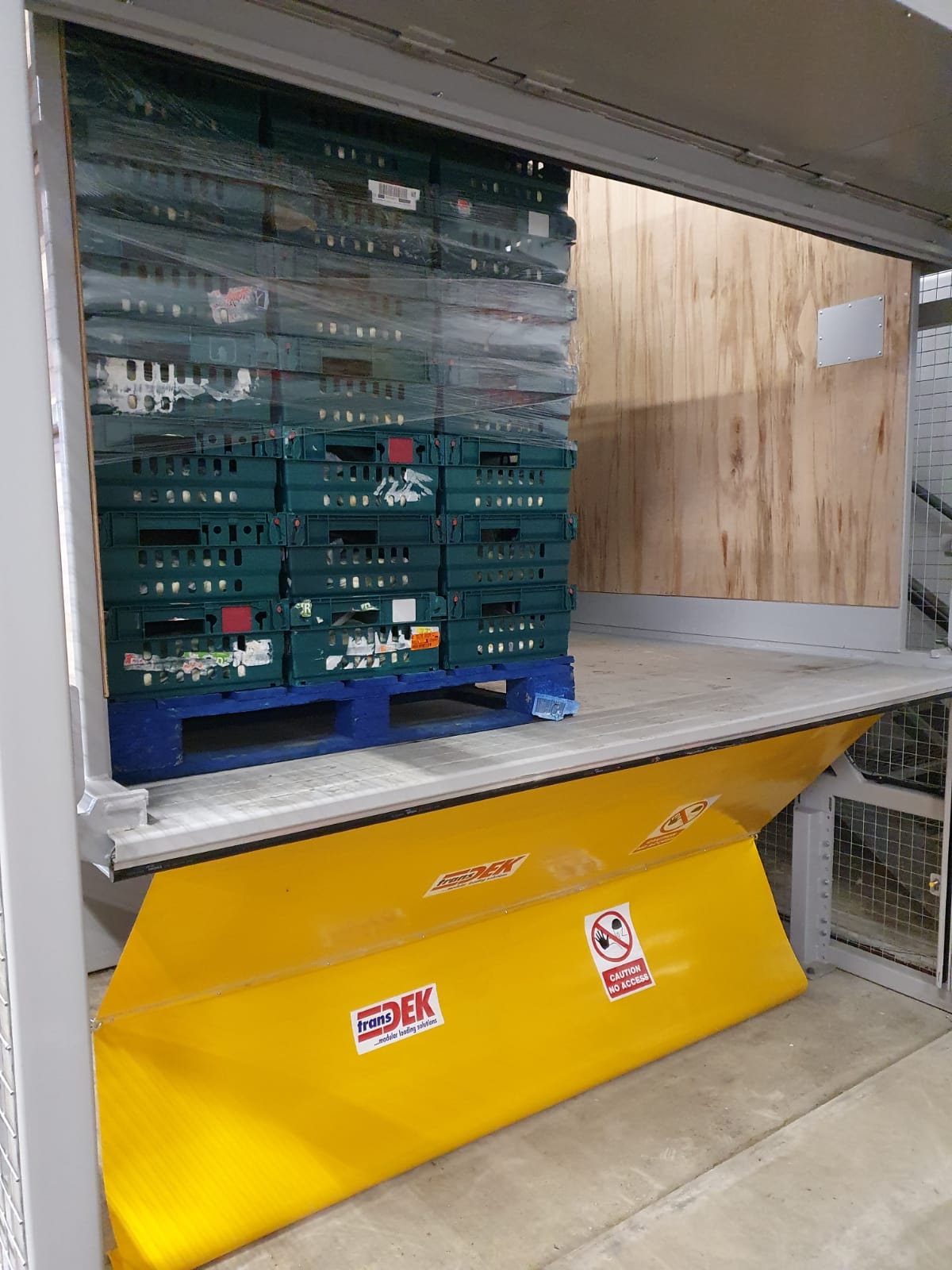

PVC Blinds

Extra safety under lift platform

WHY TRANSDEK’S VEHICLE DOCK LIFTS?

MODULAR

Surface-mounted, plug-and-play units; rapid-install 1 hour to 1 day; easily relocated

ENGINEERING STRENGTH

Rugged machines with intelligent ergonomics; built in the UK to last a lifetime

VERSATILITY

Instant solutions for short-term or lifetime operation in the dock, warehouse, factory or store

LOW-MAINTENANCE

Simple, robust, single-ram design; critical spares packages; rapid-diagnostic technology*; remote troubleshooting

SAFETY

Advanced, standard-raising safety features; CE-marked, BS/EN standard and Machinery Directive 2006/42/EC conformity

COMPETITIVE PRICING

Range of models and options to suit your specific needs; unrivalled like-for-like cost-effectiveness

DOCK LIFTS testimonial background scaled

Even during our pre-Christmas peak, we were able to use a skeleton three-man team to load vehicles. At the same time, loads can be picked and marshalled by one person with ease using the integrated person-riding dock lift.

Senior Supply Chain Development Manager at DFS

Transdek’s dock lift solution has transformed the way we handle goods off incoming containers.  Our staff would no longer be expected or indeed allowed to operate without it. Staff morale has improved with the reduced safety risks.

Warehouse Manager for Totes

Transdek UK’s mobile dock lift enables a single operative to load over 22,000 eggs on to delivery vehicles in just 30 minutes.

Site Manager at Noble Foods

We had an urgent need for a goods lift on grounds of handling safety and efficiency.  Our vehicles come in to raised docks, at 1.2 metres, but the rest of the building is at ground level. One of the main advantages of Transdek’s system is that it required no installation.

Operations Director at Steinhoff UK
