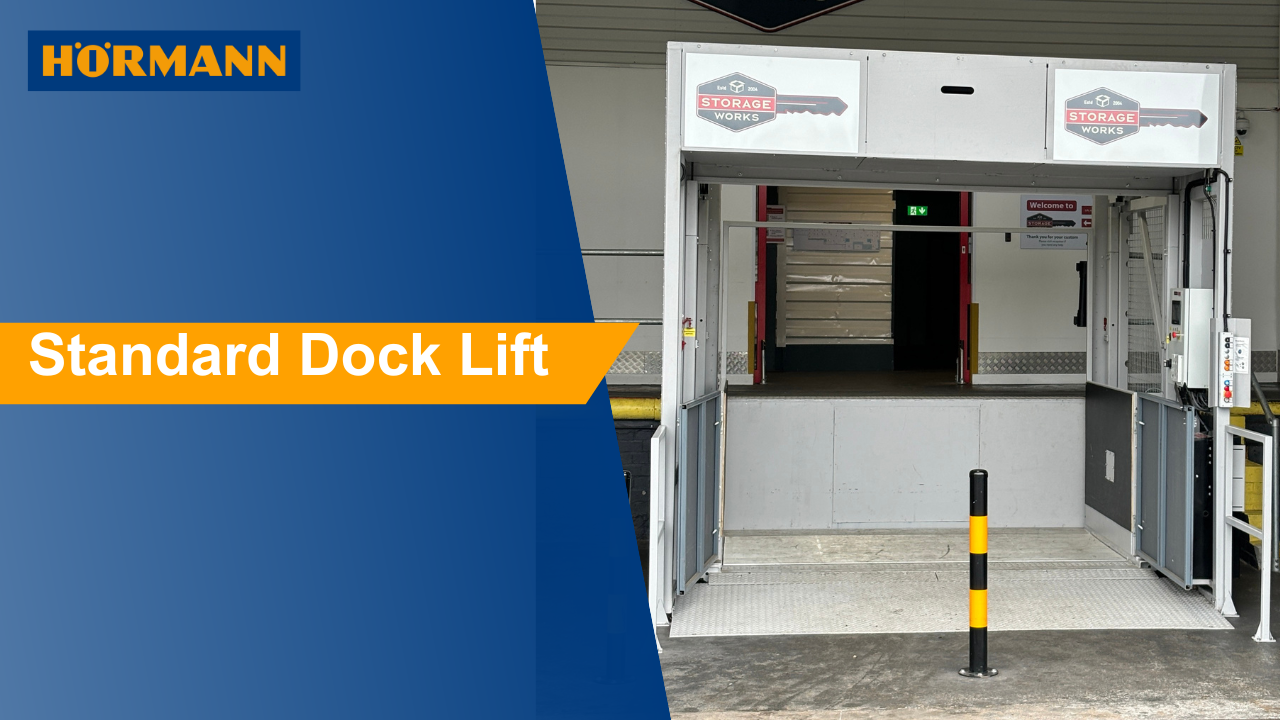

DOCK LIFTS

Modular, surface-mounted lifts to move products between split levels in the loading bay and warehouse

OUR DOCK LIFT RANGE

Stress-engineered for a lifetime of reliable operation, our dock lifts offer a safe, efficient, cost-effective means to move your products between levels in the loading bay and warehouse.

The lifts are delivered as plug-and-play, modular units that are fitted straight on to your yard or warehouse floor – an instant solution for your loading and lifting requirements. CE-marked and built in conformity with the Machinery Directive, they are designed with the optimum safety of your operators in mind.

Our range of modular dock lifts provides a highly versatile lifting solution – some models can be supplied in a mobile format for the ultimate in operational flexibility. Whatever your loading and lifting needs, we’d love to hear from you.

Contact Us

Dock Lifts

Modular, surface-mounted design*

Delivered as pre-tested, plug-and-play units for rapid installation straight on to the yard or warehouse surface in just ½ day. Self-levelling feet accommodates variable yard gradients and dock heights

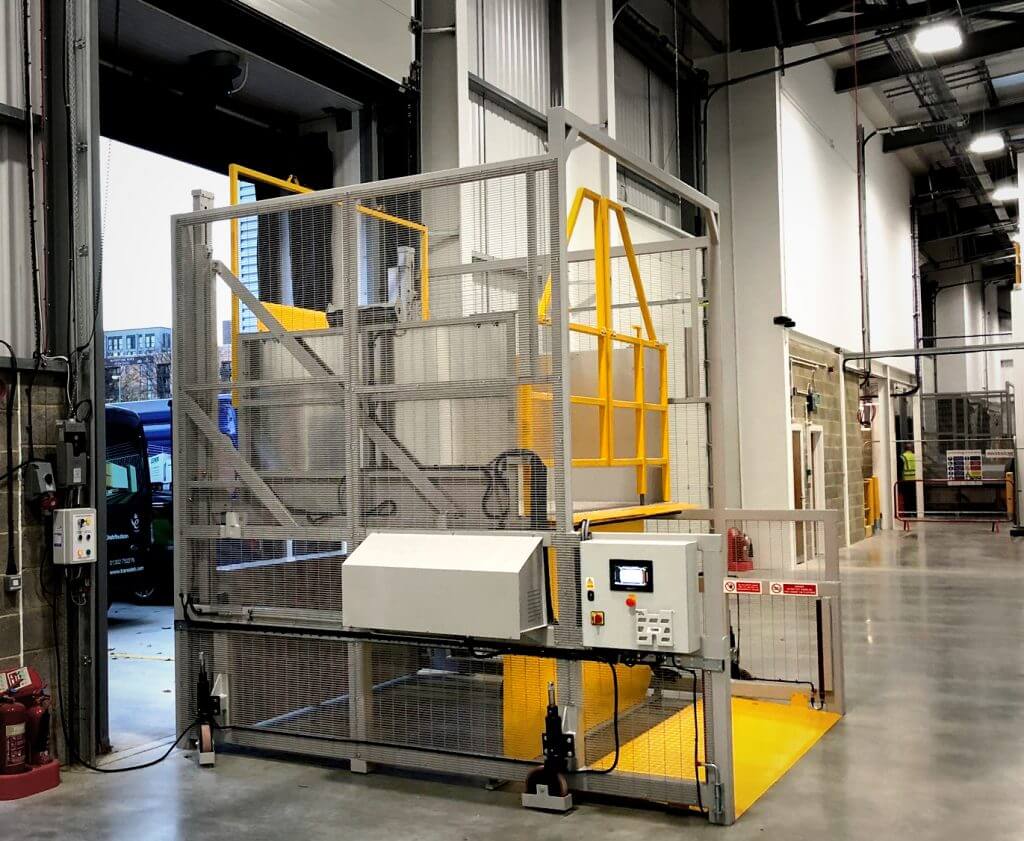

Stress-engineered superstructure

Lift platform and hydraulics mechanisms mounted in a stress-engineered chassis superstructure designed for reliable lifetime operation in rugged logistics environments. Optional dock bollards and bumpers in vehicle-loading applications

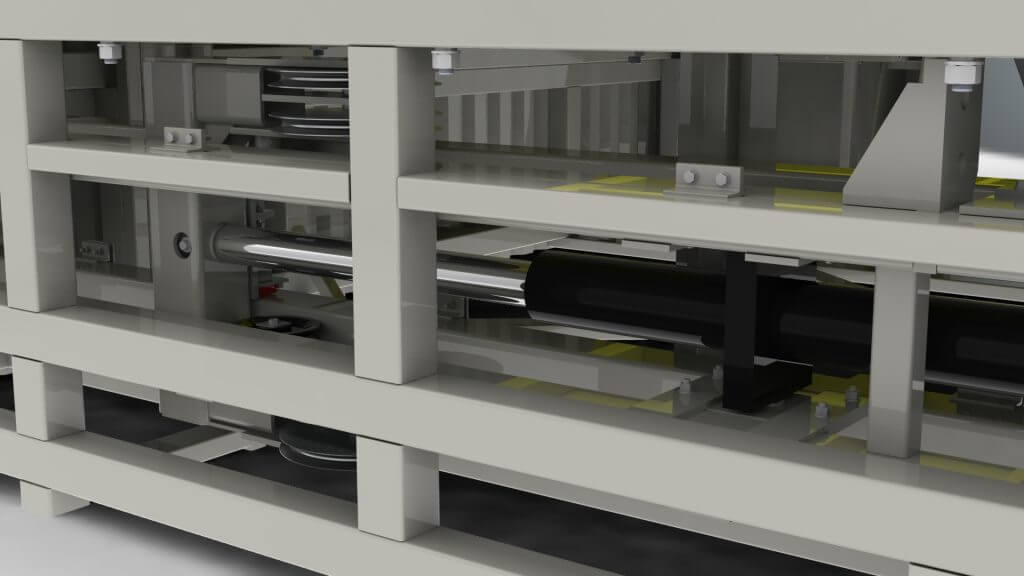

Single-ram hydraulics*

Simple, low-maintenance design. Gives raise/lower speed 2 x faster raise/lower than equivalent scissor lifts. Lift stroke provides ground to 1600mm range

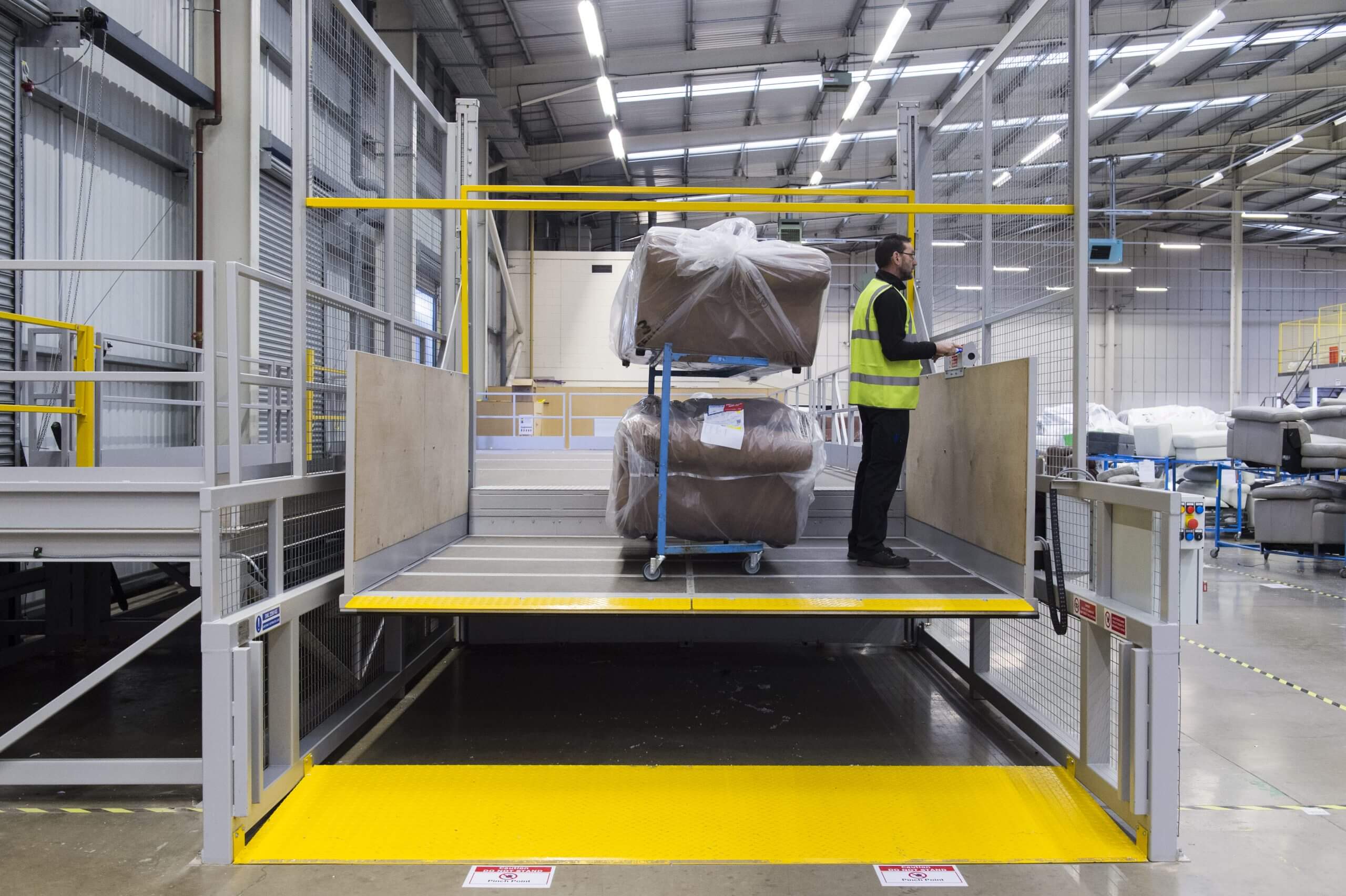

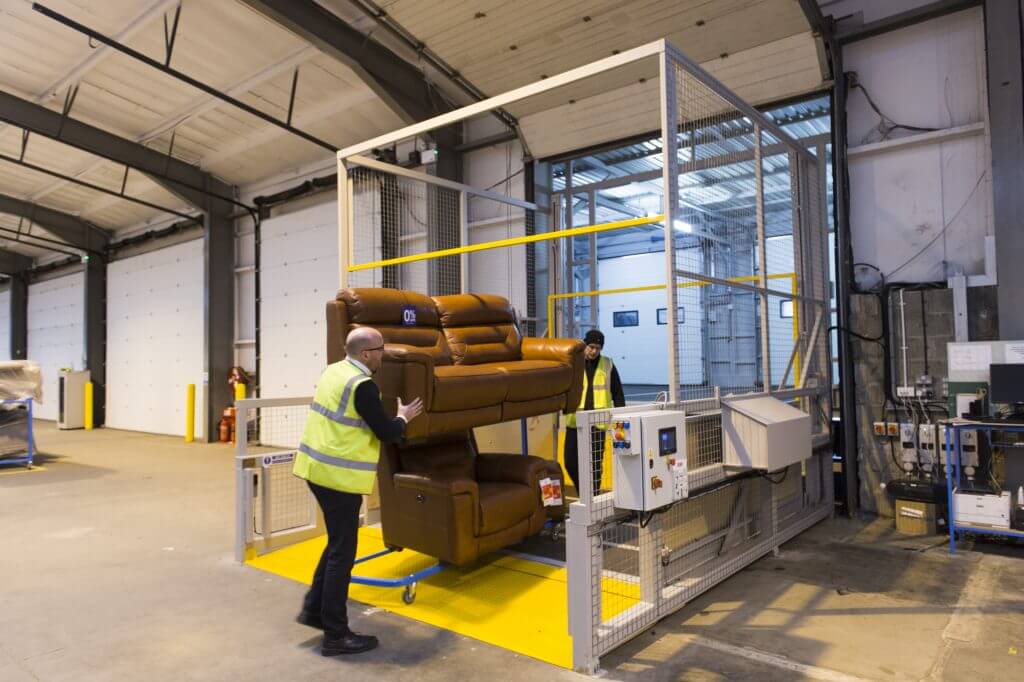

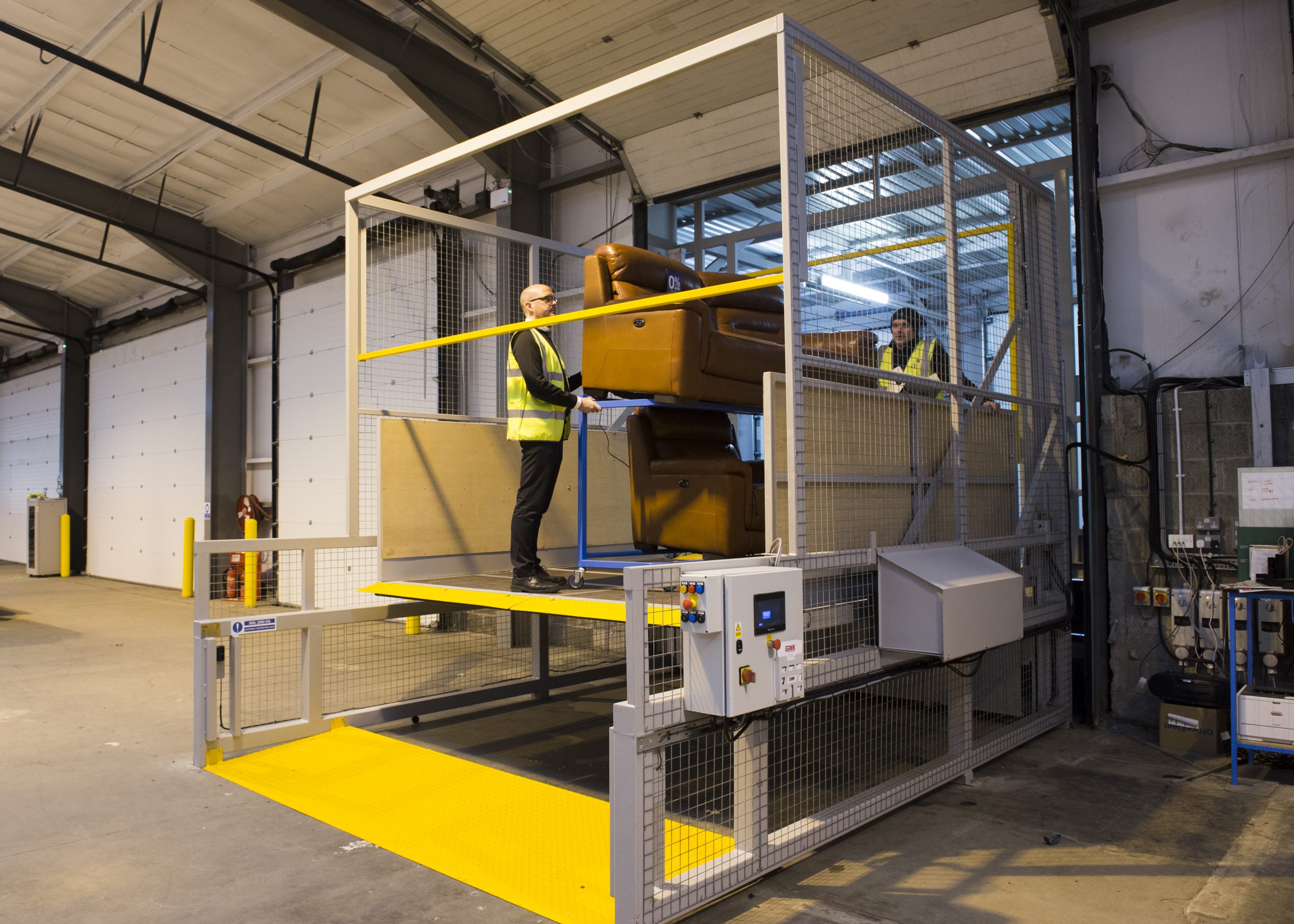

Integrated lead-on ramp to slimline lift platform*

The fixed, low-gradient ramp provides easy, ergonomic access from ground level to the 75mm lift platform. This reduces manual handling and speeds up loading

Auto-bridging plate

Hinges at pre-configured height to automatically bridge on to raised docking/warehouse area or in to vehicles. Auto-retracts as the lift platform lowers

Automatic, surround fall-prevention system

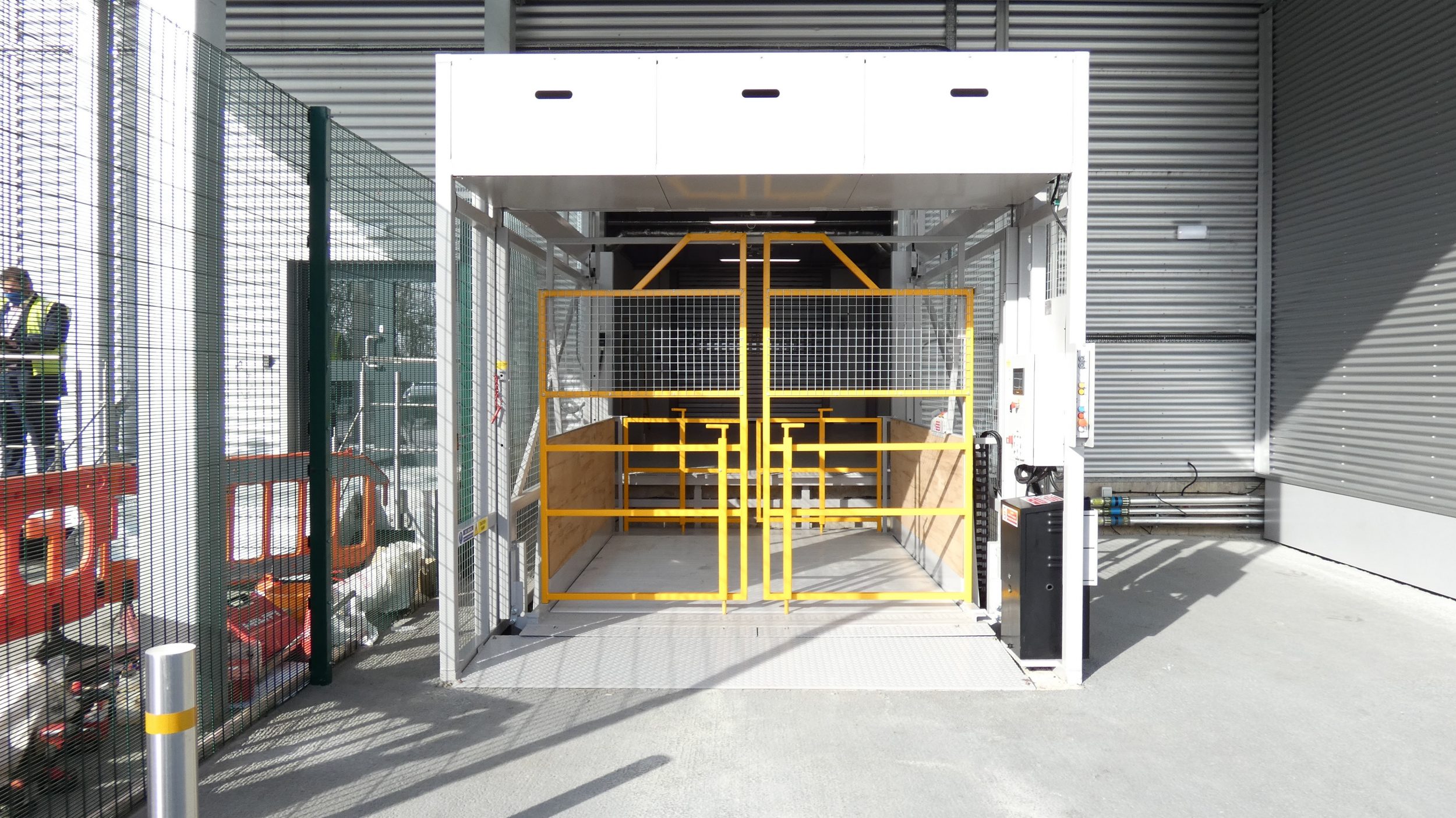

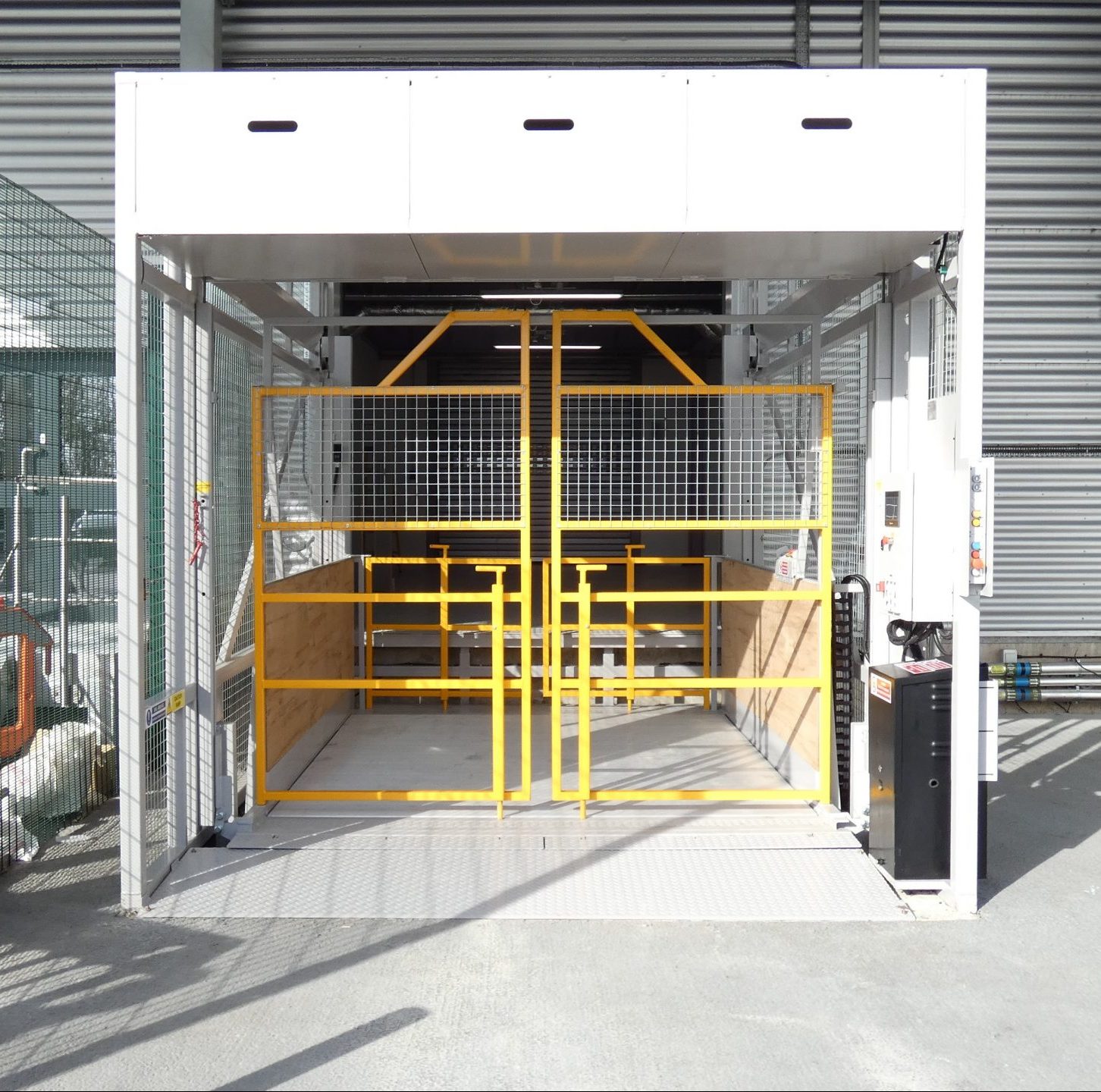

Lift platforms fitted with mesh-clad 1100mm-high side rails. Dock-side ‘goalpost’ crossbar automatically prevents falls from raised areas on to lowered lift platform. Rear safety bars serve as mechanical interlock to prevent falls as platform raises

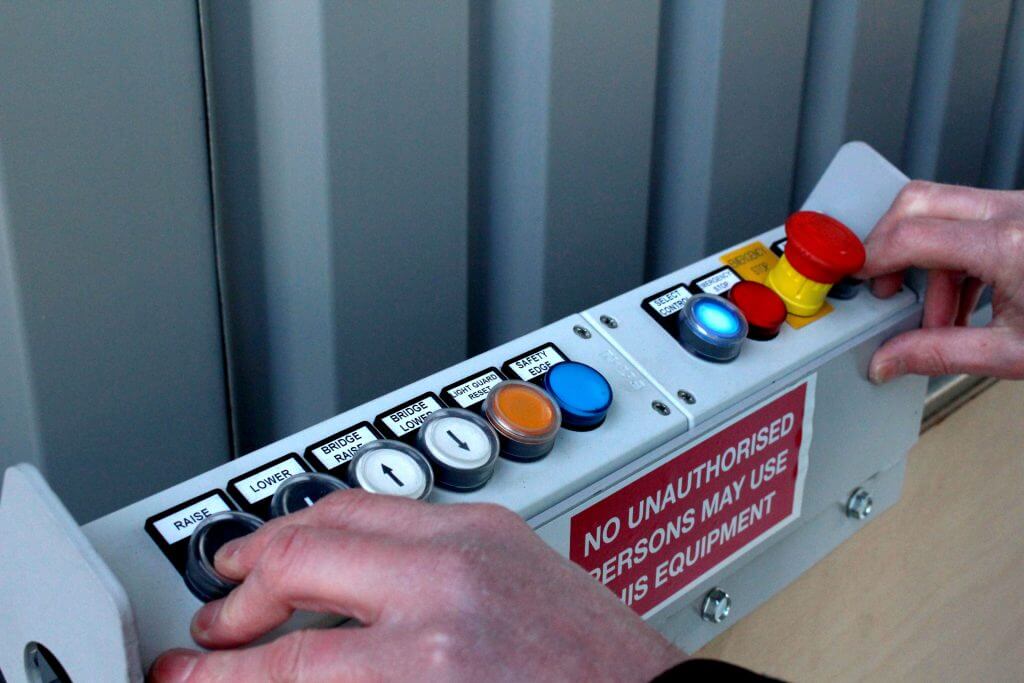

Interlocked safety systems

Electrically interlocked: safety-edge at front of lift platform; emergency stop buttons; when wheels engaged (mobile models); on two-hand, positive-pressure platform controls; and on (optional) traffic lights, light beam exclusion zone and safety gates

Wheels – on mobile lifts

Manually (wind-down) or hydraulically (via outboard, stub axles) dis/engaged wheels. When wheels disengaged, lift sits square on chassis base. 360o high-mobility wheels fitted with anti-crush steel toe guards. Mobile models also fitted with maneuvering handles

01 / 08

WHY TRANSDEK’S DOCK LIFTS?

MODULAR

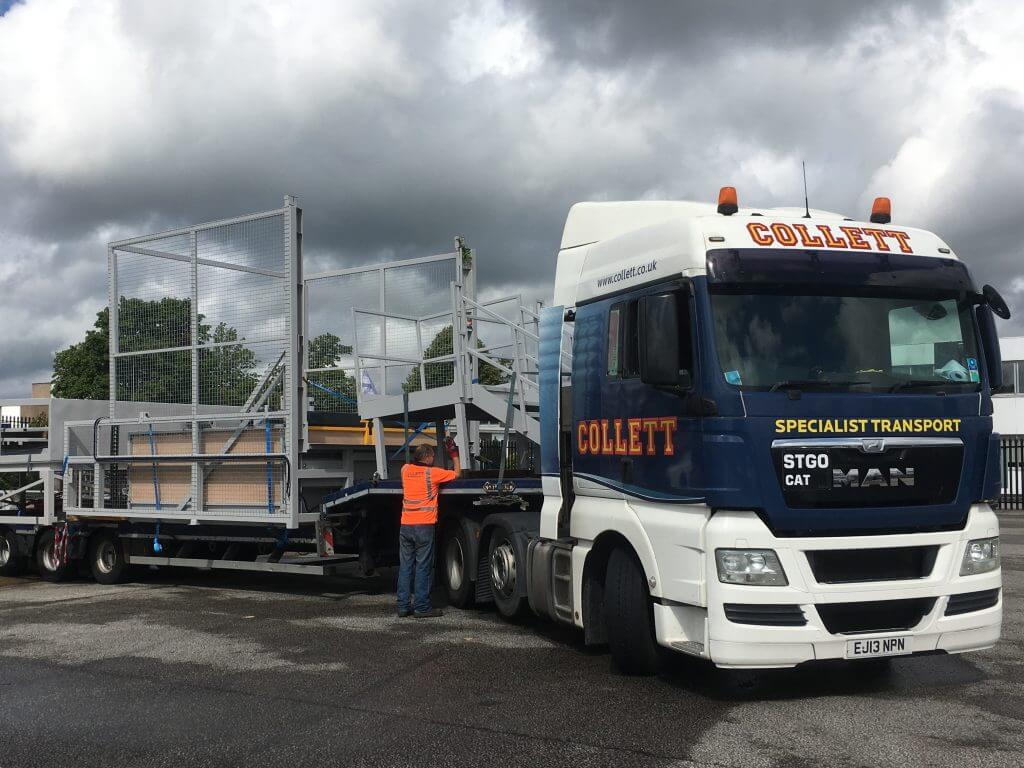

Surface-mounted, plug-and-play units; rapid-install 1 hour to 1 day; easily moved/ relocated

ENGINEERING STRENGTH

Rugged machines with intelligent ergonomics; built in the UK to last a lifetime

VERSATILITY

Instant solutions for short-term or lifetime operation; fixed & mobile options for operation in the dock, warehouse, factory or store

LOW-MAINTENANCE

Simple, robust, single-ram design; critical spares packages; rapid-diagnostic technology*; remote troubleshooting

SAFETY

Advanced, standard-raising safety features; CE-marked, BS/EN standard and Machinery Directive 2006/42/EC conformity

COMPETITIVE PRICING

Range of models and options to suit your specific needs; unrivalled like-for-like cost-effectiveness

International Patents Granted and Applied. For details on Transdek’s patents, click here

DOCK LIFT RANGE

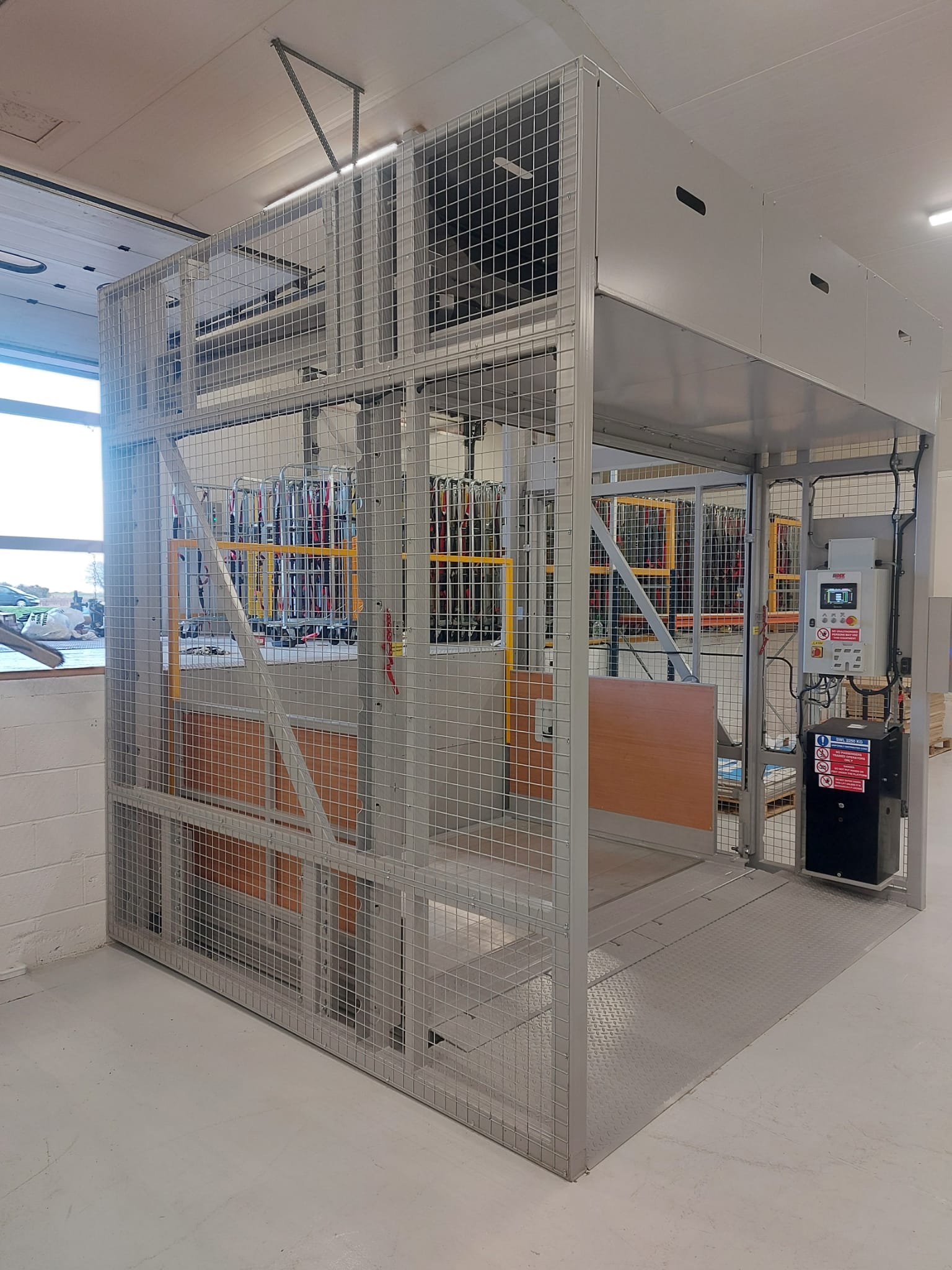

2 TONNE - 2 PALLET

External Pod Dimensions

3609mm(w) x 2102mm (l)

Platform Footprint

2450mm (w) x 1750mm (l)

Load Capacity

2 industry pallets @ max. 1000kg each (or equiv.)

Lifting Capacity

2000kg UDL

Lift Range

Ground to 1600mm (configured to dock height)

Lift Speed

80mm/s raise/lower

2 TONNE - 4 PALLET

External Pod Dimensions

3609mm(w) x 3879mm (l)

Platform Footprint

2450mm (w) x 3500mm (l)

Load Capacity

4 industry pallets @ max. 500kg each (or equiv.)

Lifting Capacity

2000kg UDL

Lift Range

Ground to 1600mm (configured to dock height)

Lift Speed

80mm/s raise/lower

2 TONNE – 3m X 3m

External Pod Dimensions

3609mm(w) x 3879mm (l)

Platform Footprint

3000mm (w) x 3000mm (l)

Load Capacity

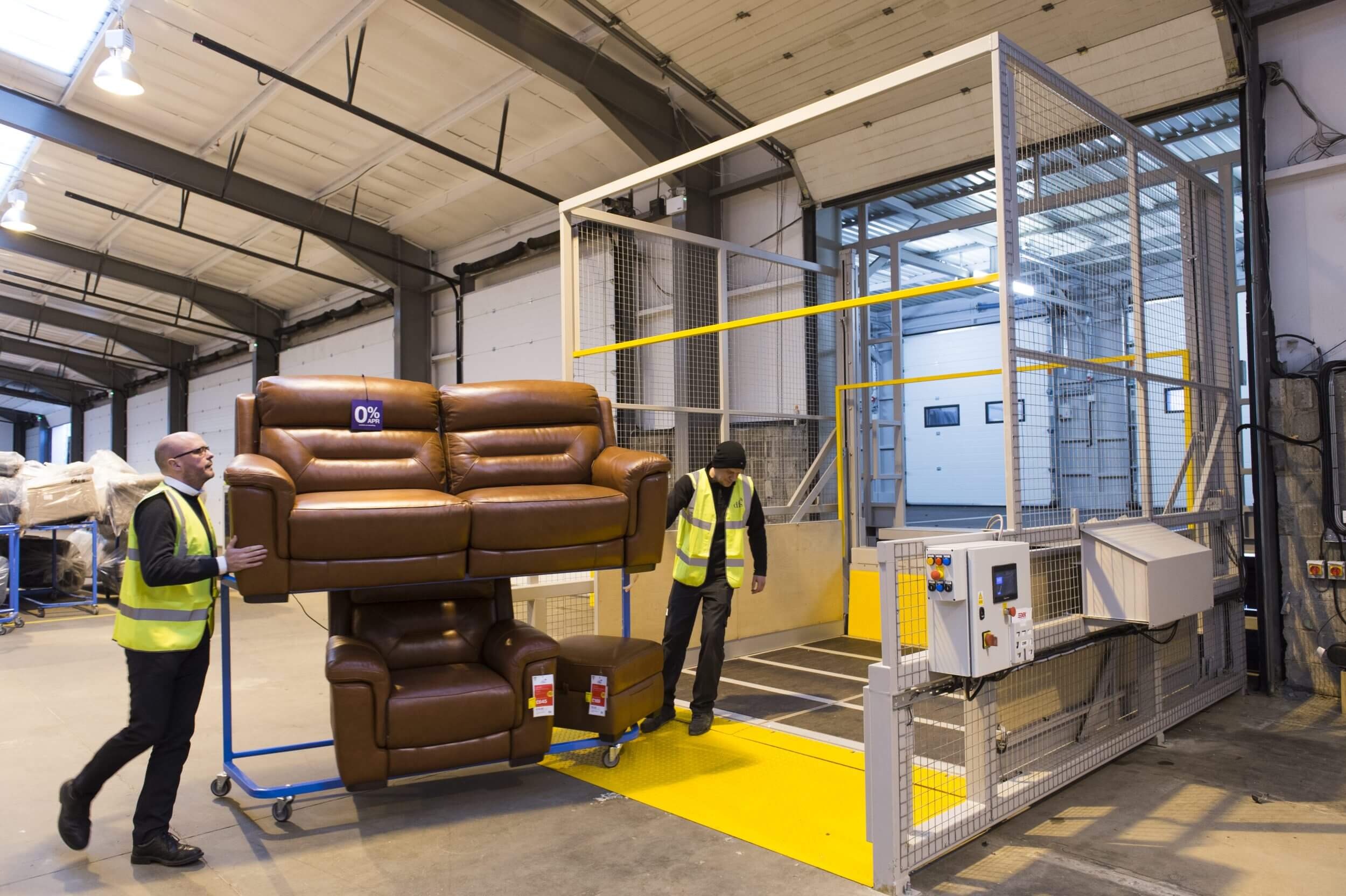

6 industry pallets @ max. 333kg each (or equiv.) Bulky, lightweight goods e.g. furniture

Lifting Capacity

2000kg UDL

Lift Range

Ground to 1600mm (configured to dock height)

Lift Speed

80mm/s raise/lower

4 TONNE - 4 PALLET

External Pod Dimensions

3609mm(w) x 3879mm (l)

Platform Footprint

2450mm (w) x 3500mm (l)

Load Capacity

4 industry pallets @ max. 1000kg each (or equiv.)

Lifting Capacity

4000kg UDL

Lift Range

Ground to 1600mm (configured to dock height)

Lift Speed

80mm/s raise/lower

TURNKEY PROJECT MANAGEMENT

Alongside our loading bay products, we offer a close working partnership to ensure you get exactly the right solutions to maximise safety and efficiency at each of your bays and sites, and across your entire distribution network.

We provide a one-stop shop that, depending on your loading bay needs, includes: consulting with your loaders, drivers, architects and managers; conducting site surveys and feasibility studies; submitting multiple CAD design options; loading compatibility trials; and customising your products.

Finally, our dedicated project management team will oversee each stage of in-house manufacture and installation, before training your team, commissioning the products and handing over the keys.

Find out More

FINANCE & RENTAL

We are able to provide a range of finance options for our customers, as an alternative to outright capital purchase. This flexibility makes the many benefits of our modular loading bay solutions even more accessible.

Bespoke finance packages can be arranged by our in-house finance team or via your preferred finance partner. We work with all major leasing providers, to offer equipment on:

Hire purchase, finance lease or short/long term operating lease.

CONTACT US

DOCK LIFT ANCILLARIES & OPTIONS

Wheels

Weather-proof for exterior use

Vehicle Bumpers

Anti-collision dock bollards

Traffic Lights

24V directional LED lights

Loading Lamp

24V LED lighting for load area

Aluminium Lining

2mm lining beneath handrails

Clad Sides

For external applications

Wheel Guides

Aligns vehicles on dock

Even during our pre-Christmas peak, we were able to use a skeleton three-man team to load vehicles. At the same time, loads can be picked and marshalled by one person with ease using the integrated person-riding dock lift.

Senior Supply Chain Development Manager at DFS

Transdek’s dock lift solution has transformed the way we handle goods off incoming containers.  Our staff would no longer be expected or indeed allowed to operate without it. Staff morale has improved with the reduced safety risks.

Warehouse Manager for Totes

Transdek UK’s mobile dock lift enables a single operative to load over 22,000 eggs on to delivery vehicles in just 30 minutes.

Site Manager at Noble Foods

We had an urgent need for a goods lift on grounds of handling safety and efficiency.  Our vehicles come in to raised docks, at 1.2 metres, but the rest of the building is at ground level. One of the main advantages of Transdek’s system is that it required no installation.

Operations Director at Steinhoff UK
