DOUBLE DECK LIFTS

Award-winning modular lifts fitted in 1-2 days for the fast, safe, low-maintenance loading of all fixed double deck trailers

OUR DOUBLE DECK LOADING SOLUTIONS

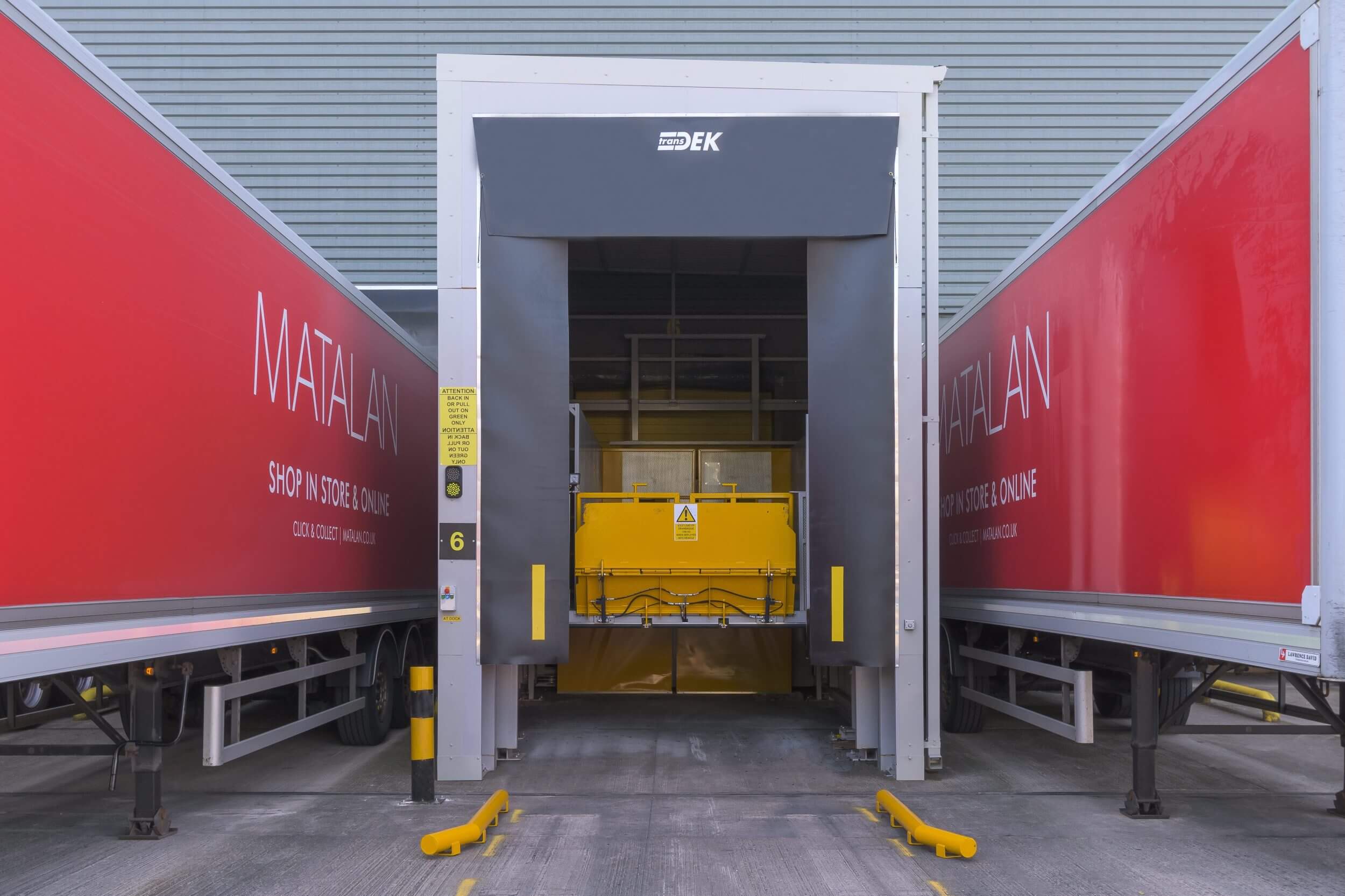

Our award-winning double deck lifts are designed to seamlessly integrate fixed double deck trailers in to your distribution network. Combining engineering strength with precision ergonomics, our lifts provide the fastest, safest and most reliable means to load double deck trailers.

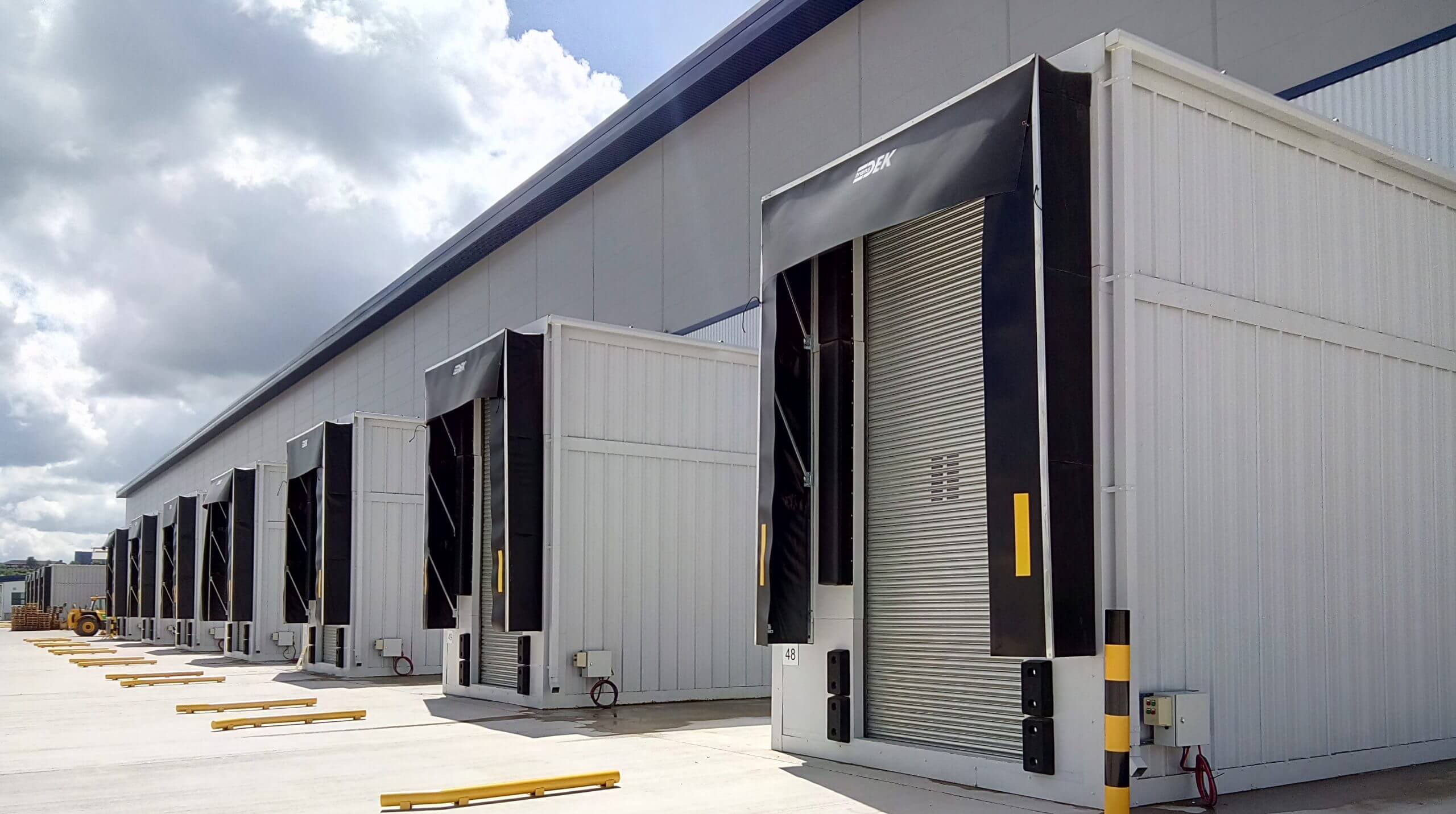

Each modular loadhouse unit is pre-tested, pre-clad and delivered in a plug-and-play format* for installation straight on to your yard in just 1 to 2 days. Our rugged, low-maintenance designs guarantee you a lifetime of dependable service.

No matter whether you run the tallest UK double deckers, or ultra-low-floor, wheelbox-type vehicles, our unique hydraulics configuration* ensures you can service all double deck types, without additional civil works. Each lift is customised to give you the most efficient loading possible for your specific operation.

CONTACT US

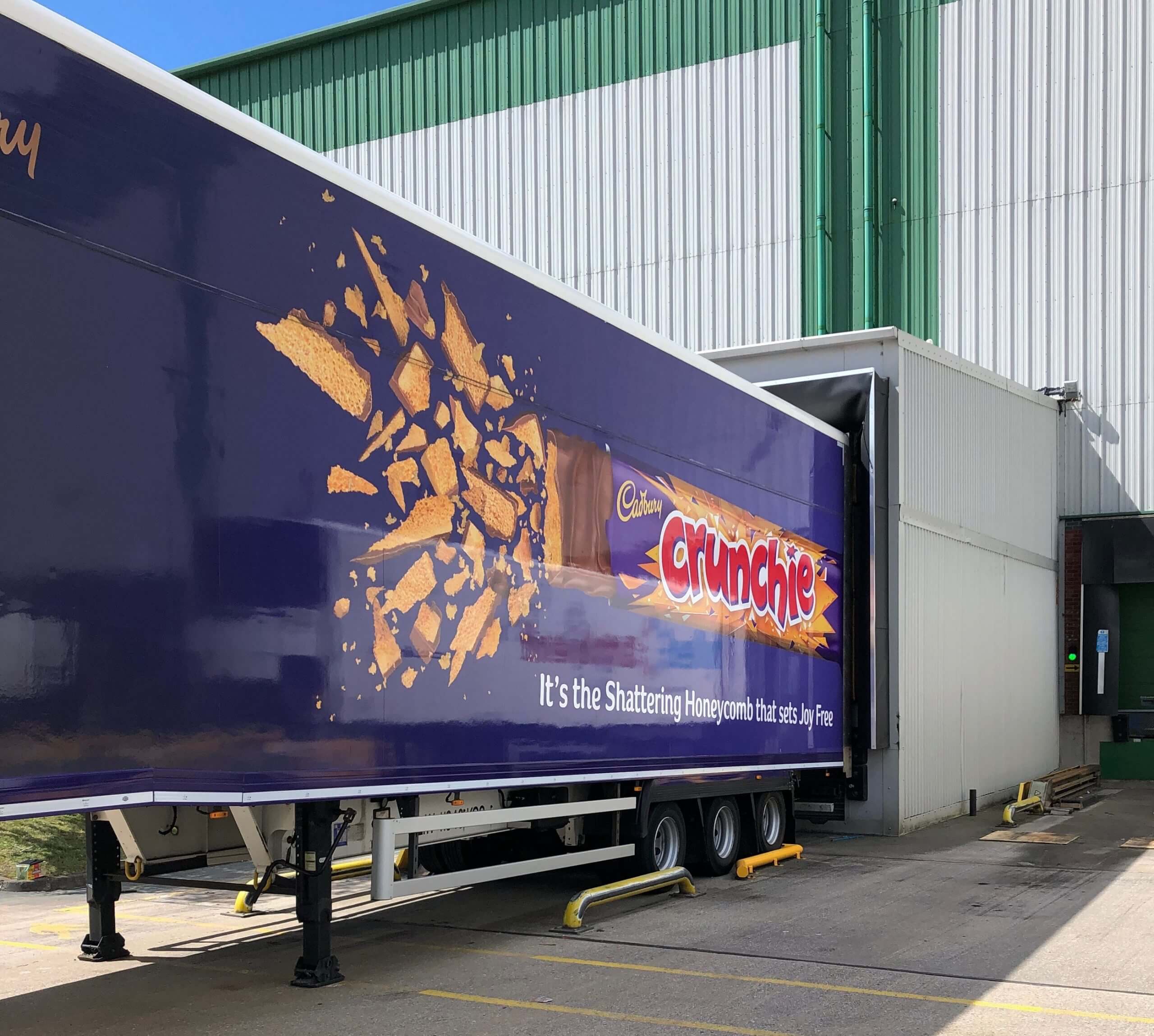

Double Deck Lifts

Modular, plug-and-play design*

Delivered as pre-clad, pre-tested, surface-mounted units* for fitment straight on to yard or internal precast slot. Self-levelling feet and adjustable dock plate accommodate variable yard gradients and dock heights

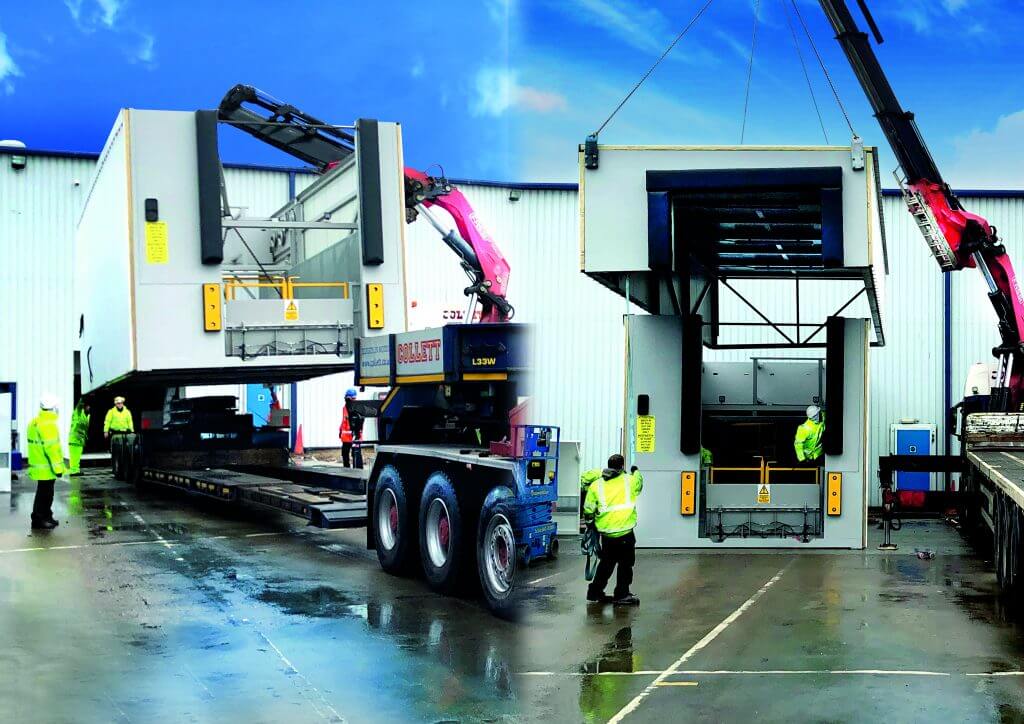

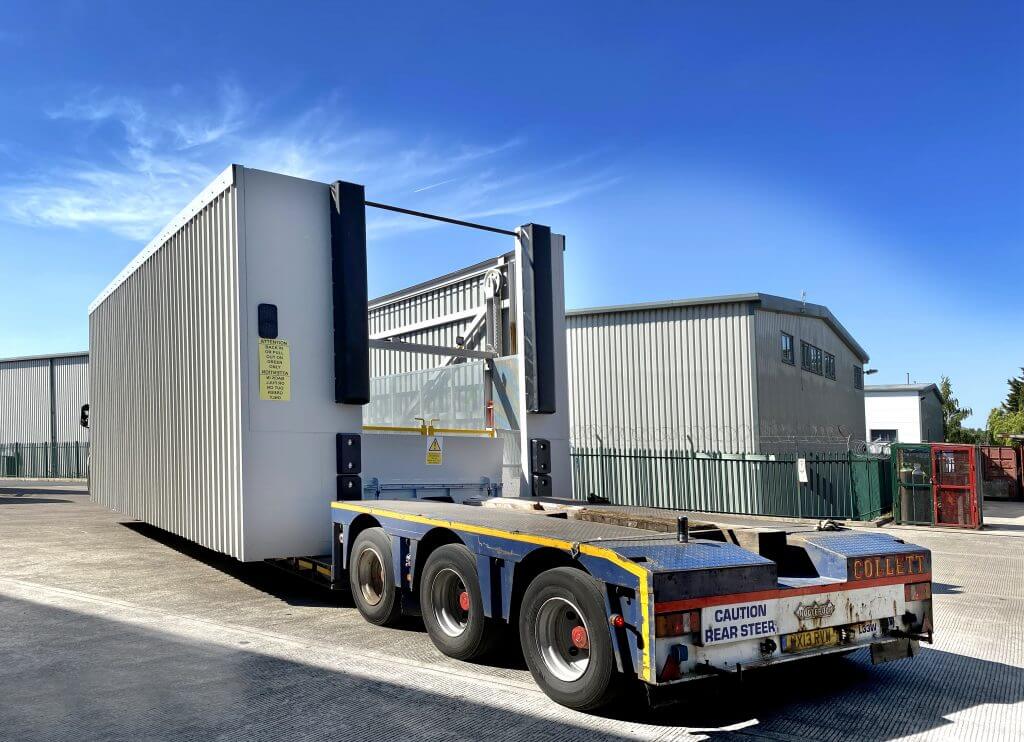

Two-section loadhouse for rapid install*

Transported in two sections, roof and base, for rapid, 1-to-3-day install* – minimises cost and disruption of install. Easily moved, if required – avoids dilapidation charges and write-off/re-purchase costs

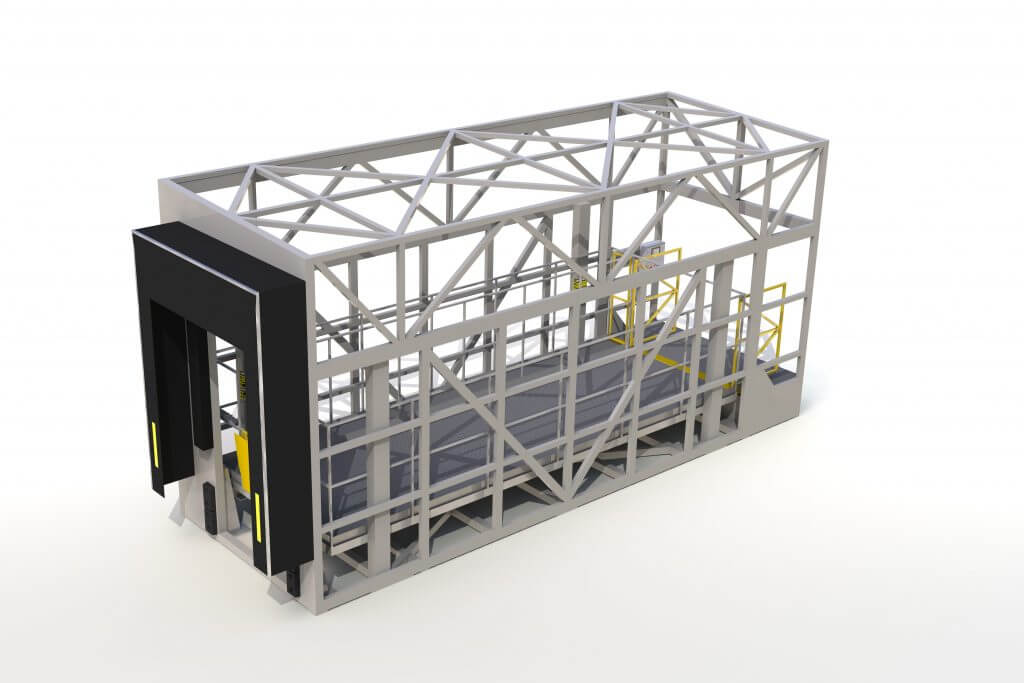

Stress-engineered loadhouse

Loadhouse and lift structure engineered for durable, lifetime operation in rugged logistics environments. Integrated dock bumpers and impact-dispersal system minimise potential damage from reversing vehicles

Single-ram hydraulics*

Simple, low-maintenance design (compared to scissor lifts’ 2 to 16 rams). Lift stroke compatible with loading all vehicles – including ultra-low-floor double deckers and home delivery vans

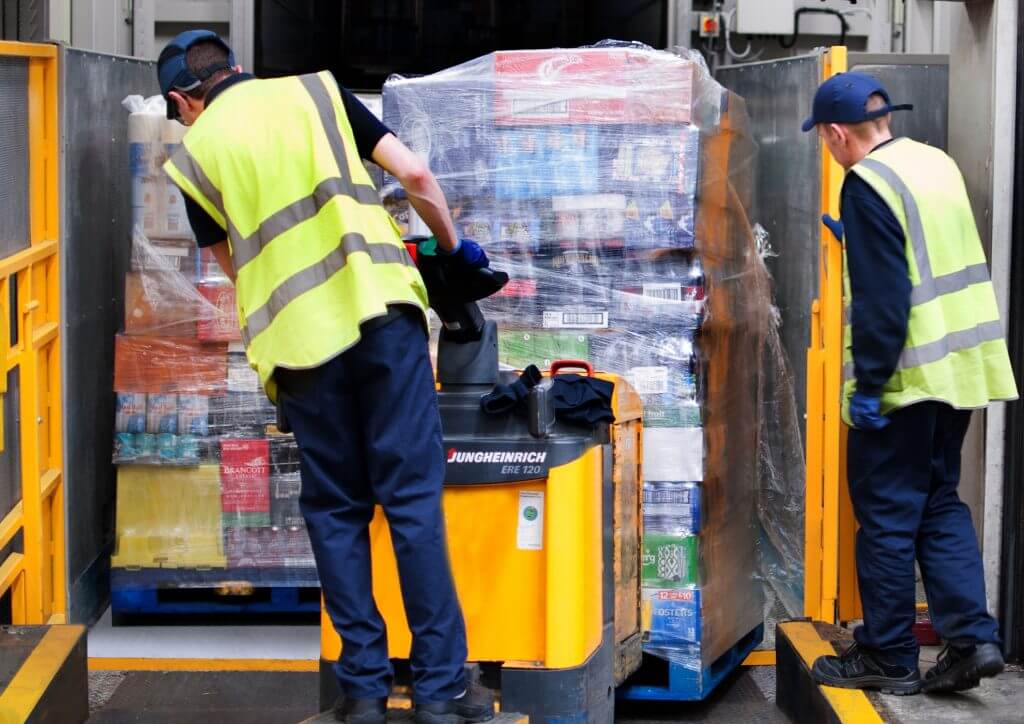

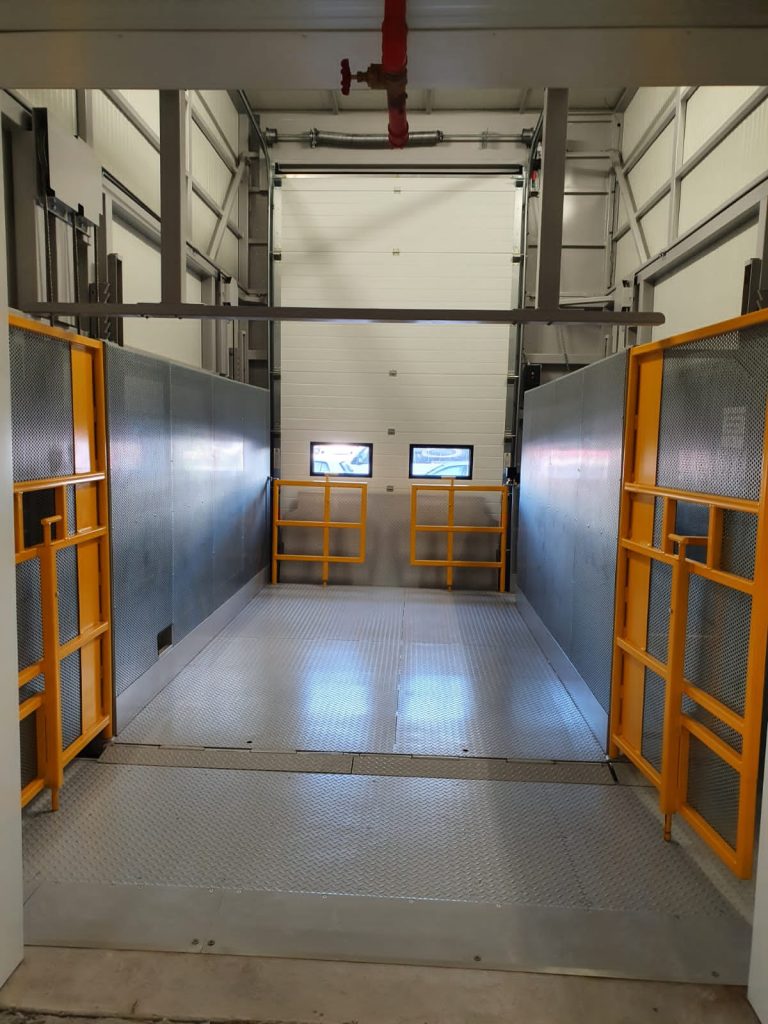

Rugged lift platforms

High point-load lift platforms engineered to withstand MHE operations for the fastest loading. Lifting mechanisms also give 2-3 times faster raise/lower speed than scissor lifts

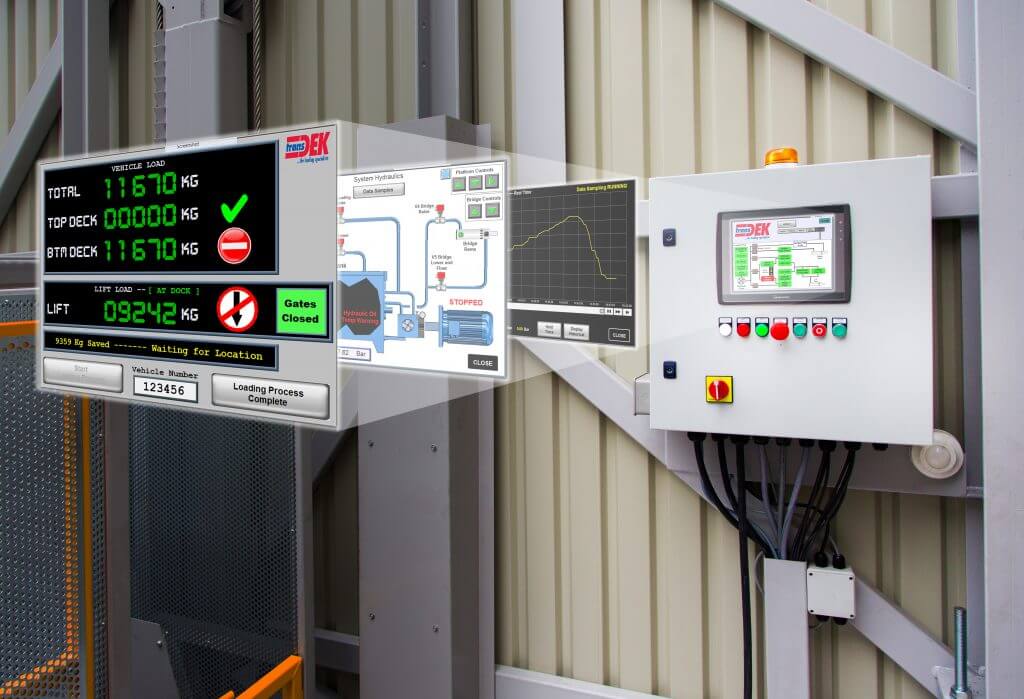

HMI touchscreen controls*

Technologically-advanced main control panel provides rapid-diagnostics pictogram for fast, simple self-fix, which minimises downtime. Mobile login option further reduces call-out costs and enables remote troubleshooting

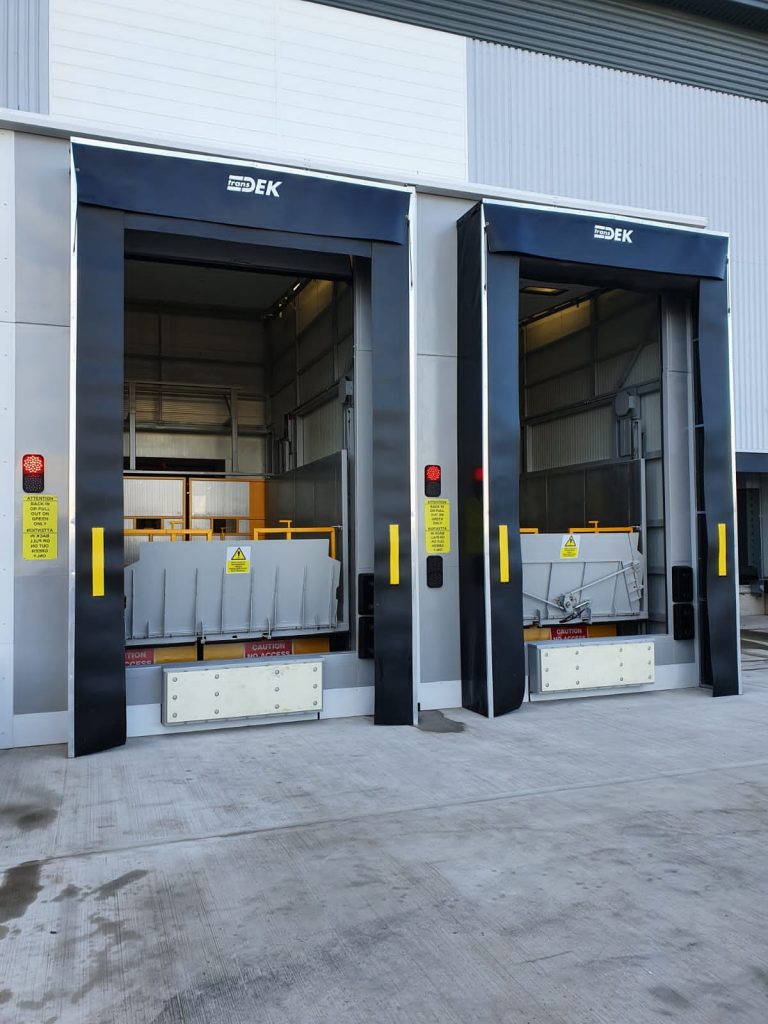

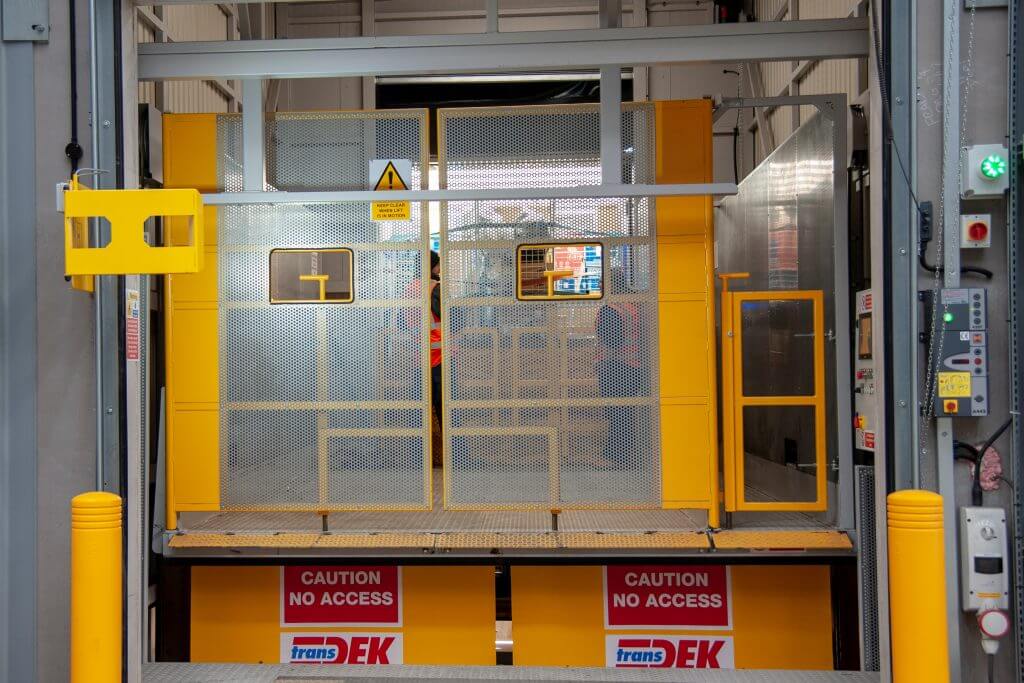

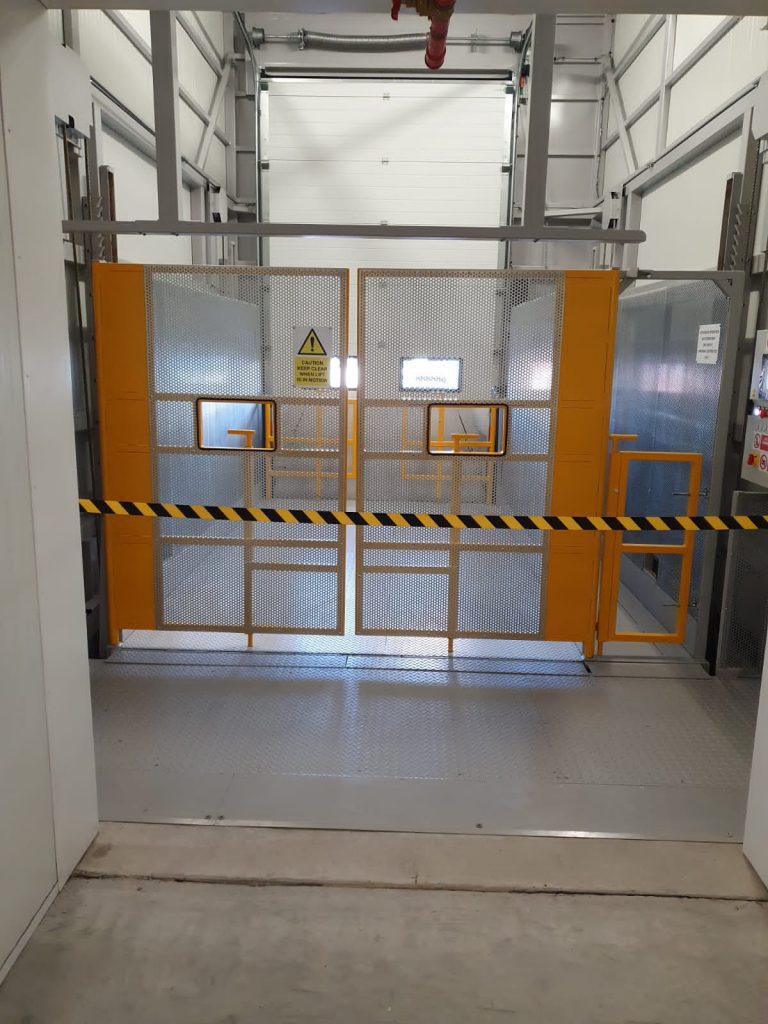

Twin-interlocked safety gates

Front and rear material gates are both electrically and mechanically interlocked. The front gates lock out to provide safety rails along the side of the bridge plate

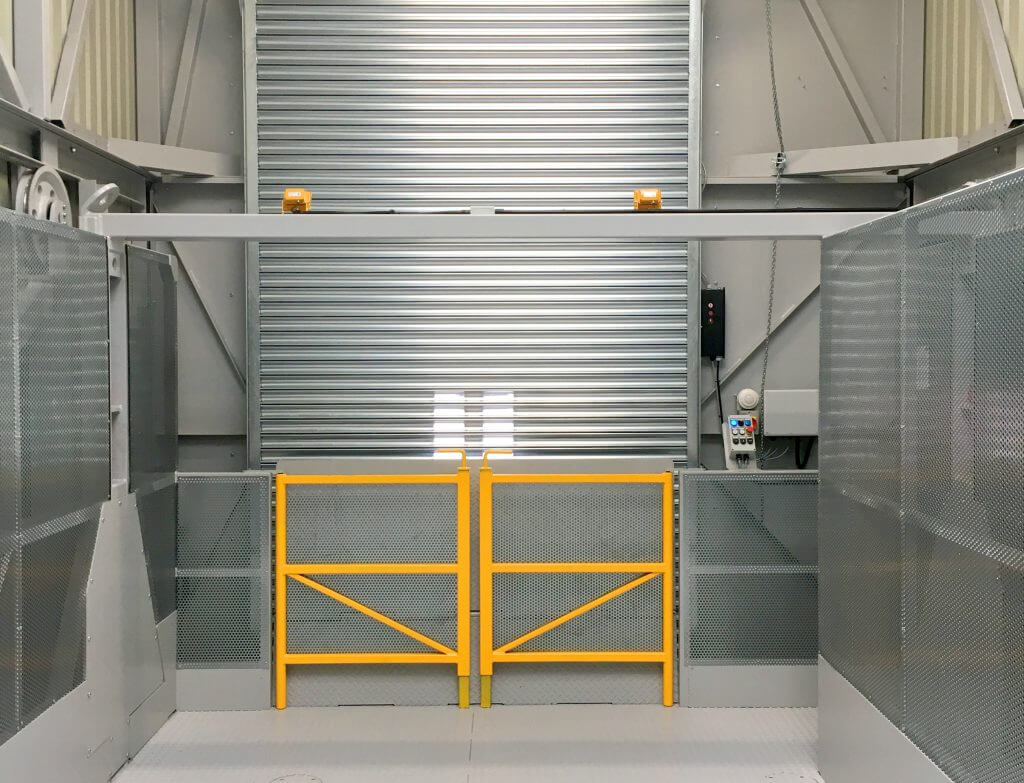

Integrated safety systems

Our loadhouse pods include fully interlocked and automated exclusion zones, traffic lights, interior lighting, loading lamps, segregated personnel walkway and (optionally) doors to give operators unrivalled safety

01 / 08

WHY TRANSDEK’S DOUBLE DECK LIFTS?

MODULAR

Surface mounted, plug and play units*; installed in 1-2 days; easily relocated

ENGINEERING STRENGTH

Rugged machines with precision ergonomics; built in the UK to last a lifetime

LOADING FLEXIBILITY

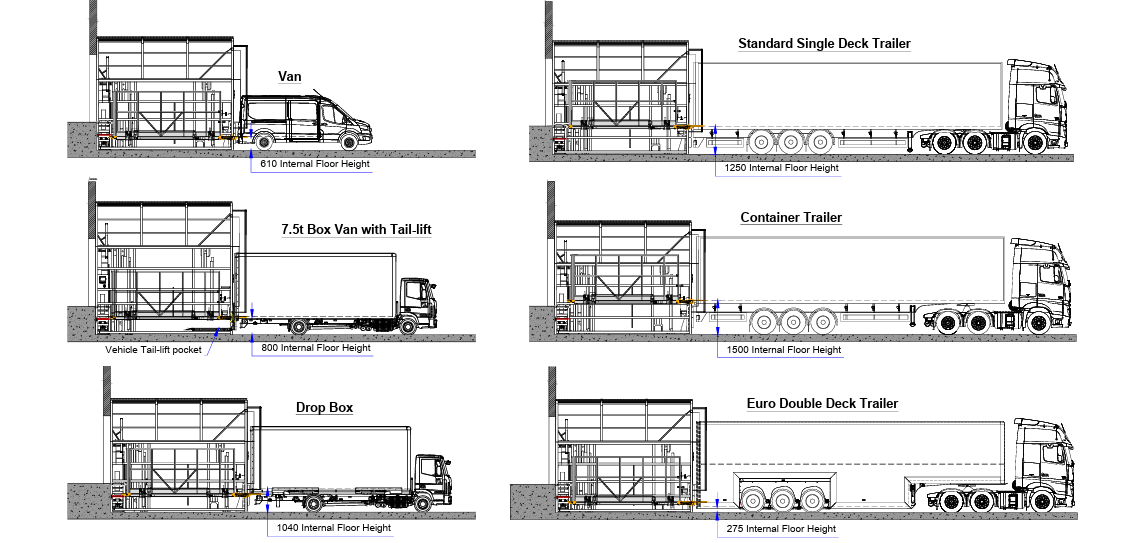

Efficient and secure loading of all double deck trailer types from raised docks. Also compatible with all other vehicle types

LOW-MAINTENANCE

Single, powerful ram design*; rapid-diagnostic technology*; remote troubleshooting

SAFETY

Advanced, standard-raising safety features; CE-marked, BS/EN standard and Machinery Directive 2006/42/EC conformity

SPEED

Lift speeds 2-3 x faster than scissor lifts; loads 5-10x faster than taillift; full trailer loaded in as little as 45 minutes

International Patents Granted and Applied. For details on Transdek’s patents, click here.

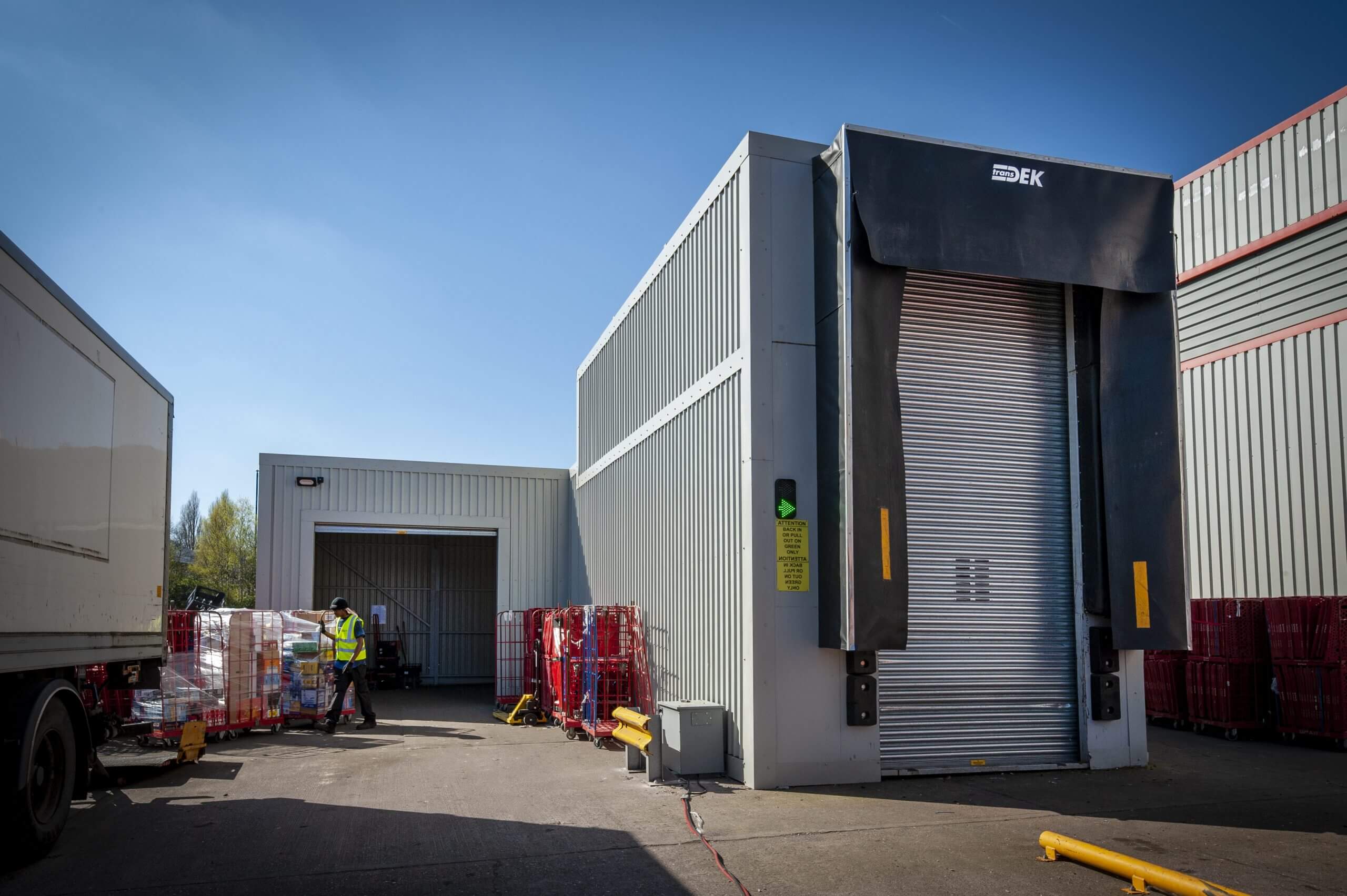

CASE STUDIES

Double Deck Lift Range

5 PALLETS

External Pod Dimensions

3920mm(w) x 5000mm (l) x 5650mm (h) – NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 3500mm (l) plus 500mm segregated personnel walkway

Load Capacity

5 industry pallets @ max. 1250kg each (or equiv.)

Lifting Capacity

6500kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

7 PALLETS

External Pod Dimensions

3920mm(w) x 6000mm (l) x 5650mm (h) – NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 4470mm (l) plus 500mm segregated personnel walkway

Load Capacity

7 industry pallets @ max. 860kg each (or equiv.)

Lifting Capacity

6000kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

8 PALLETS

External Pod Dimensions

3920mm(w) x 6500mm (l) x 5650mm (h) – NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 4970mm (l) plus 500mm segregated personnel walkway

Load Capacity

8 industry pallets @ max. 725kg each (or equiv.)

Lifting Capacity

5800kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

9 PALLETS

External Pod Dimensions

3920mm(w) x 7700mm (l) x 5650mm (h) – NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 5470mm (l) plus 500mm segregated personnel walkway

Load Capacity

9 industry pallets @ max. 550kg each (or equiv.)

Lifting Capacity

5500kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

12 PALLETS

External Pod Dimensions

3920mm(w) x 8500mm (l) x 5650mm (h) – NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 6900mm (l) plus 500mm segregated personnel walkway

Load Capacity

12 industry pallets @ max. 440kg each (or equiv.)

Lifting Capacity

5300kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

13 PALLETS

External Pod Dimensions

4120mm(w) x 10000mm (l) x 5650mm (h) – NB: roof height tailored to your application

Platform Footprint

2900mm (w) x 7600mm (l) plus 500mm segregated personnel walkway

Load Capacity

13 industry pallets @ max. 960kg each (or equiv.)

Lifting Capacity

12500kg UDL

Lift Range

300mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

18 PALLETS

External Pod Dimensions

3925mm(w) x 12000mm (l) x 5650mm (h) – NB: roof height tailored to your application

Platform Footprint

2705mm (w) x 9600mm (l)

Load Capacity

18 industry pallets @ max. 1100kg each (or equiv.)

Lifting Capacity

20000kg UDL

Lift Range

300mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

THE CASE FOR FIXED DOUBLE DECKING

The case for fixed double decking has never been stronger. The latest wedge-type fixed double deckers carry up 100% more load, compared to single deck equivalents, effectively halving distribution mileages, fuel consumption and CO2 emissions.

At the same time, fixed-deck wedges carry up to 40% more payload than stepframe powered-deck trailers, which are handicapped by both the extra weight of the onboard hydraulics and the balance of weight sitting over the rear axles (which tend to overload before the whole vehicle reaches maximum capacity). The extra payload generates mileage and operational cost savings of up to 29%. They also offer maintenance costs as much as 70% lower than powered deckers.

To find out how your operation, too, could benefit from fixed double decking, we would love to chat with you.

ENQUIRE NOW

TURNKEY PROJECT MANAGEMENT

Alongside our loading bay products, we offer a close working partnership to ensure you get exactly the right solutions to maximise safety and efficiency at each of your bays and sites, and across your entire distribution network.

We provide a one-stop shop that, depending on your loading bay needs, includes: consulting with your loaders, drivers, architects and managers; conducting site surveys and feasibility studies; submitting multiple CAD design options; loading compatibility trials; and customising your products.

Finally, our dedicated project management team will oversee each stage of in-house manufacture and installation, before training your team, commissioning the products and handing over the keys.

Find out More

FINANCE & RENTAL

We are able to provide a range of finance options for our customers, as an alternative to outright capital purchase. This flexibility makes the many benefits of our modular loading bay solutions even more accessible.

Bespoke finance packages can be arranged by our in-house finance team or via your preferred finance partner. We work with all major leasing providers, to offer equipment on:

Hire purchase, finance lease or short/long term operating lease.

CONTACT US

Double Deck LIFT ANCILLARIES & OPTIONS

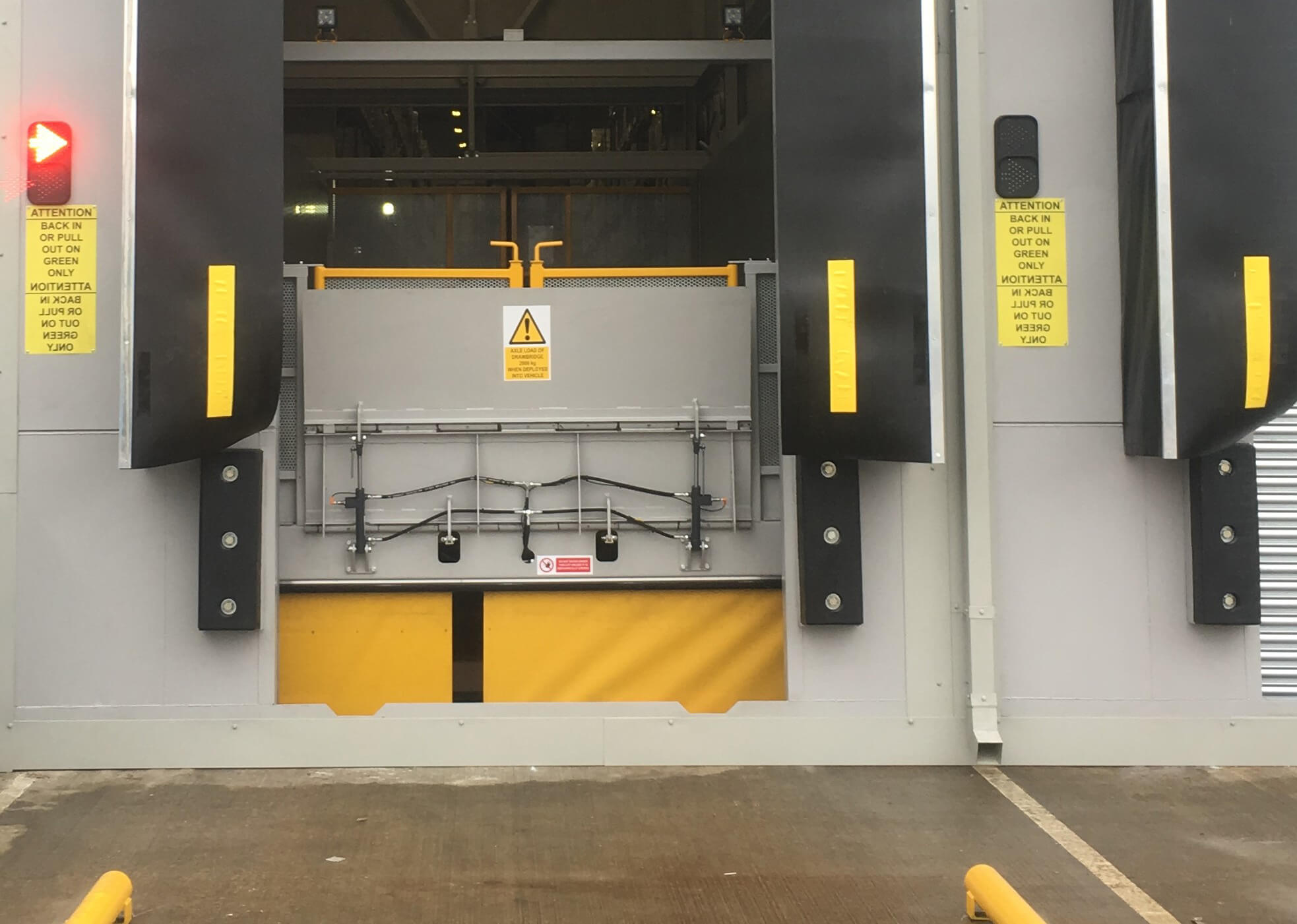

Heavy-Duty Bridge Plate

2000kg SWL for PPT use

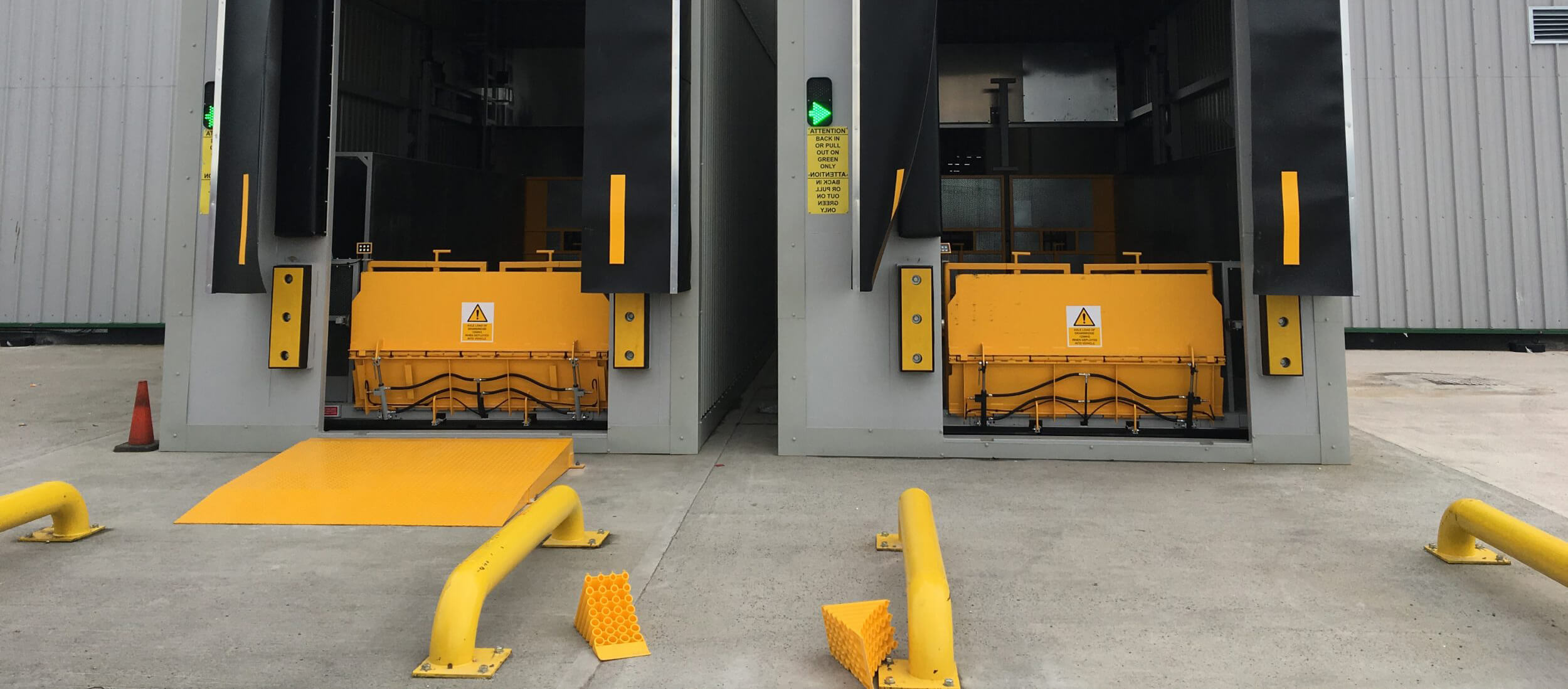

Bi-Fold Bridge Plate*

Safely open doors after docking

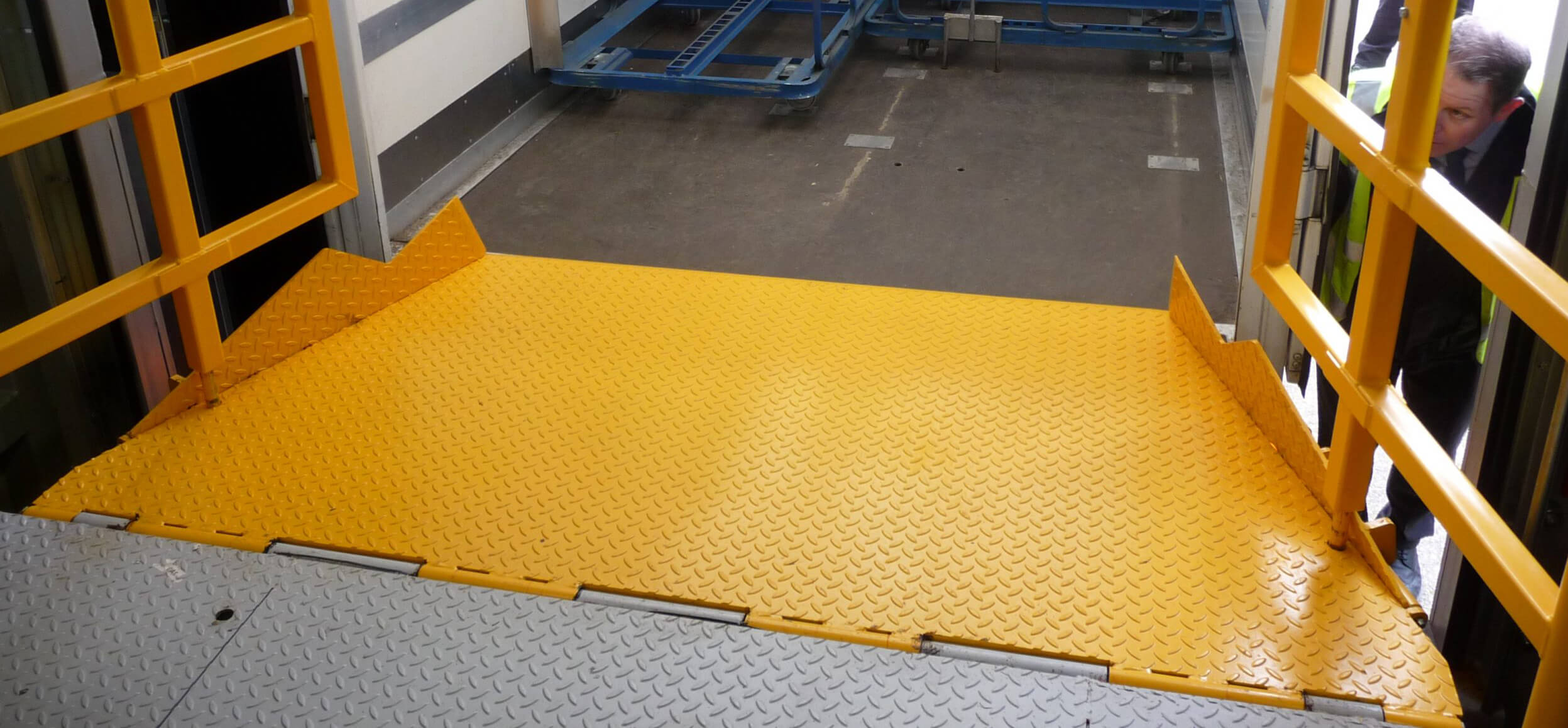

Vandango Bridge Plate

Flexible loading vans-to-artics

Wheel Guides

Aligns vehicles on dock

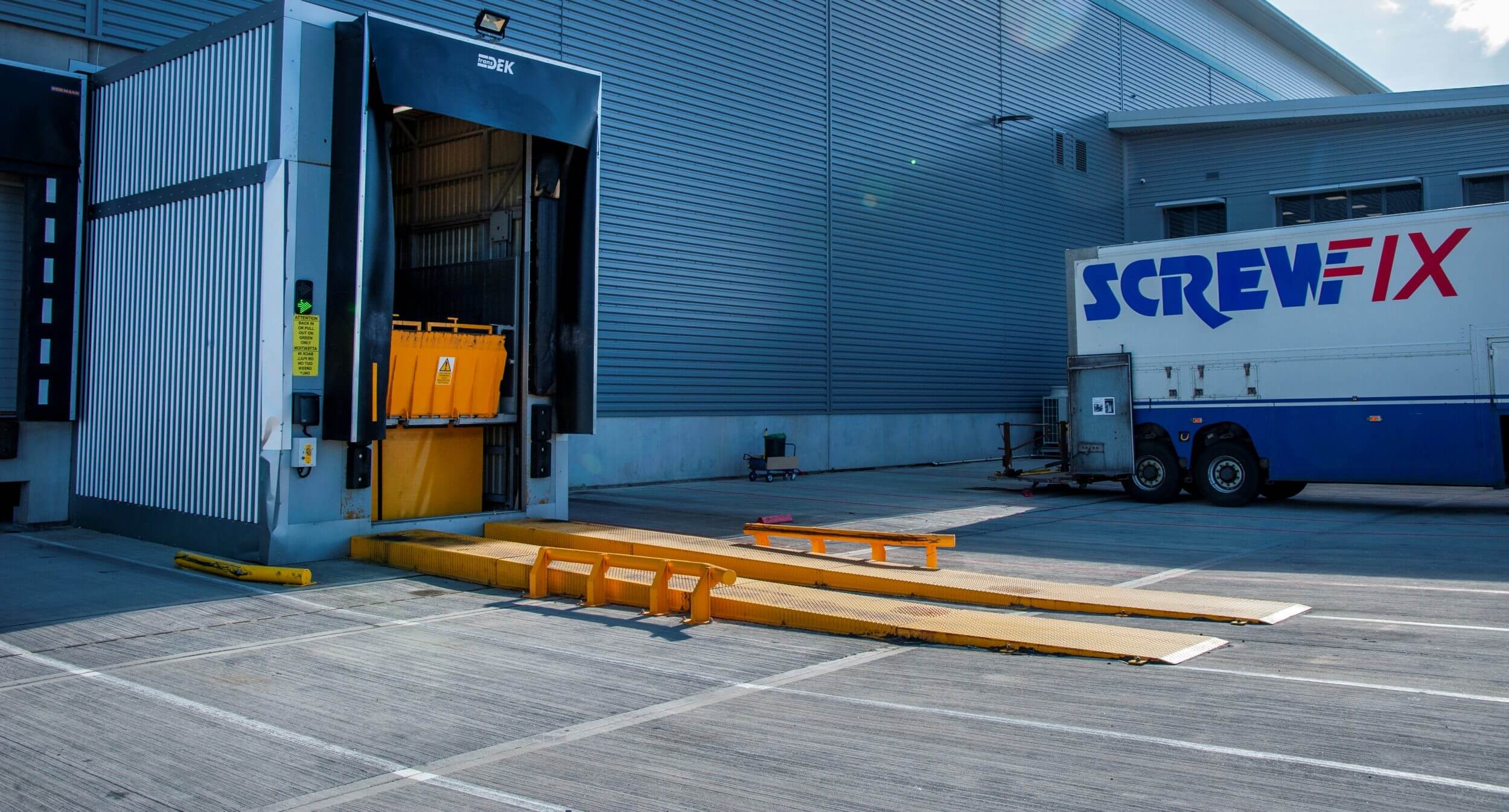

Vehicle Ramps

Accommodates yard gradients

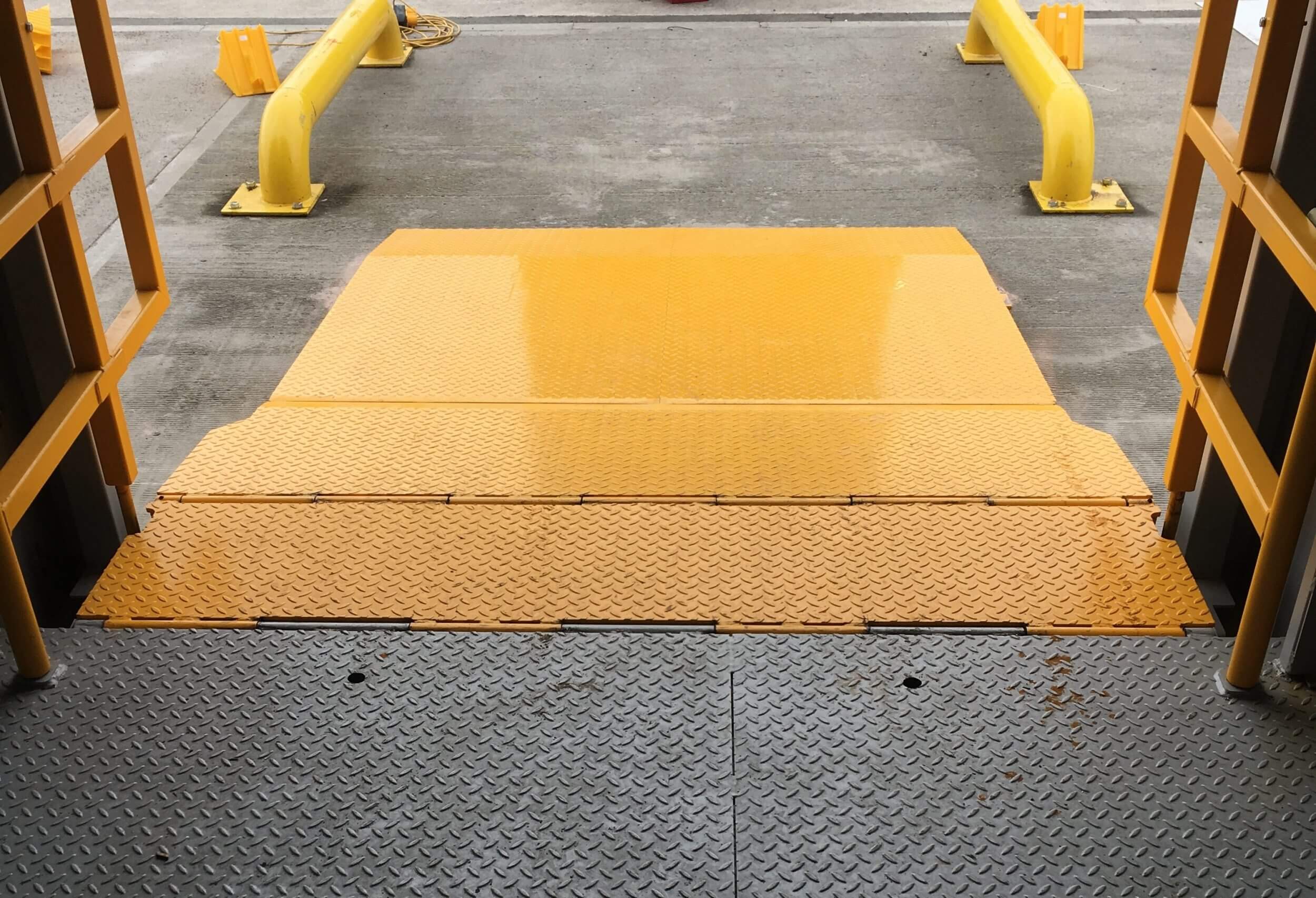

Run-Through Ramp

Dock-to-yard access

Roller Shutter Door

Cost-effective door option

Composite Panel Door

Insulated door option

Connect® Dock Management

Bespoke integrated IT software

Insulated Cladding

For temp-controlled operations

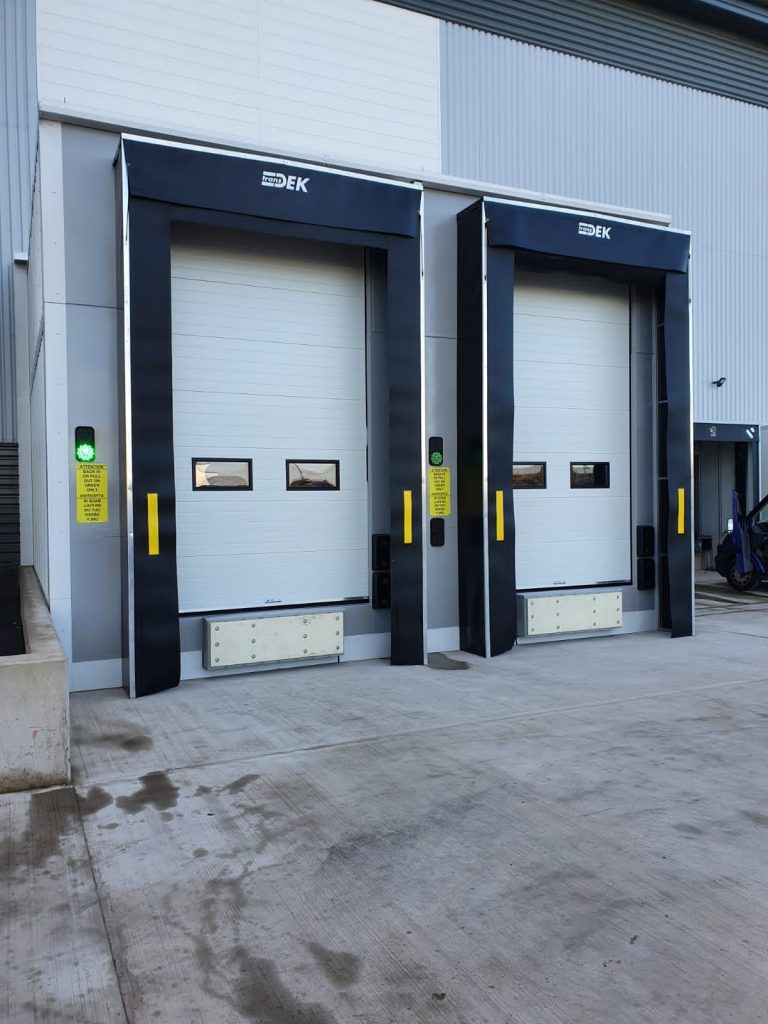

Inflatable Dock Shelter

Increases seal thermal integrity

Adjustable Dock Shelter

Flexi-loading DD trailers to vans

Taillift Pocket

Avoids taillift transformers

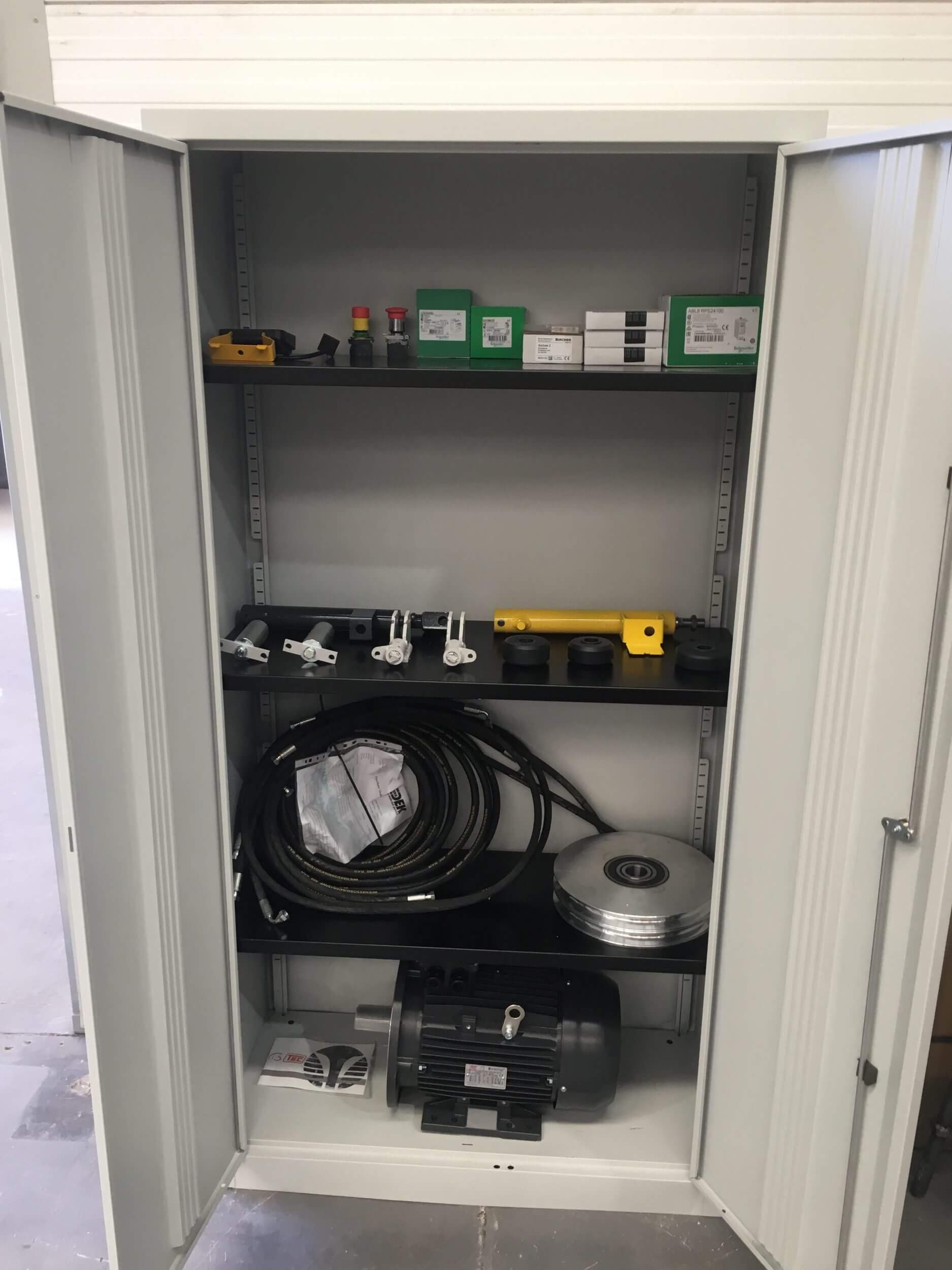

Critical Spares Package

Supports in-house maintenance

With their unique features the lifts are the ideal loading solution for our own innovative double deck trailers, which set new standards for the industry.

Logistics Project Facilitator at Arla

For double deck vehicle unloading, Transdek’s lifts are the best bit of equipment on the market and have significantly speeded up the unloading of delivery cages by providing a direct run-through to the bottom deck of our trailers.

DC Operations Manager at TJ Morris (Home Bargains)

The new lift has speeded up double deck unloading on our inbound operations significantly and given us an extra loading bay, which has allowed us to cope with increased traffic at the site.

Chief Executive at Fowler Welch

As a result of fitting the Transdek lifts, we’ve been able to half the loading time of our double deck trailers, as well as increasing safety for our loaders and drivers. Another major benefit for us is that the machines will comfortably service our changing fleet profile, as we switch to Transdek’s Wedge and other forms of double deck trailers to further increase our logistics efficiencies in the future.

Central Operations at Matalan

Each of the four loading bays was installed in less than 2 days with a very high level of professionalism.

Facilities Manager at Wincanton-Screwfix

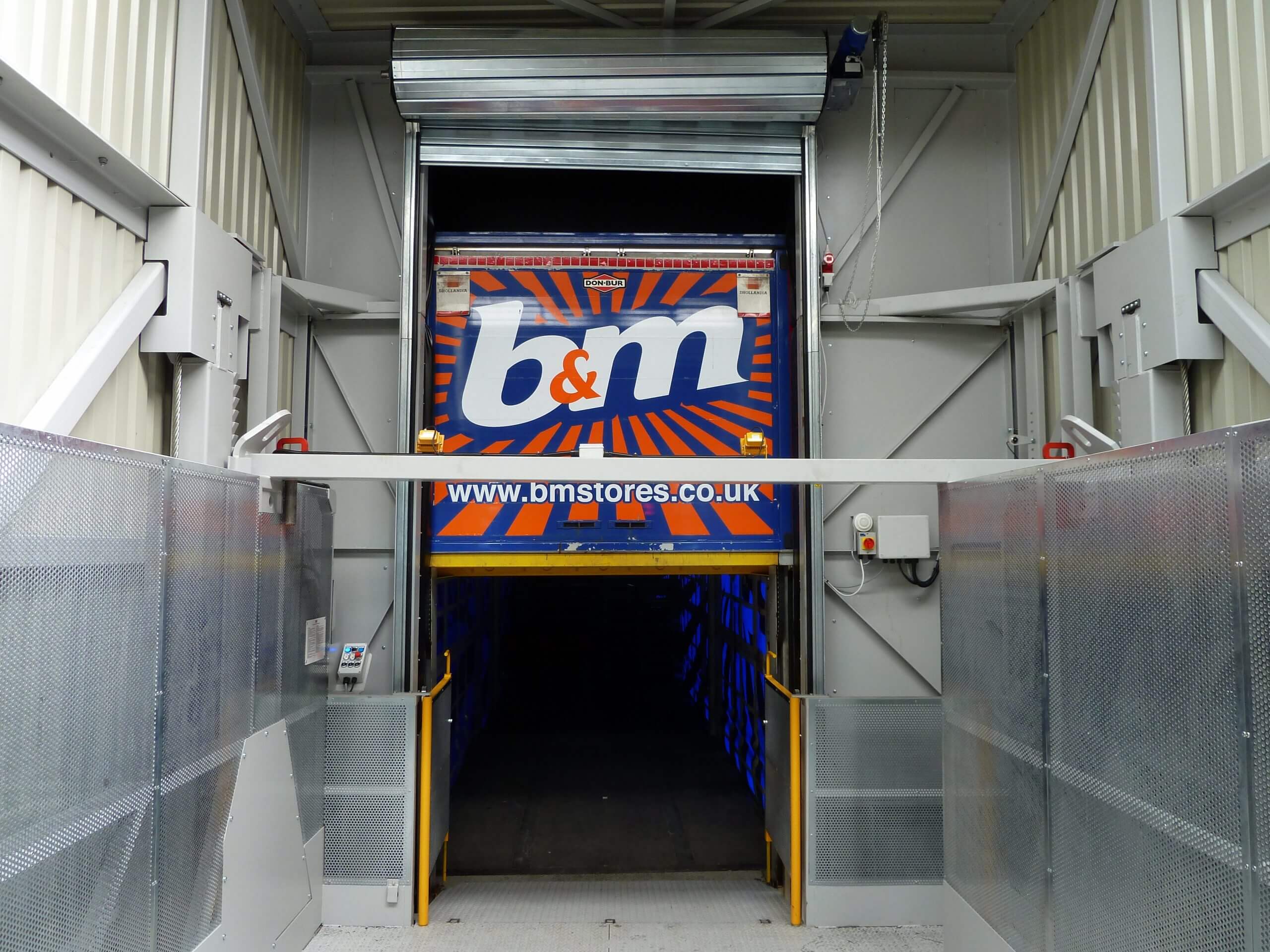

Transdek’s double deck lifts offer the perfect solution, meeting our requirements for both fast and safe loading. Transdek designed the system to achieve a direct loading capability onto the lower vehicle deck, significantly improving our loading speeds.
