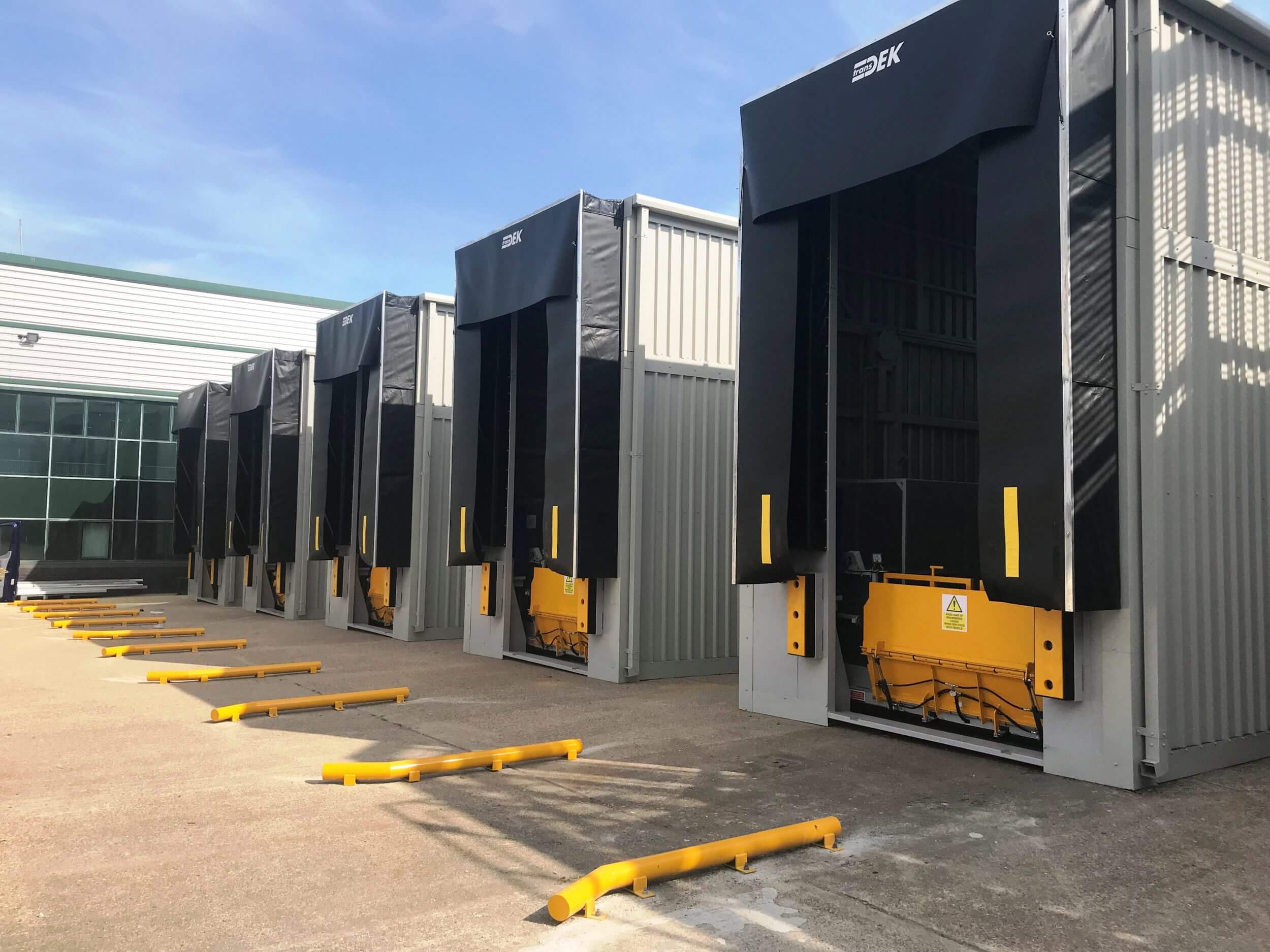

WAREHOUSE V2G scaled
amazon
Argos 1
Boots
Boyes 1
dhl logo new
Tesco logo
Fowler Welch Logo
Eddie Stobart
Albert Bartlett Feature
Xpo logo
ThomasRidley Logo Registered
Noble Foods
Mueller logo
arla logo rgb 300dpi
Screwfix
Booths
Blakemore Logistics29 thumb
spar logo 300x200 1
John Lewis
superdrug logo
Yodel
thompson morgan
Ocado1

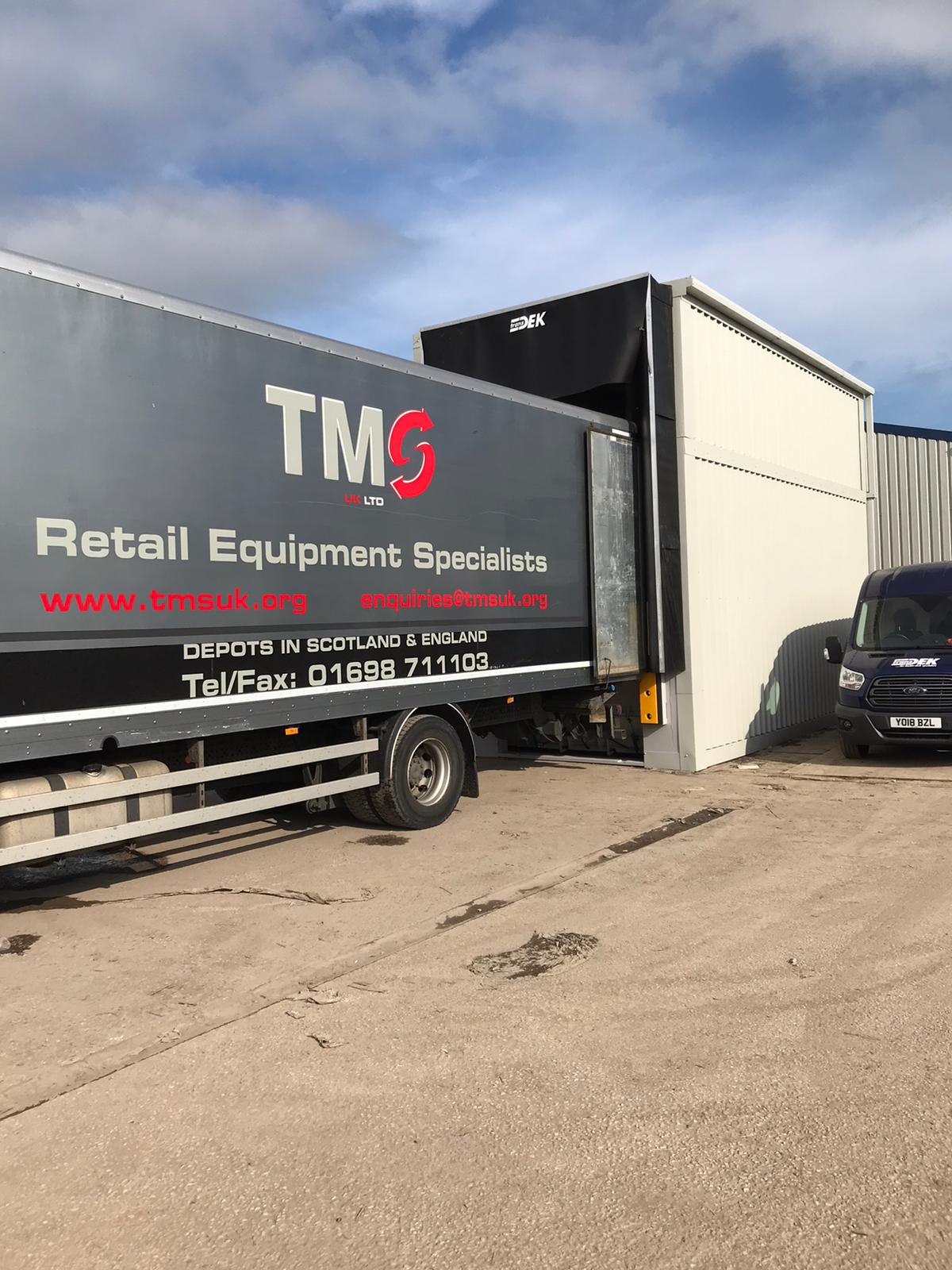

TMS Logo e1612972186953
RGB Blue Type Horz 1
Greencore logo

OUR VEHICLE-TO-GROUND (V2G) LOADING SOLUTIONS

Our range of V2G Yard Lifts provides you with an instant, plug-and-play solution* to un/load all goods vehicle types – from the tallest double deck artics to dot.com vans – at level-access sites.

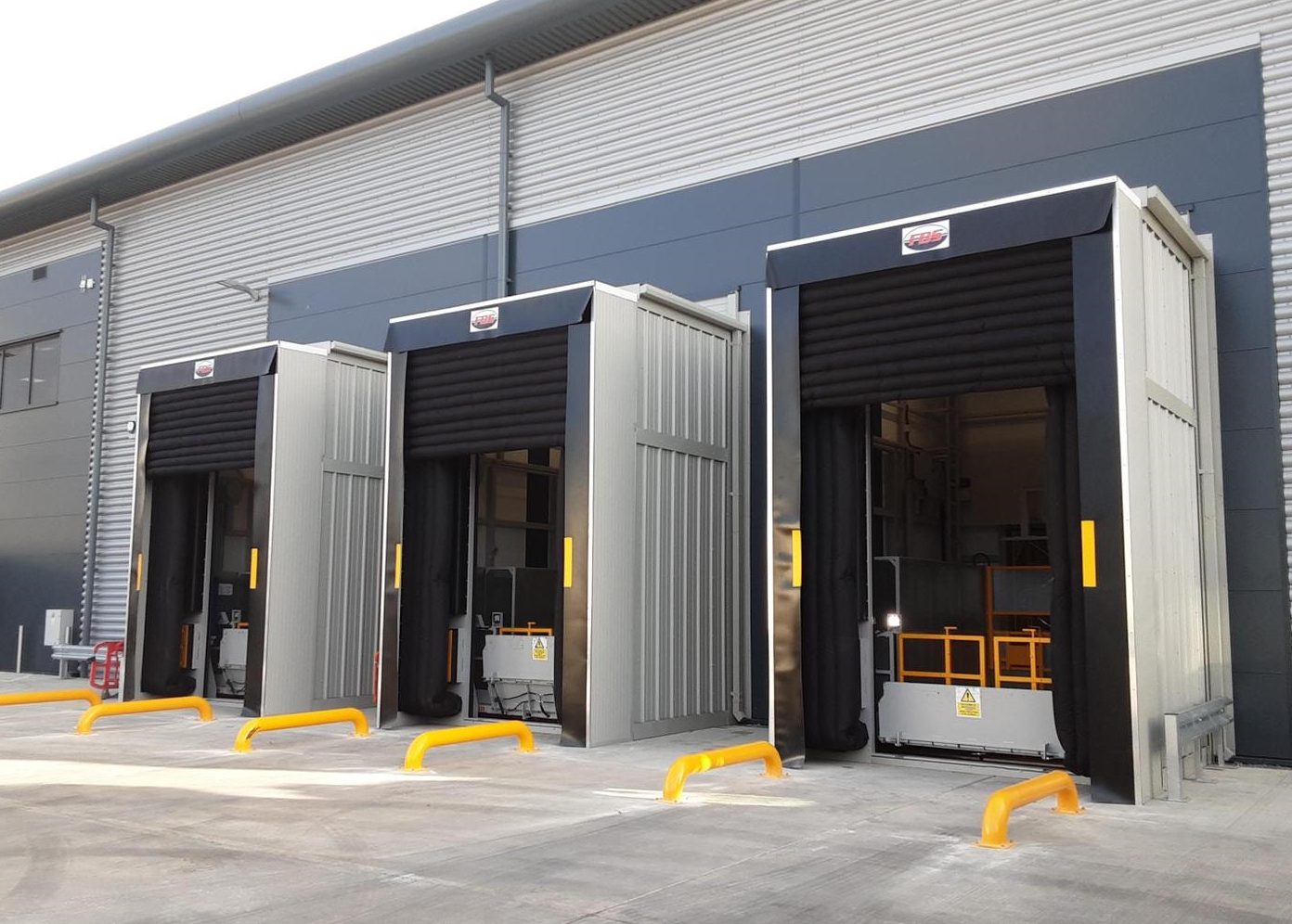

Each surface-mounted, modular loadhouse pod* is fitted directly on to your yard or warehouse floor, typically in ½ – 1 day. Sealed to the warehouse front, the V2G offers a fast, safe, secure and (optionally) temperature-controlled loading environment – a proven alternative to forklift and taillift loading.

The V2G’s unique hydraulics configuration* and extended lift stroke make it the only pit-free lift on the market that can load all goods vehicles to/from ground level. Combining rugged engineering, unrivalled ergonomic and safety features, a simplified hydraulics design and rapid-diagnostic technology*, our V2G’s are built to give you a lifetime of reliable, low-maintenance service.

Enquire Now Download Brochure

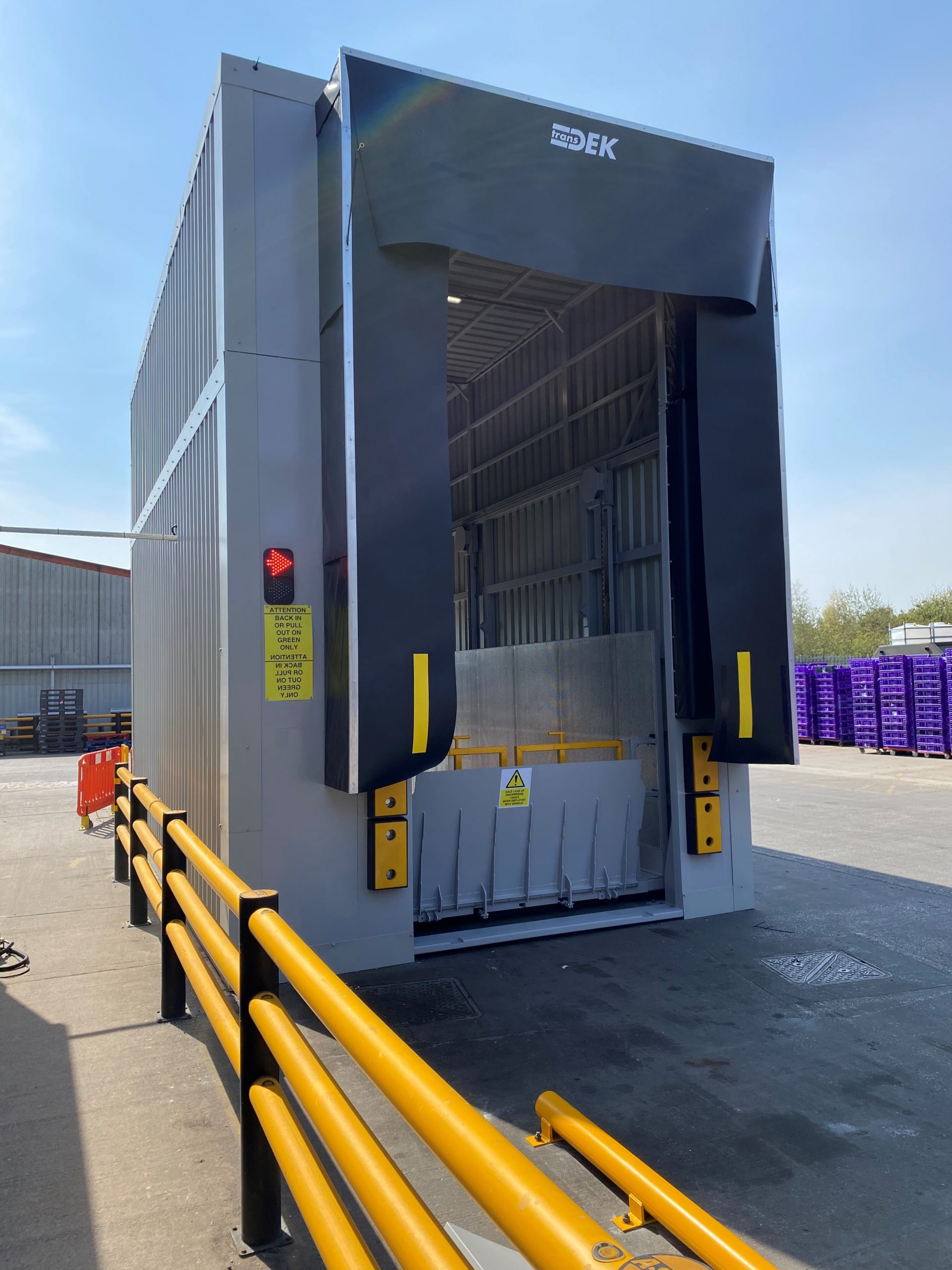

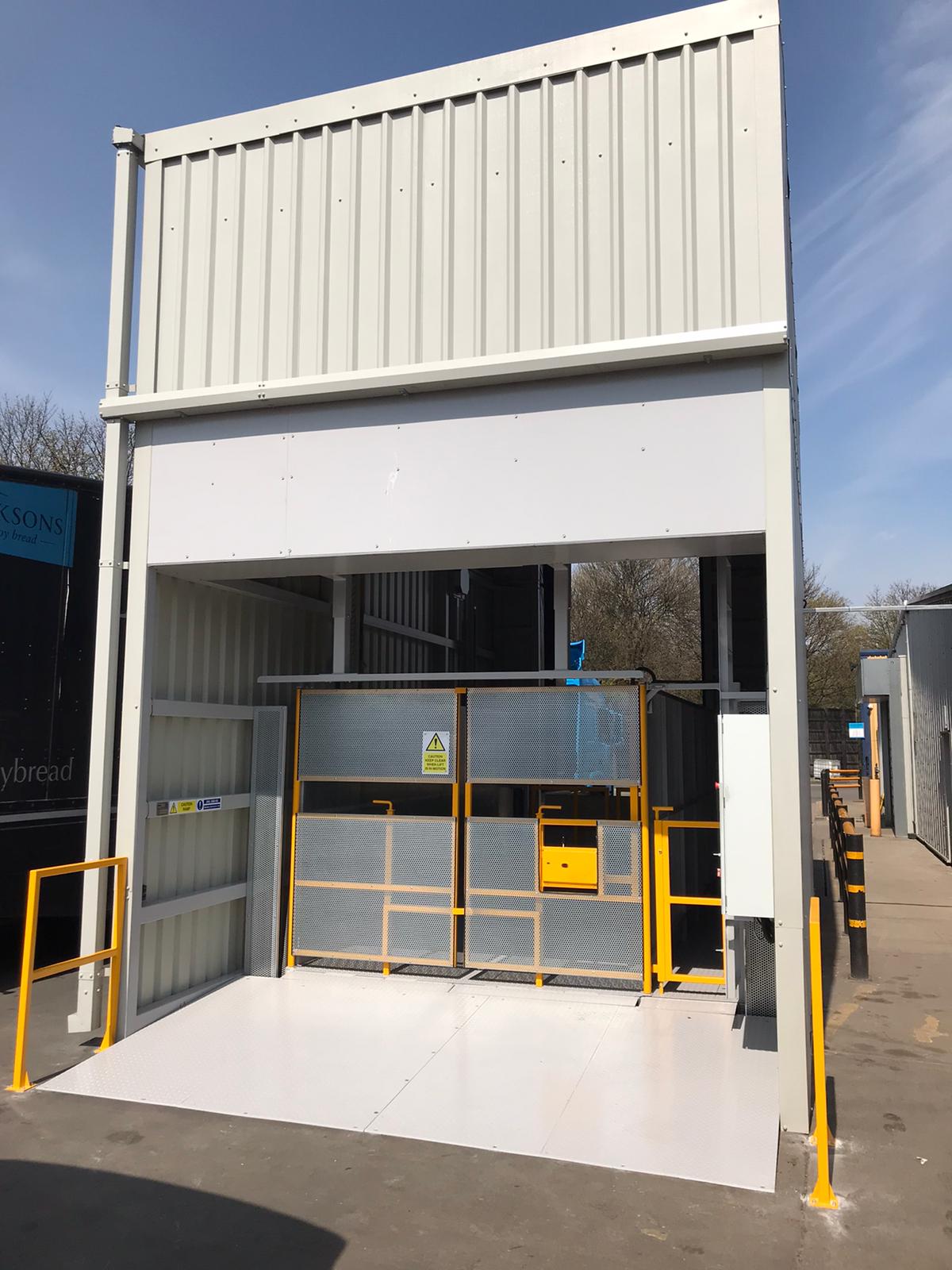

rear view of V2G 2

V2G Lift Features

1 Modulara

Modular, plug-and-play design*

Pre-clad, pre-tested, surface-mounted units are fitted straight on to the yard or warehouse floor in 1-2 days – minimises cost and disruption of install. Easily moved, if required – avoids dilapidation charges and write-off/re-purchase costs

2 2 section loadhouse

Two-section loadhouse*

Transported as roof and base modules that are simply bolted together onsite. The loadhouse is fixed to the ground and warehouse front to provide a sealed and optionally temperature-controlled loading environment

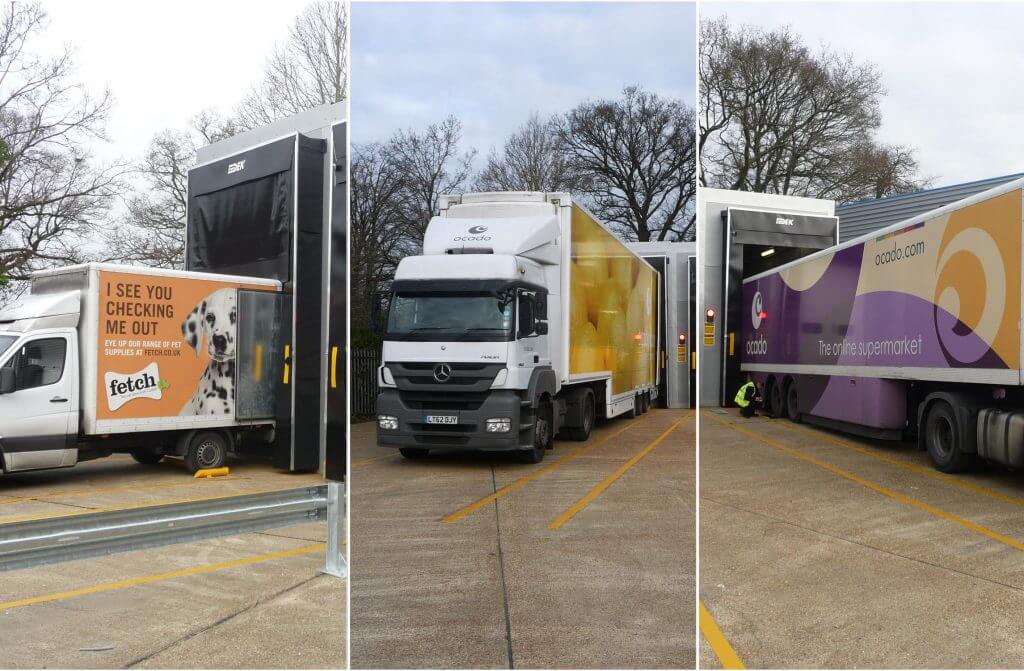

3 Single ram

Single-ram hydraulics*

Simple, low-maintenance design (compared to scissor lifts’ 2 to 16 rams). Lift stroke compatible with loading all vehicles to/from ground level – from double deckers to home delivery vans

4 Stress Engineered

Structurally-engineered loadhouse

Loadhouse and lift structure engineered for durable, lifetime operation in rugged logistics environments. Integrated dock bumpers and impact-dispersal system minimise potential damage from reversing vehicles

5 Rugged Platform scaled

Rugged lift platforms

High point-load lift platforms engineered to withstand MHE operations for the fastest loading. Lifting mechanisms also give 2-3 times faster raise/lower speed than scissor lifts

6 HMI controls scaled

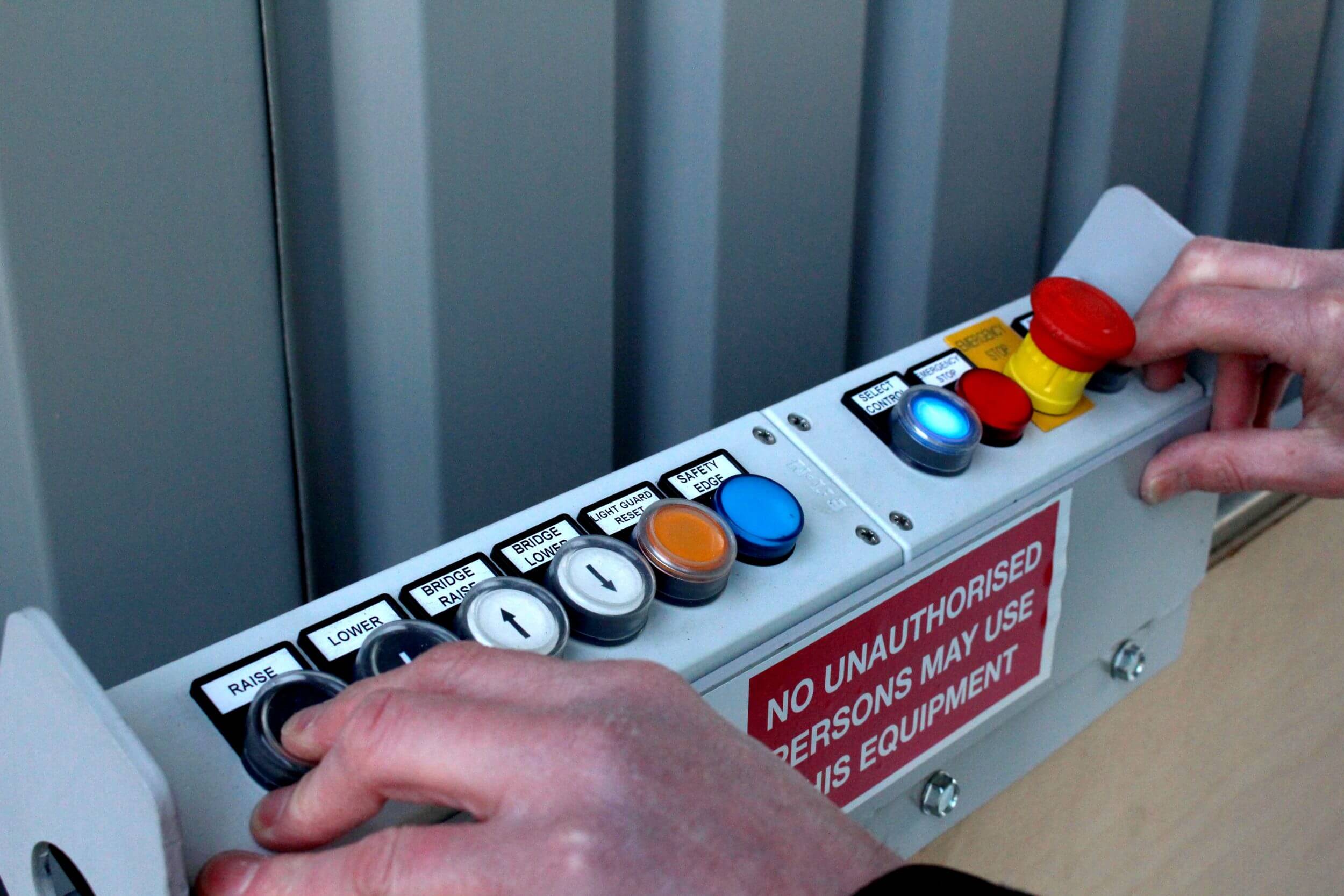

HMI touchscreen controls*

Technologically-advanced main control panel provides rapid-diagnostics pictogram for fast, simple self-fix, which minimises downtime. Mobile login option further reduces call-out costs and enables remote troubleshooting

7 Gates scaled

Twin-interlocked safety gates

Front and rear material gates are both electrically and mechanically interlocked. The front gates lock out to provide safety rails along the side of the bridge plate

8 Safety scaled

Integrated safety systems

Our loadhouse pods include fully interlocked and automated exclusion zones, traffic lights, interior lighting, loading lamps, segregated personnel walkway and (optionally) doors to give operators unrivalled safety

01 / 08

WHY TRANSDEK’S V2G YARD LIFTS?

MODULAR

Surface mounted, plug and play units*; installed in ½ – 1 day; easily relocated

ENGINEERING STRENGTH

Rugged machines with precision ergonomics; built in the UK to last a lifetime

LOADING FLEXIBILITY

Efficient and secure loading of all goods vehicle types to/from ground level. Unique hydraulics configuration for multi-vehicle flexibility

LOW-MAINTENANCE

Single, powerful ram design*; rapid-diagnostic technology*; remote troubleshooting

SAFETY

Advanced, standard-raising safety features; CE-marked, BS/EN standard and Machinery Directive 2006/42/EC conformity

SPEED

Lift speeds 2-3 x faster than scissor lifts; loads 4-5x faster than taillift

V2G Yard Lift Range

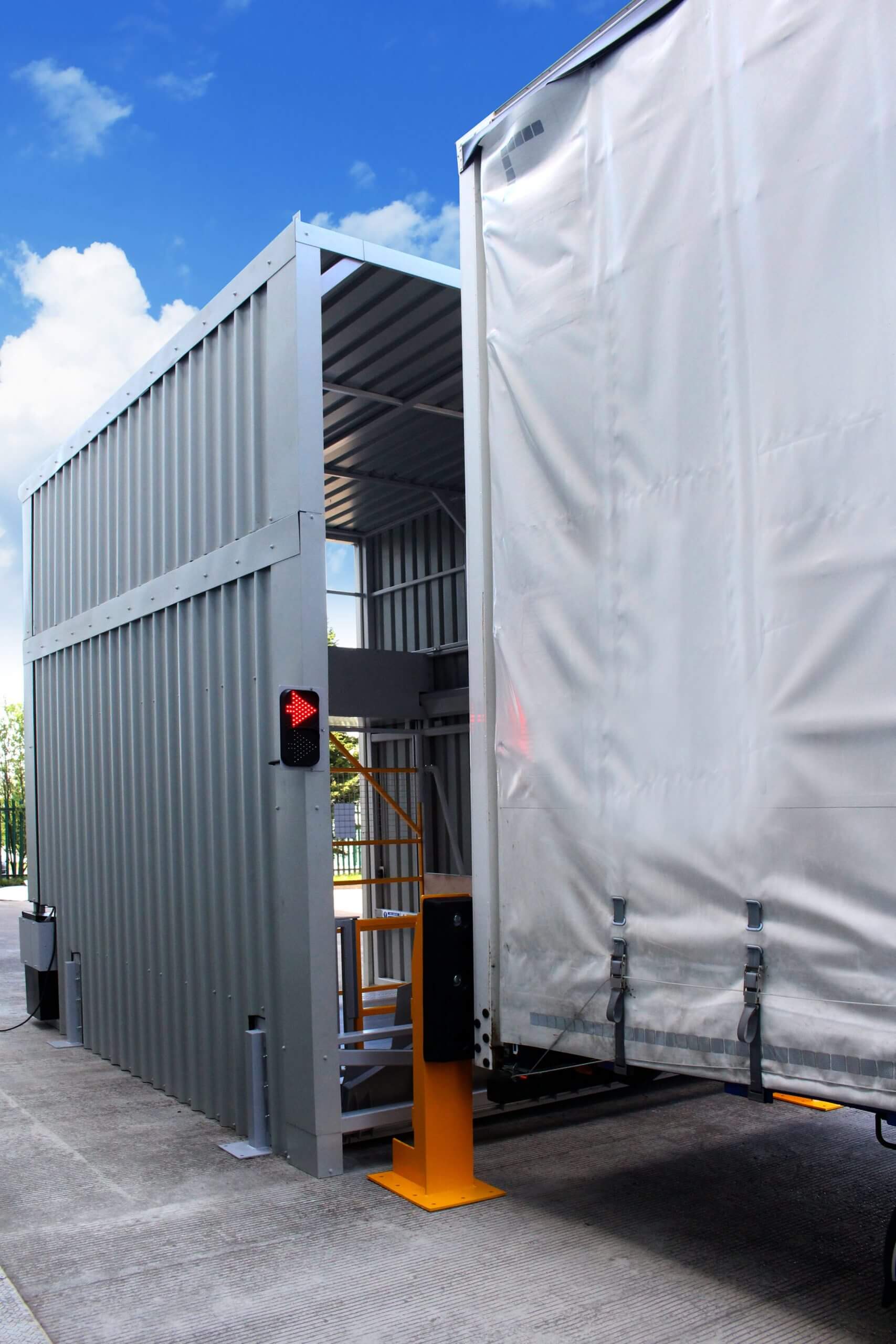

4 Pallets

External Pod Dimensions

3727mm(w) x 4872mm (l) x 3230mm (h) (excl. roof module)
4628mm (h) with roof
4128mm (h) with Euro-spec roof

Platform Footprint

2600mm (w) x 3170mm (l) – (6 pallets)

Load Capacity

4 industry pallets plus operator and hand pallet truck (or roll cage equivalent)

Lifting Capacity

4000kg UDL raise/lower

Lift Range

Ground to 1600mm

Lift Speed

80mm/s raise/lower

5 Pallets

External Pod Dimensions

3920mm(w) x 5700mm (l) x 5650mm (h)
NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 3500mm (l)
plus 500mm segregated personnel walkway

Load Capacity

5 industry pallets @ max. 1250kg each (or equiv.)

Lifting Capacity

6500kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

7 PALLETS

External Pod Dimensions

3920mm(w) x 6700mm (l) x 5650mm (h)
NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 4470mm (l)
plus 500mm segregated personnel walkway

Load Capacity

7 industry pallets @ max. 860kg each (or equiv.)

Lifting Capacity

6000kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

8 PALLETS

External Pod Dimensions

3920mm(w) x 7200mm (l) x 5650mm (h)
NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 4970mm (l)
plus 500mm segregated personnel walkway

Load Capacity

8 industry pallets @ max. 725kg each (or equiv.)

Lifting Capacity

5800kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

9 PALLETS

External Pod Dimensions

3920mm(w) x 8400mm (l) x 5650mm (h)
NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 5470mm (l)
plus 500mm segregated personnel walkway

Load Capacity

9 industry pallets @ max. 550kg each (or equiv.)

Lifting Capacity

5500kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

12 PALLETS

External Pod Dimensions

3920mm(w) x 9200mm (l) x 5650mm (h)
NB: roof height tailored to your application

Platform Footprint

2500mm (w) x 6900mm (l)
plus 500mm segregated personnel walkway

Load Capacity

12 industry pallets @ max. 440kg each (or equiv.)

Lifting Capacity

5300kg UDL

Lift Range

150mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

13 PALLETS

External Pod Dimensions

4120mm(w) x 10000mm (l) x 5650mm (h)
NB: roof height tailored to your application

Platform Footprint

2900mm (w) x 7600mm (l)
plus 500mm segregated personnel walkway

Load Capacity

13 industry pallets @ max. 960kg each (or equiv.)

Lifting Capacity

12500kg UDL

Lift Range

300mm to 3125mm above ground level

Lift Speed

100mm/s raise/lower

V2G ANCILLARIES & OPTIONS

Heavy Duty bridge plate 2000kg

Heavy-Duty Bridge Plate

2000kg SWL for PPT use
bi fold bridge plate 2500x1875 1

Bi-Fold Bridge Plate*

Safely open doors after docking
vandango 2500x1875 1

Vandango Bridge Plate

Flexible loading vans-to-artics
Wheel Guides 3 scaled

Wheel Guides

Aligns vehicles on dock
Vehicle Ramps scaled

Vehicle Ramps

Accommodates yard gradients
Run Through scaled

Run-Through Ramp

Dock-to-yard access
roller shutter door scaled

Roller Shutter Door

Cost-effective door option
composite door scaled

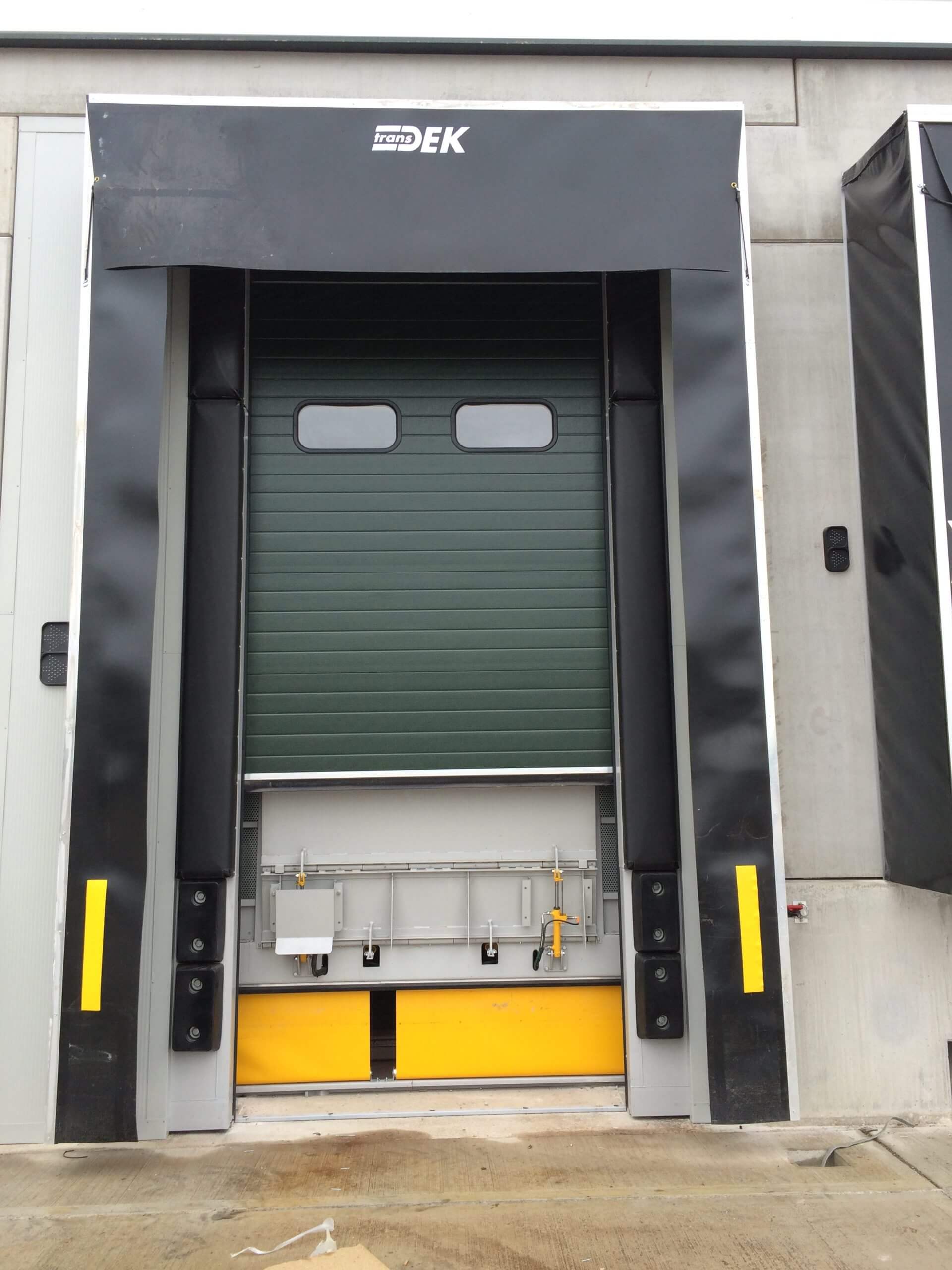

Composite Panel Door

Insulated door option
connect scaled

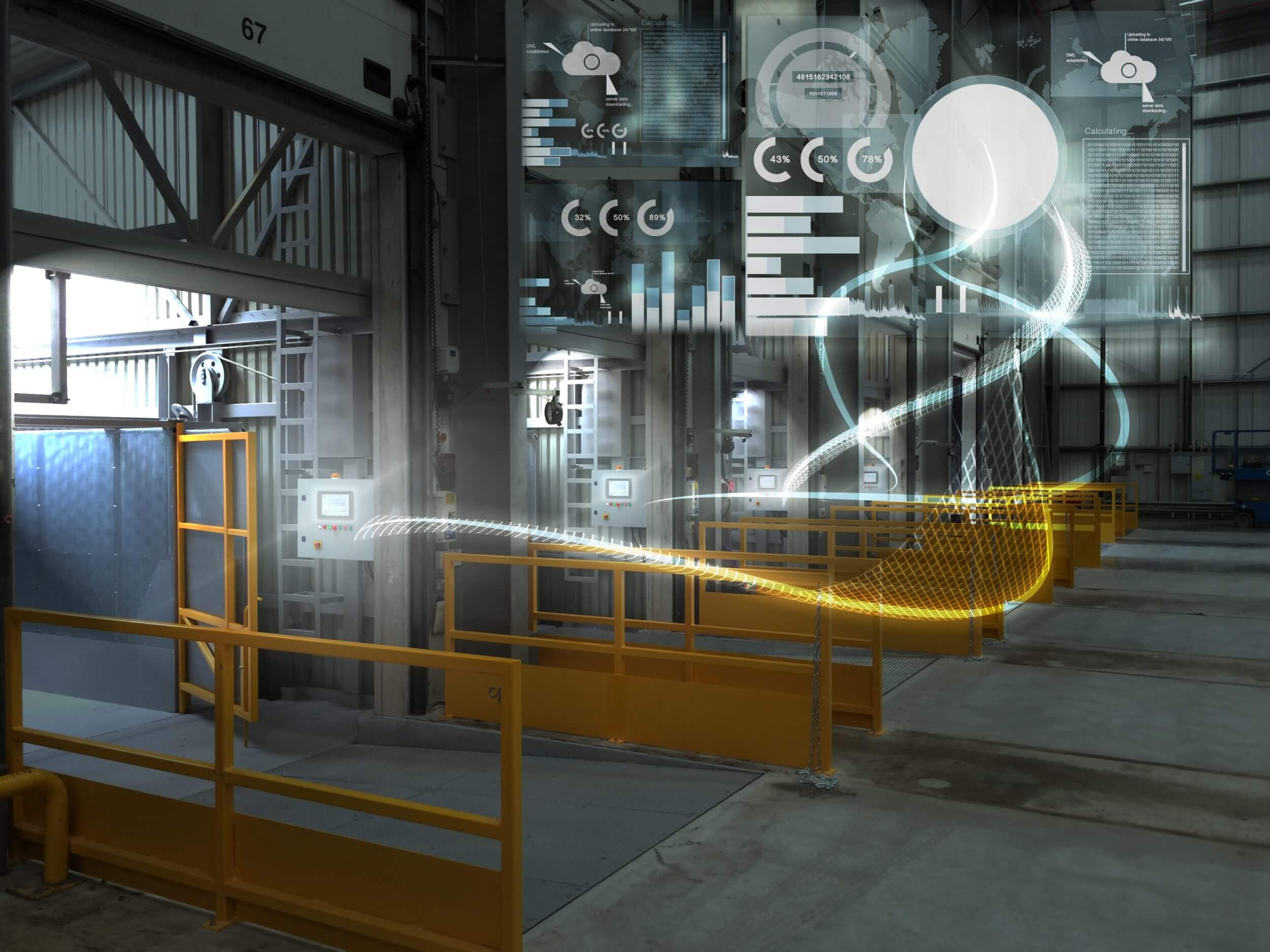

Connect® Dock Management

Bespoke integrated IT software
insulated scaled

Insulated Cladding

For temp-controlled operations
inflatable dock shelter scaled

Inflatable Dock Shelter

Increases seal thermal integrity
adjustable dock shelter scaled

Adjustable Dock Shelter

Flexi-loading DD trailers to vans
critical spares 1 2500x1875 1 rotated

Critical Spares Package

Supports in-house maintenance

FINANCE & RENTAL

We are able to provide a range of finance options for our customers, as an alternative to outright capital purchase. This flexibility makes the many benefits of our modular loading bay solutions even more accessible.

Bespoke finance packages can be arranged by our in-house finance team or via your preferred finance partner. We work with all major leasing providers, to offer equipment on:

Hire purchase, finance lease or short/long term operating lease.

Enquire Now
finance

CASE STUDIES

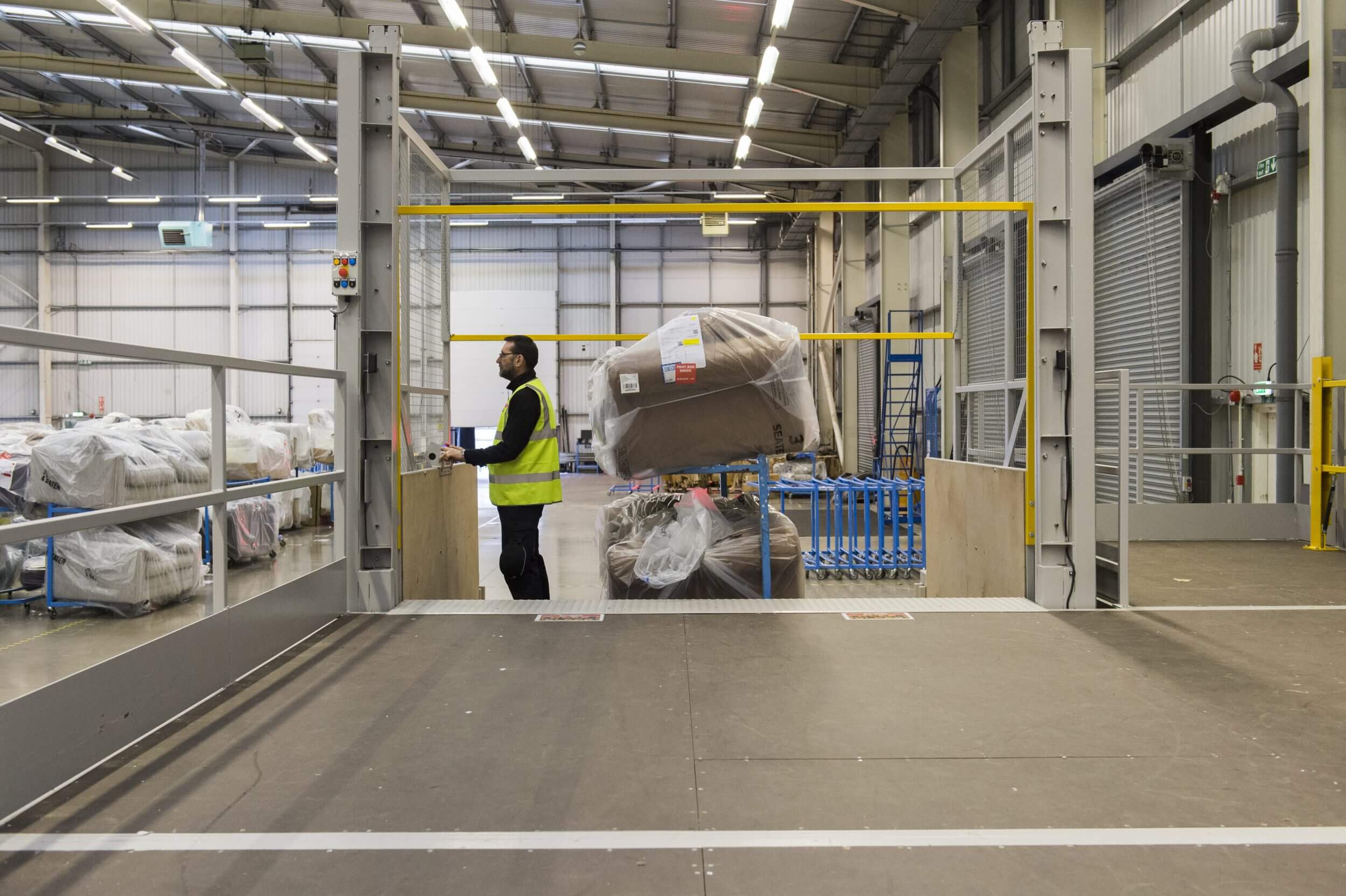

Transdek Glasgow 045 scaled

Transdek’s V2G lifts have significantly enhanced our warehouse productivity and increased logistics efficiency. With their engineering and manufacturing expertise, Transdek’s solution more than meets our current and future needs.

Maintenance Manager at Boyes

Speed of converting the loading bays for double deck loading was critical to the success of the plan, with most back-of-stores having only one or two loading bays.

Fresh Stream Transport Manager at Tesco

Not only that, their V2G pod is fitted with a large number of safety features that give our loaders the best possible level of protection while they work.

General Manager at A.F. Blakemore SPAR

Transdek has provided a one-stop supply chain solution approach, which improves our existing infrastructure and has resulted in a highly efficient, fully integrated loading and distribution model that can adapt as our business expands in the future.

Distribution Manager at Thomas Ridley Foodservice

The new extension with V2G lift has significantly improved our operational efficiency and can easily handle our planned growth.

Plant Operations Manager at Noble Foods
